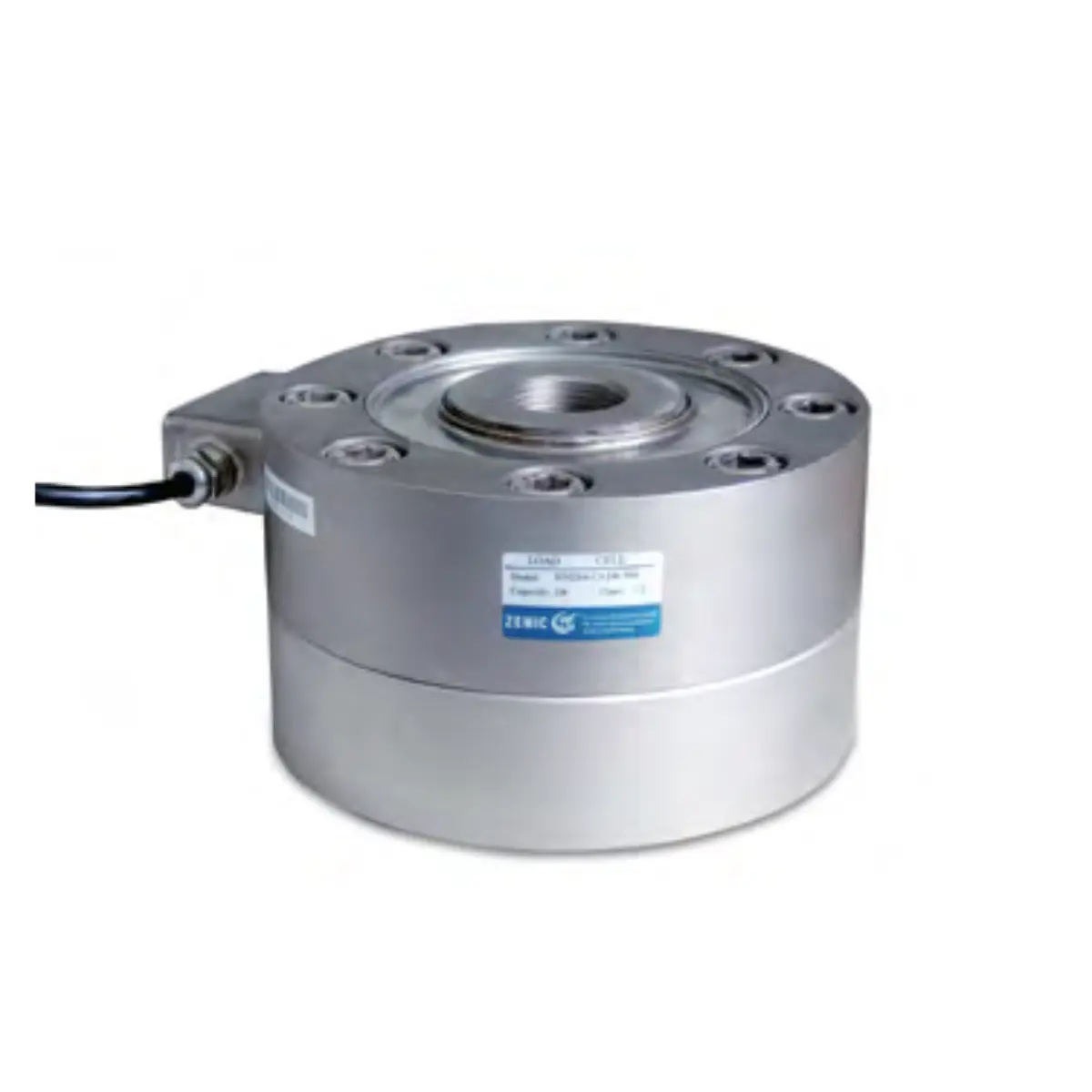

Discover the Best Load Cell Sensor for weighing systems

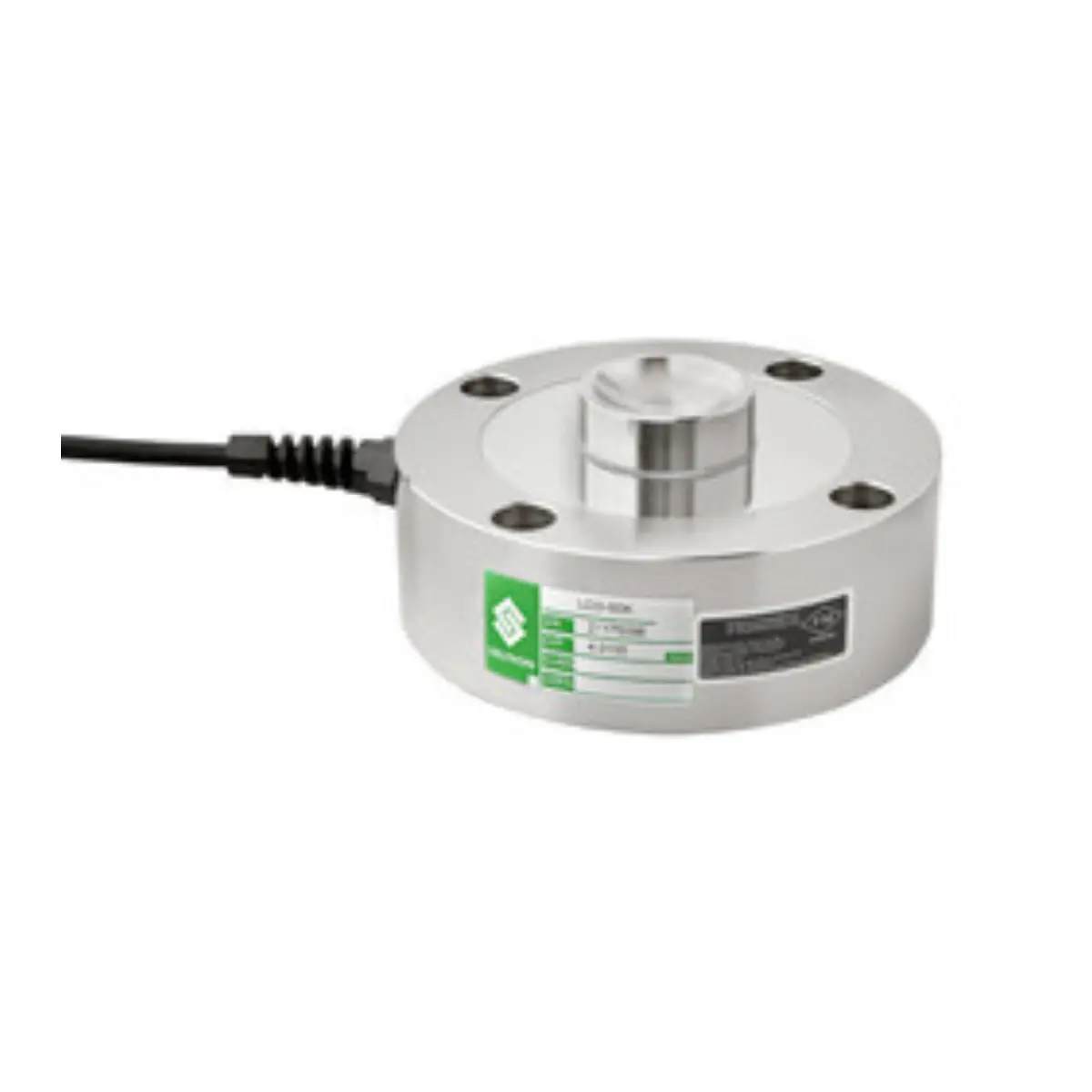

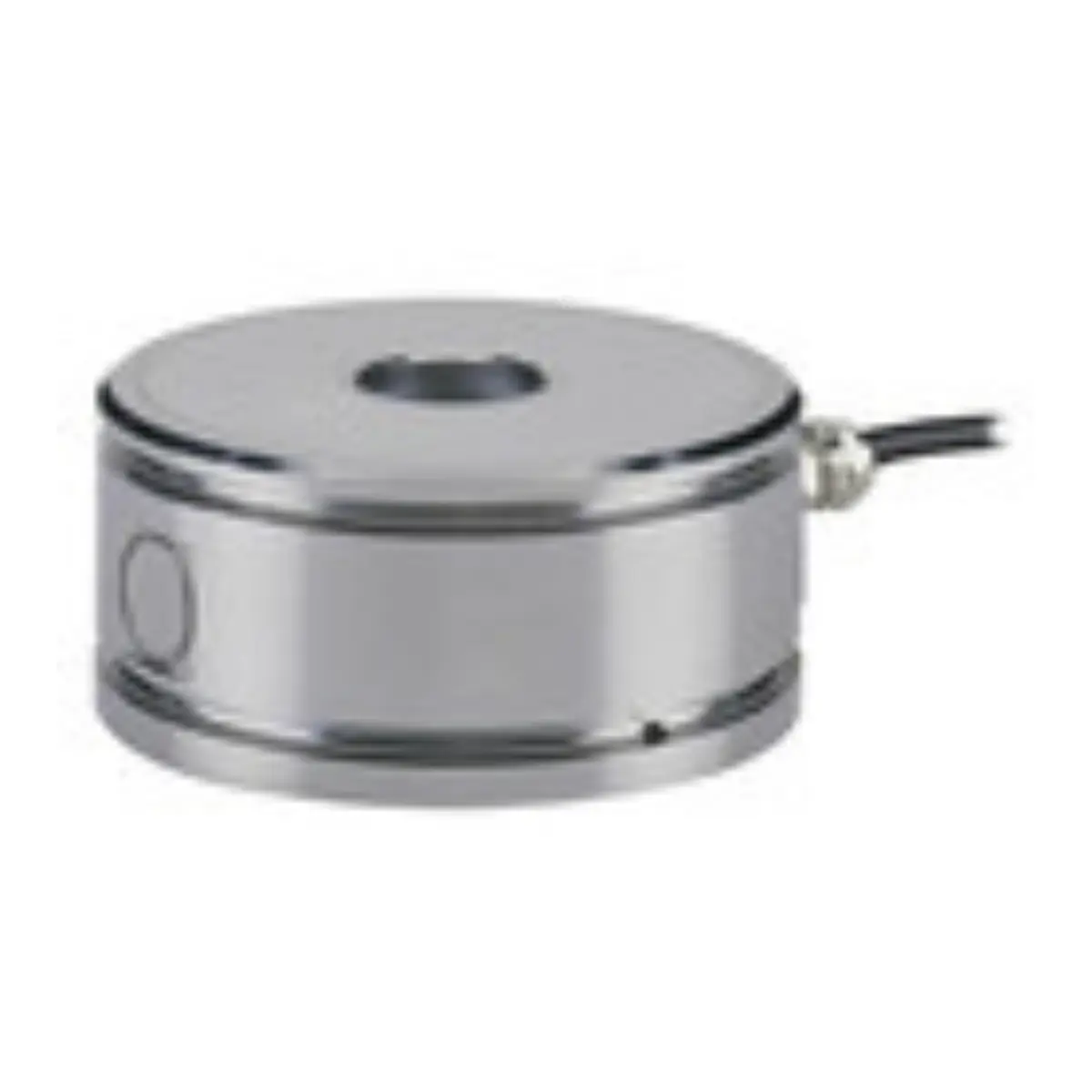

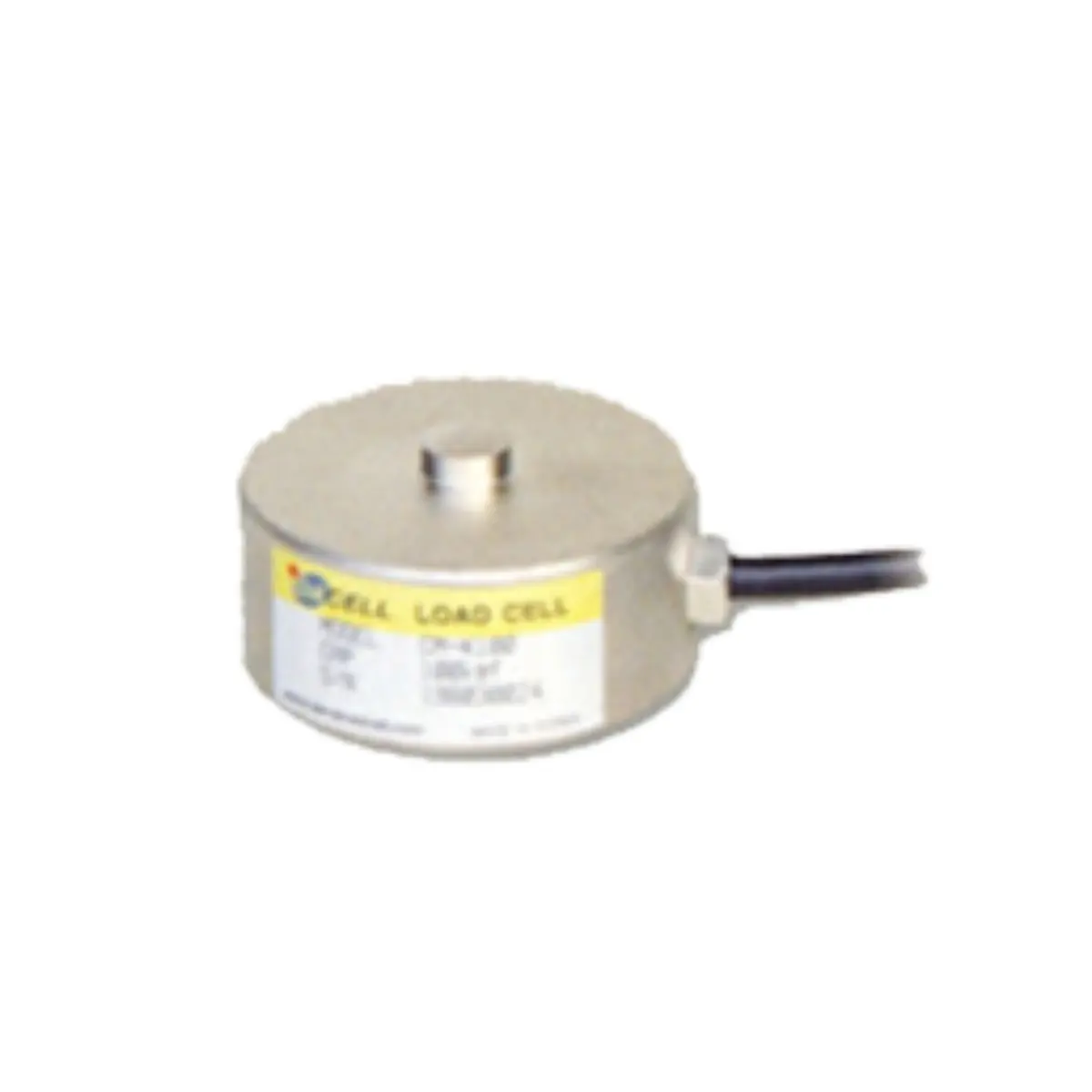

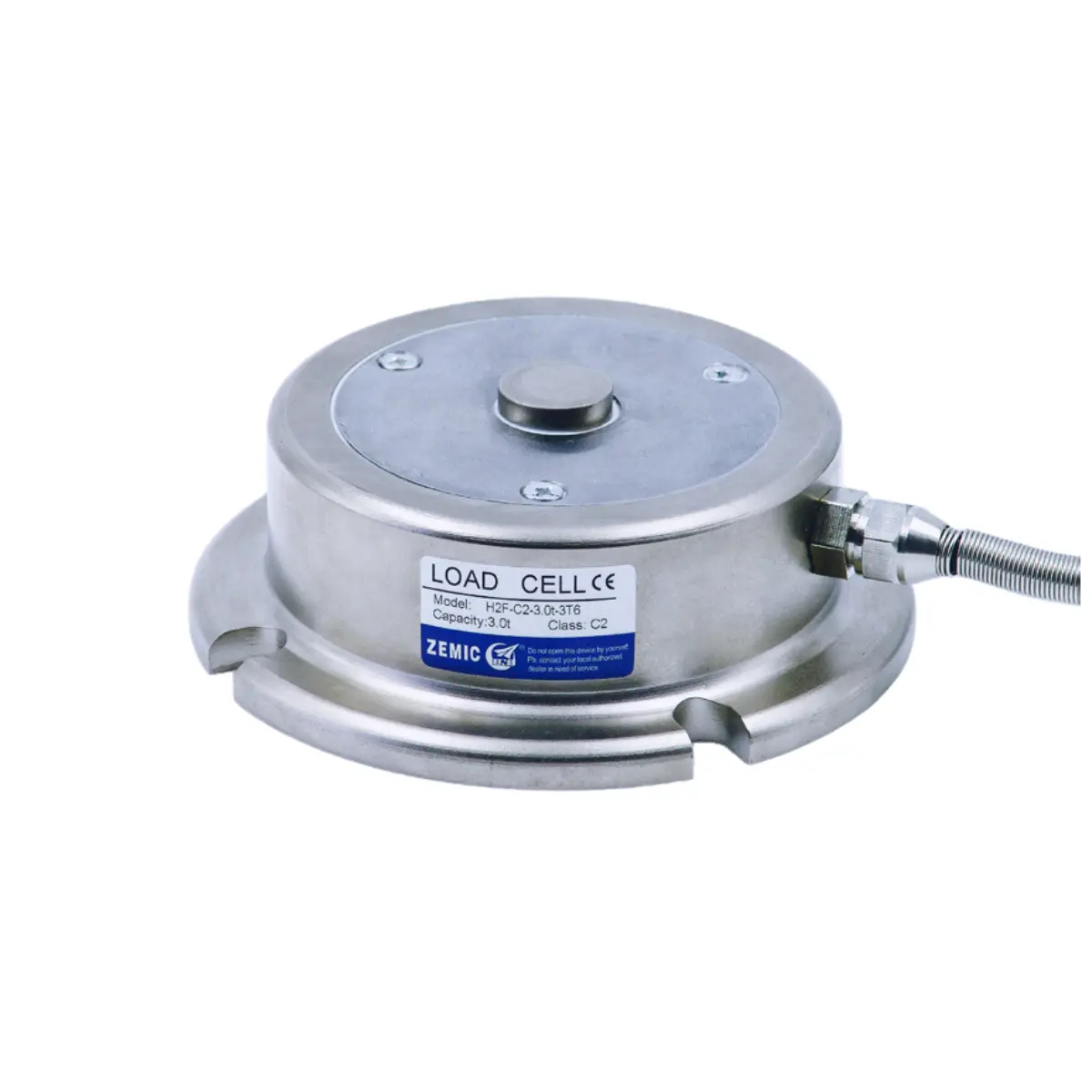

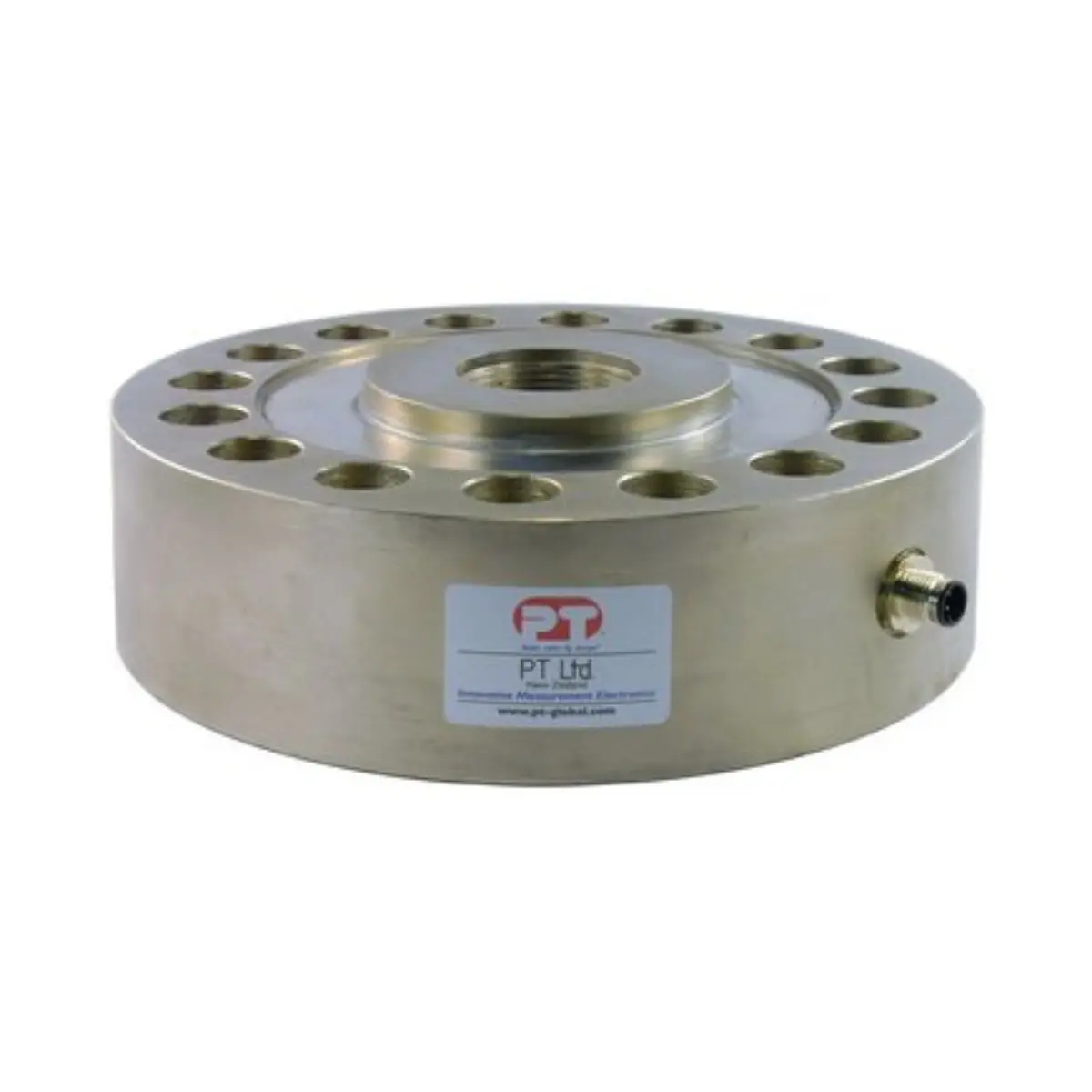

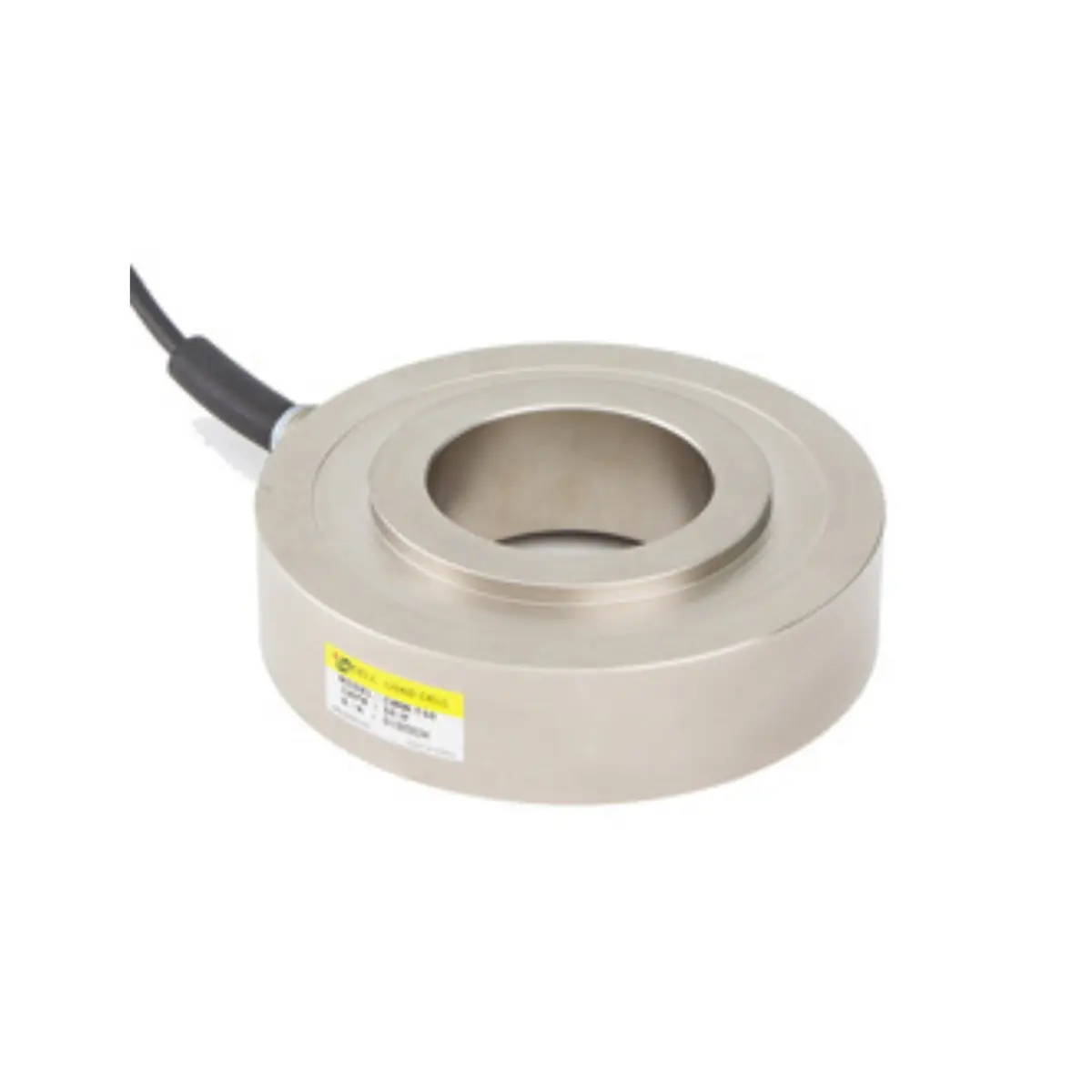

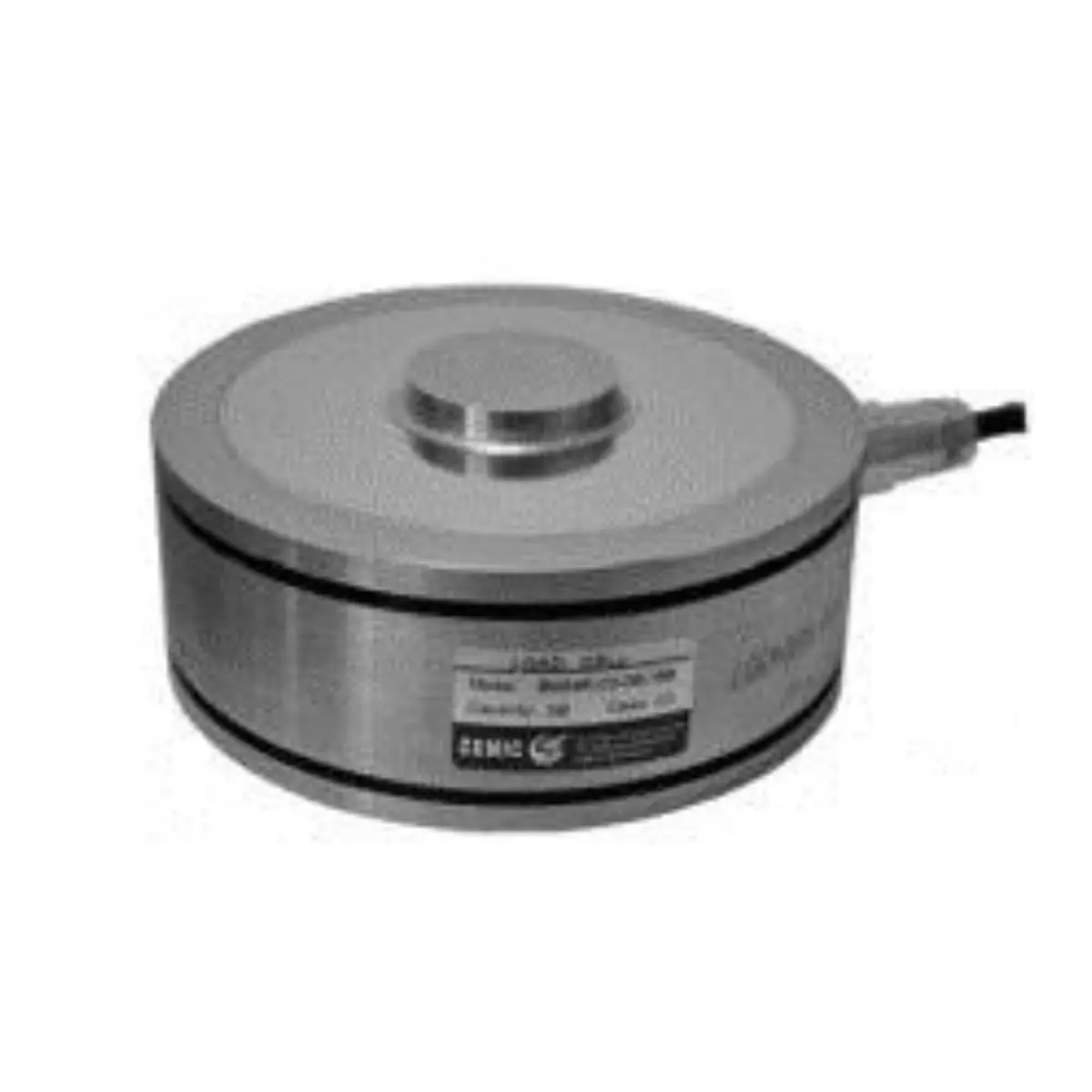

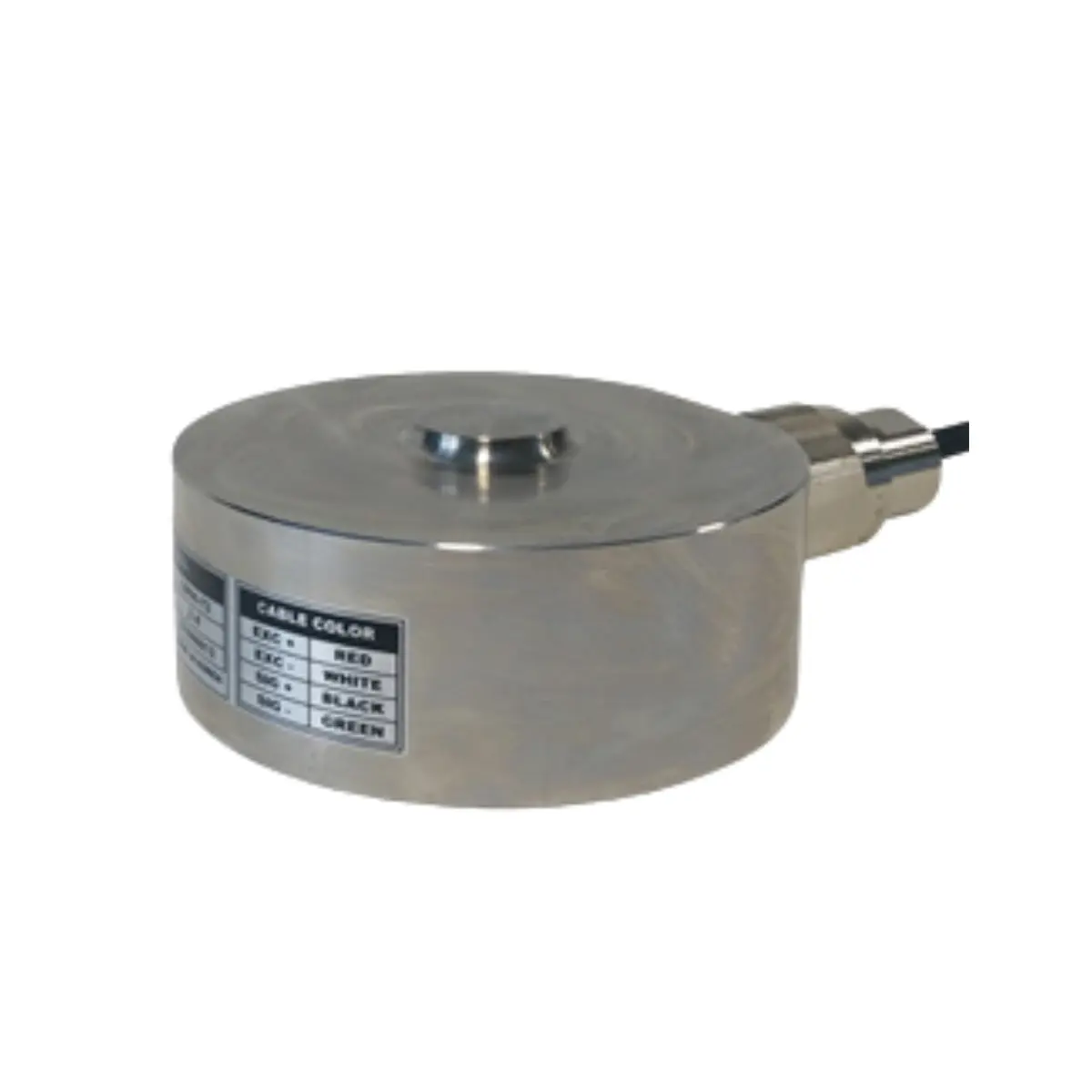

As a premier load cell manufacturer and load cell supplier in UAE, we specialize in providing high-quality load cell sensors for various industrial applications. Our Ring Torsion / Compression Load Cells are engineered for precision and durability, making them ideal for heavy-duty weighing tasks. These load cells offer exceptional accuracy and stability, even under harsh environmental conditions. Their robust construction ensures long-term reliability, making them a preferred choice for industries that demand precise and consistent weight measurements. Trust us as your go-to load cell supplier in UAE for advanced load cell solutions for weighing systems. Discover the best and highest standards of performance and quality.

• Nominal Output: 1.0 to 3.0 +/-0.1mV/V.
• Combined Error : 0.020% FS.
• Non - Repeatability: 0.01%FS.
• Creep (20 min): 0.0245% FS.
• Zero Balance: 1.0% of FS.
• Output Temperature Balance: 0.02% FS.
• Zero Output: +_ 0.01mV.
• Input Resistance: 1110 +_50 Ohms.
• Output Resistance: 1025 +_25 Ohms.
• Insulation Resistance: >= 5,000,000,000 Ohms.
• Excitation Voltage: 10V (DC/AC).
• Permit Voltage: (5 - 15 VDC/AC).
• Technology: Stainless Steel, Nickel Plated Alloy Steel.
• Capacity: 10T – 50T
• Application: Platform ,Silo, Hopper& Packing Sales, Process weighing Scales etc.

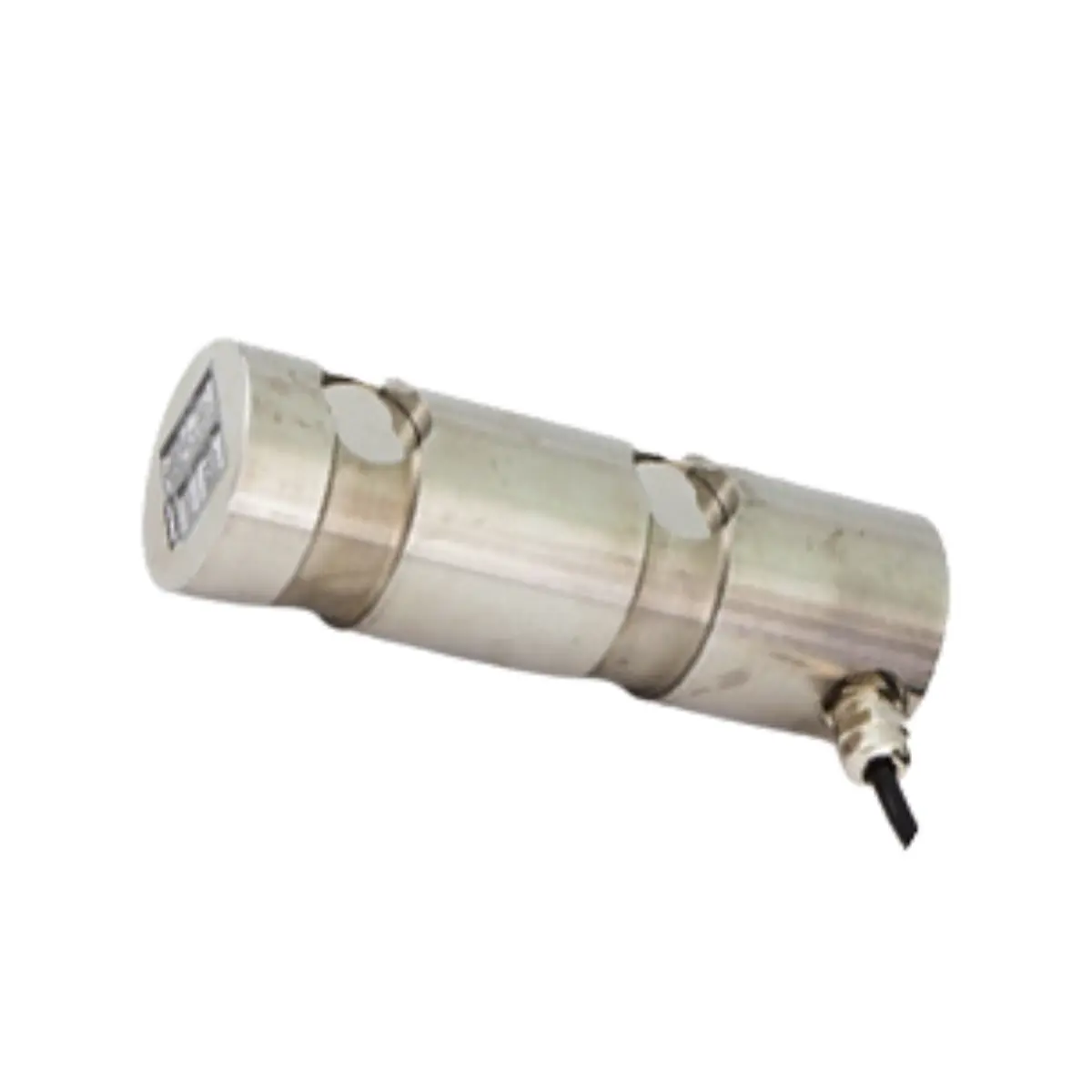

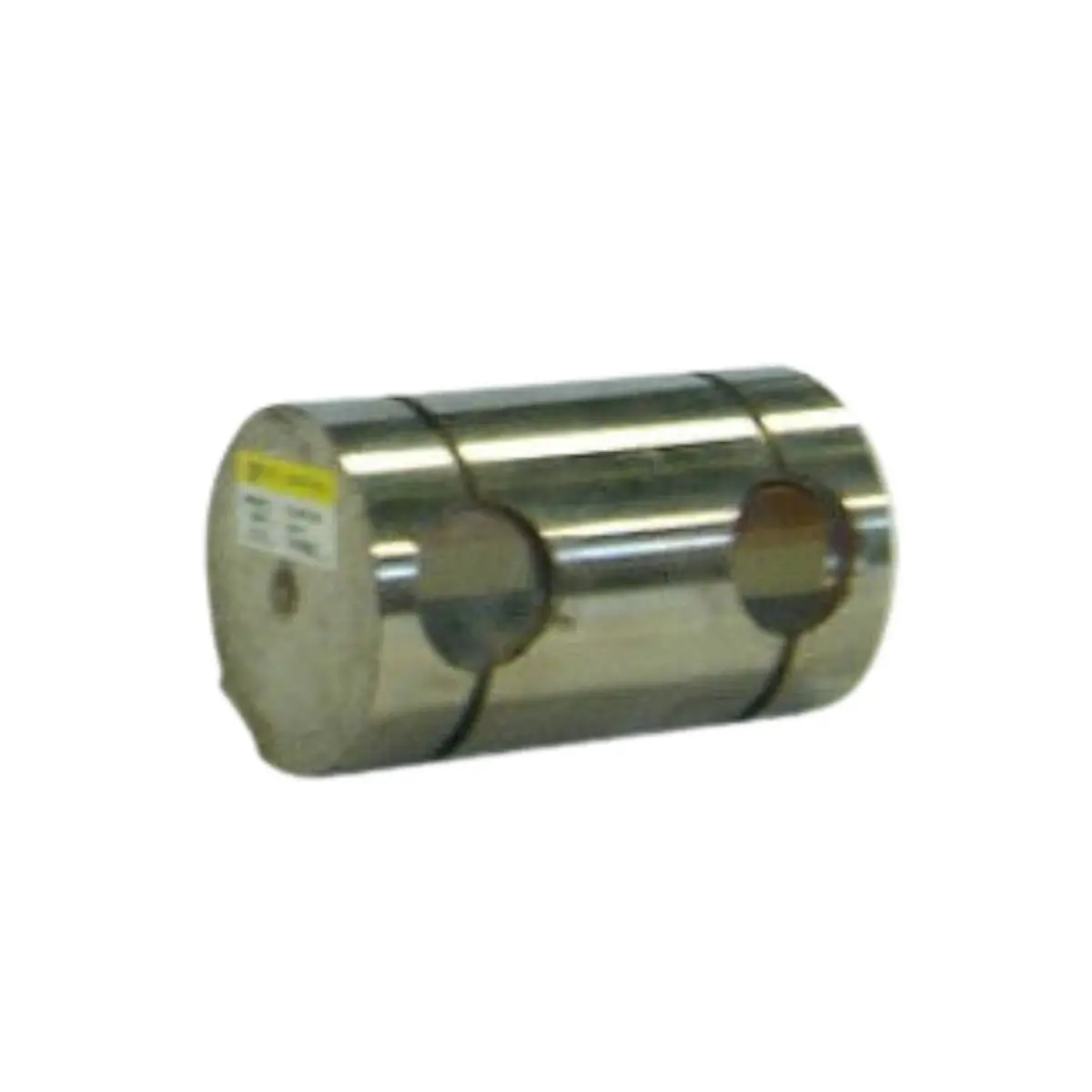

PIN TYPE LOAD CELLS

As the best load cell supplier in UAE, we offer top-quality pin-type load cells that are designed for precision and reliability. Our pin-type load cell sensors are ideal for various industrial applications, providing accurate force measurement in cranes, hoists, and heavy machinery. These load cells are built to withstand harsh environments, ensuring durability and long-term performance. Trust us as your premier load cell supplier in UAE to deliver superior pin-type load cells that meet your specific requirements and enhance your operational efficiency.

• Nominal Output: 1.0 to 3.0 +/-0.1mV/V.
• Non-Linearity: 0.15% FS.
• Hysteresis – 0.15 % FS
• Repeatability: 0.1%FS.
• Creep (20 min): 0.05% FS.
• Zero Balance: 1.0% of FS.
• Output Temperature Balance: 0.02% FS.
• Zero Output: +_ 0.2mV.
• Input Resistance: 700 +_1%
• Output Resistance: 700 +_5%
• Insulation Resistance: >= 20,000 M. Ohms.
• Excitation Voltage: 10V (DC/AC).
• Permit Voltage: (5 - 15 VDC/AC).
• Technology: Stainless Steel, Nickel Plated Alloy Steel.
• Capacity: 2T – 40T
• Application: Crane Scale, Load Amplifier system, Process weighing Scales etc.

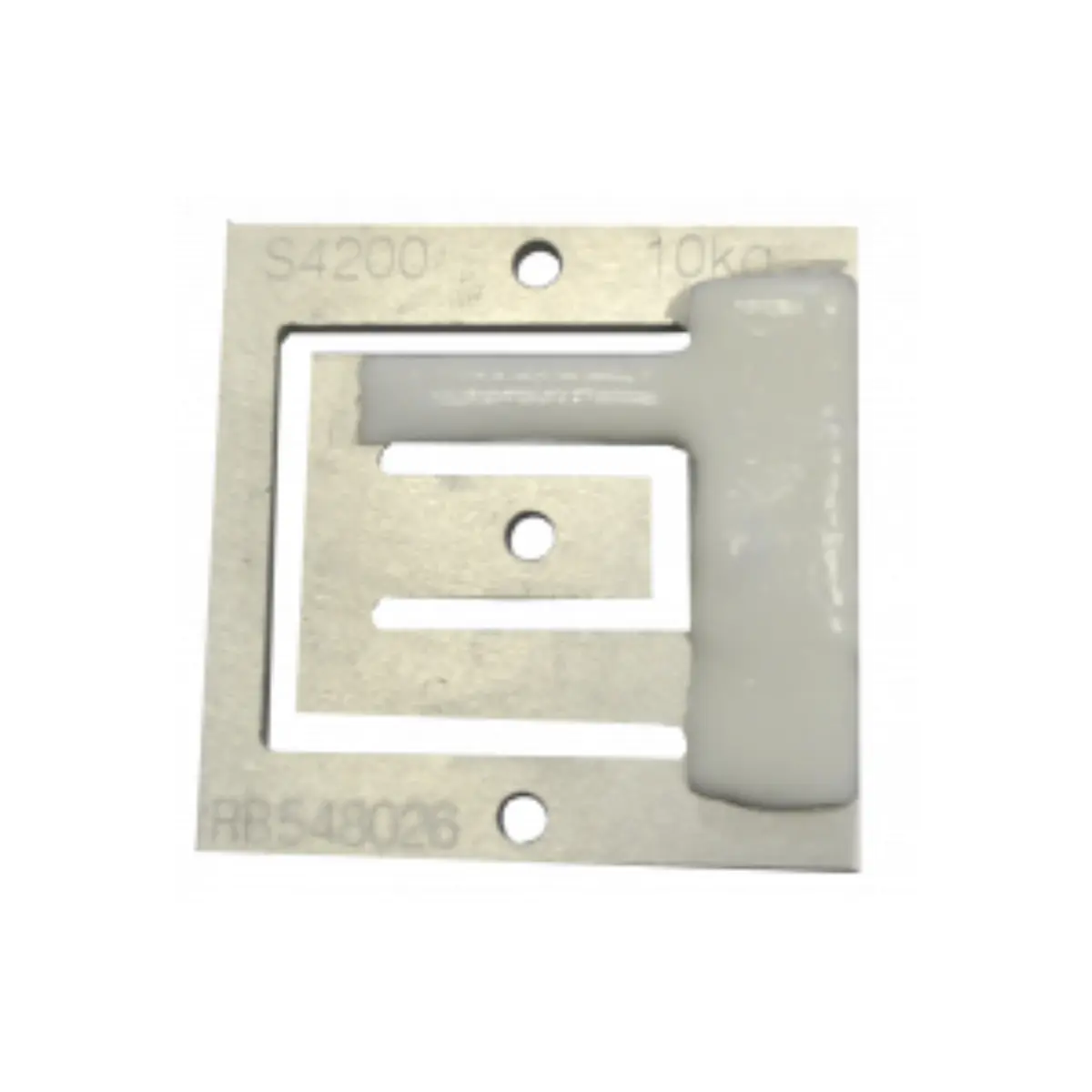

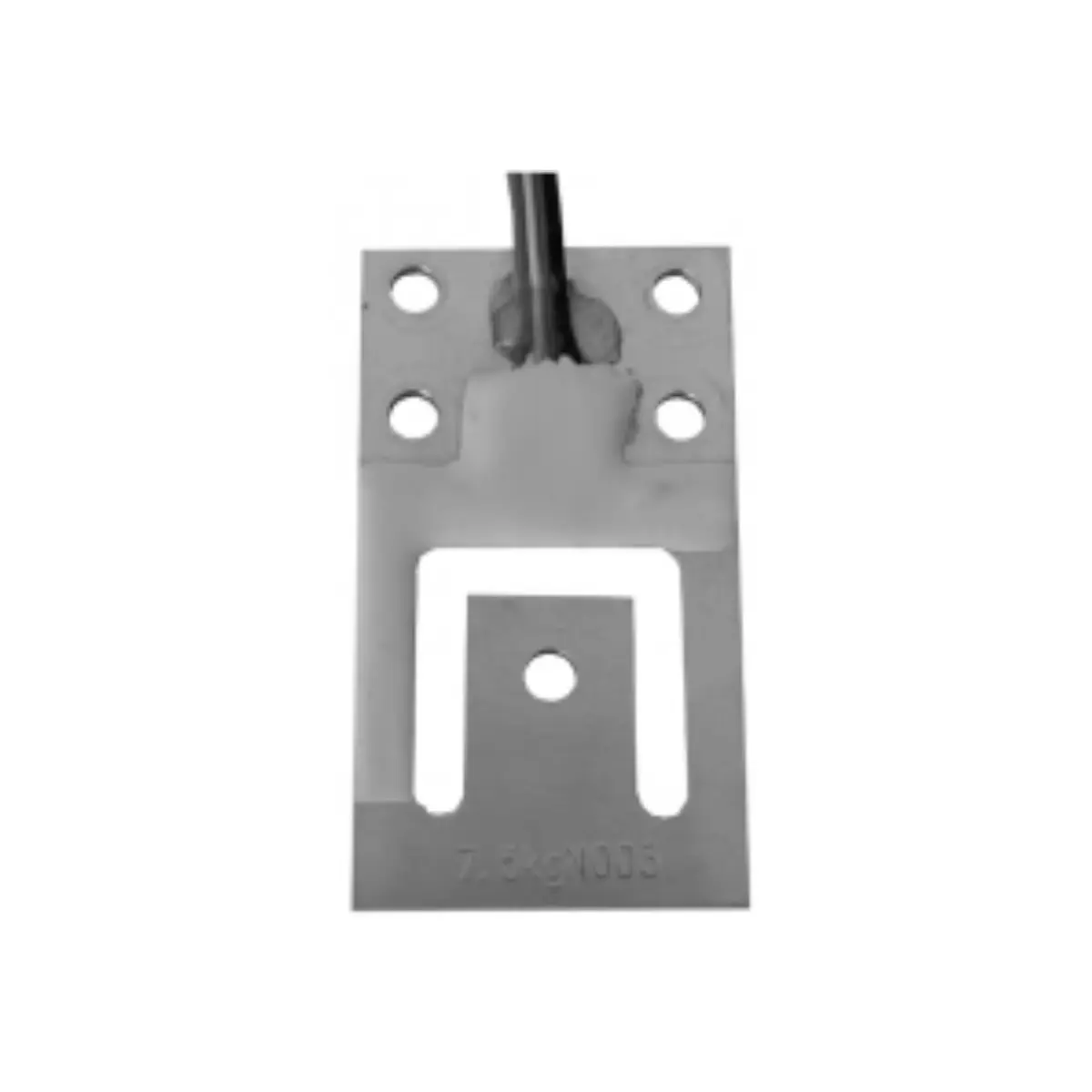

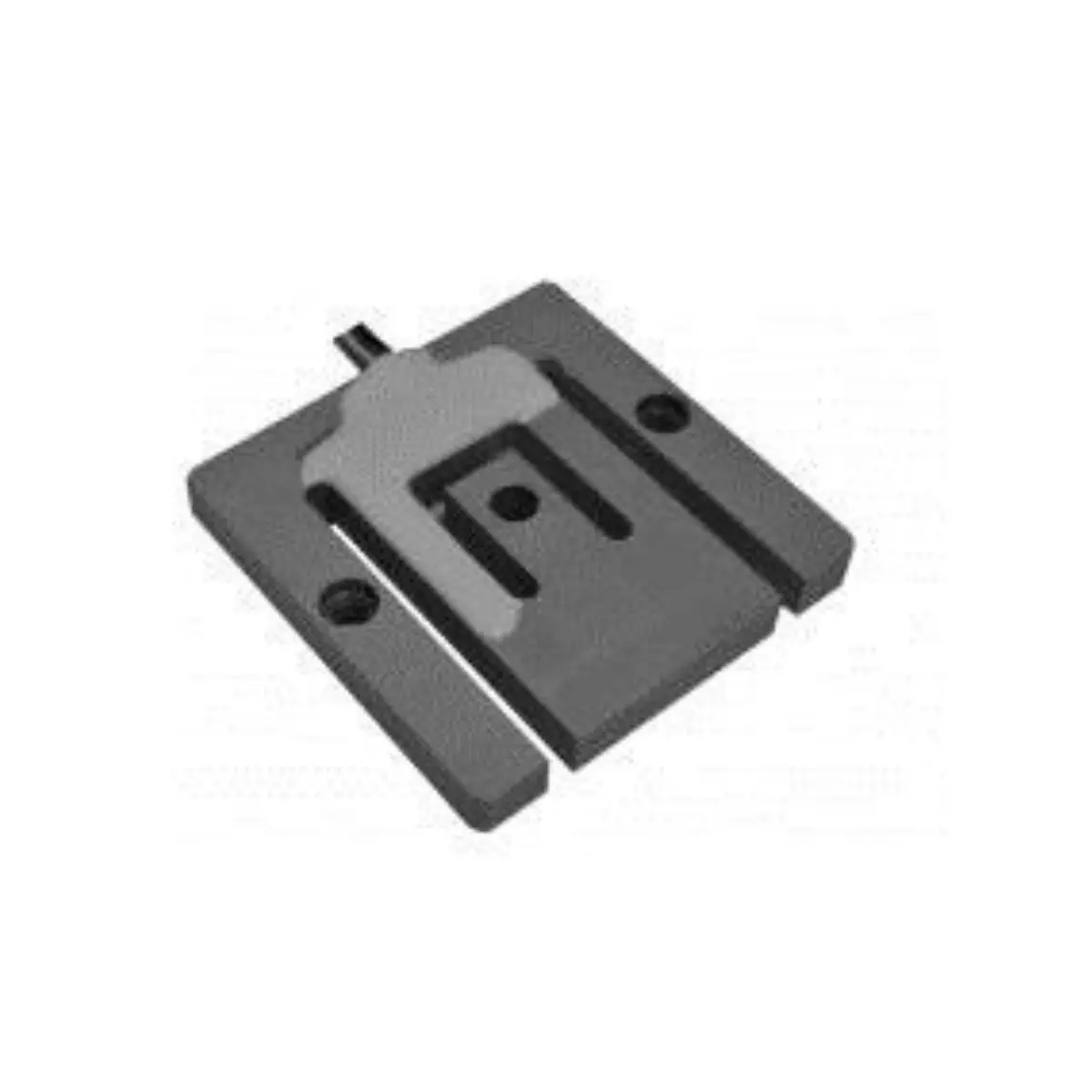

PLANNER BEAM LOAD CELLS

Planner beam load cells are essential components in various industrial applications, known for their high precision and reliability. As a leading load cell manufacturer, we specialize in producing planner beam load cells designed to deliver accurate and consistent measurements. Our load cell sensors are engineered to withstand harsh environments, ensuring durability and longevity. Whether you need load cell sensors for industrial weighing systems or process automation, our products meet the highest standards of quality and performance. As a trusted and best load cell supplier in the UAE, we are committed to providing innovative solutions that enhance efficiency and accuracy in your operations.

• Nominal Output: 1.0 to 3.0 +/-0.1mV/V.
• Non-Linearity: 0.15% FS.
• Creep (20 min): 0.05% FS.
• Zero Balance: 1.0% of FS.
• Output Temperature Balance: 0.02% FS.
• Zero Output: +_ 0.2mV.
• Insulation Resistance: >= 20,000 M. Ohms.
• Excitation Voltage: 10V (DC/AC).
• Permit Voltage: (5 - 15 VDC/AC).
• Technology: Aluminium, Stainless Steel, Nickel Plated Alloy Steel.
• Capacity: 5kg – 150kg
• Application: Medical, Agriculture, Platform Scale, Process weighing Scales etc.

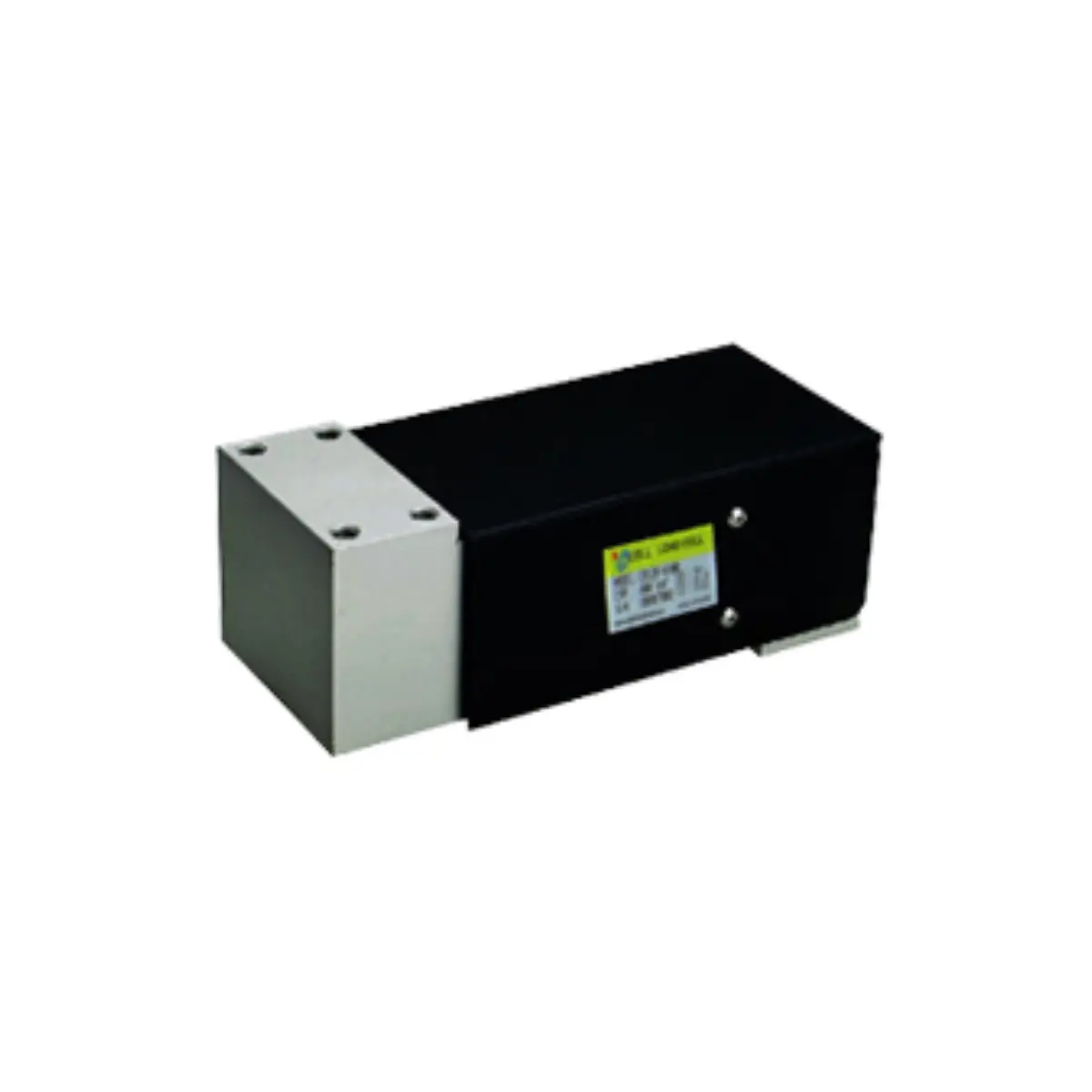

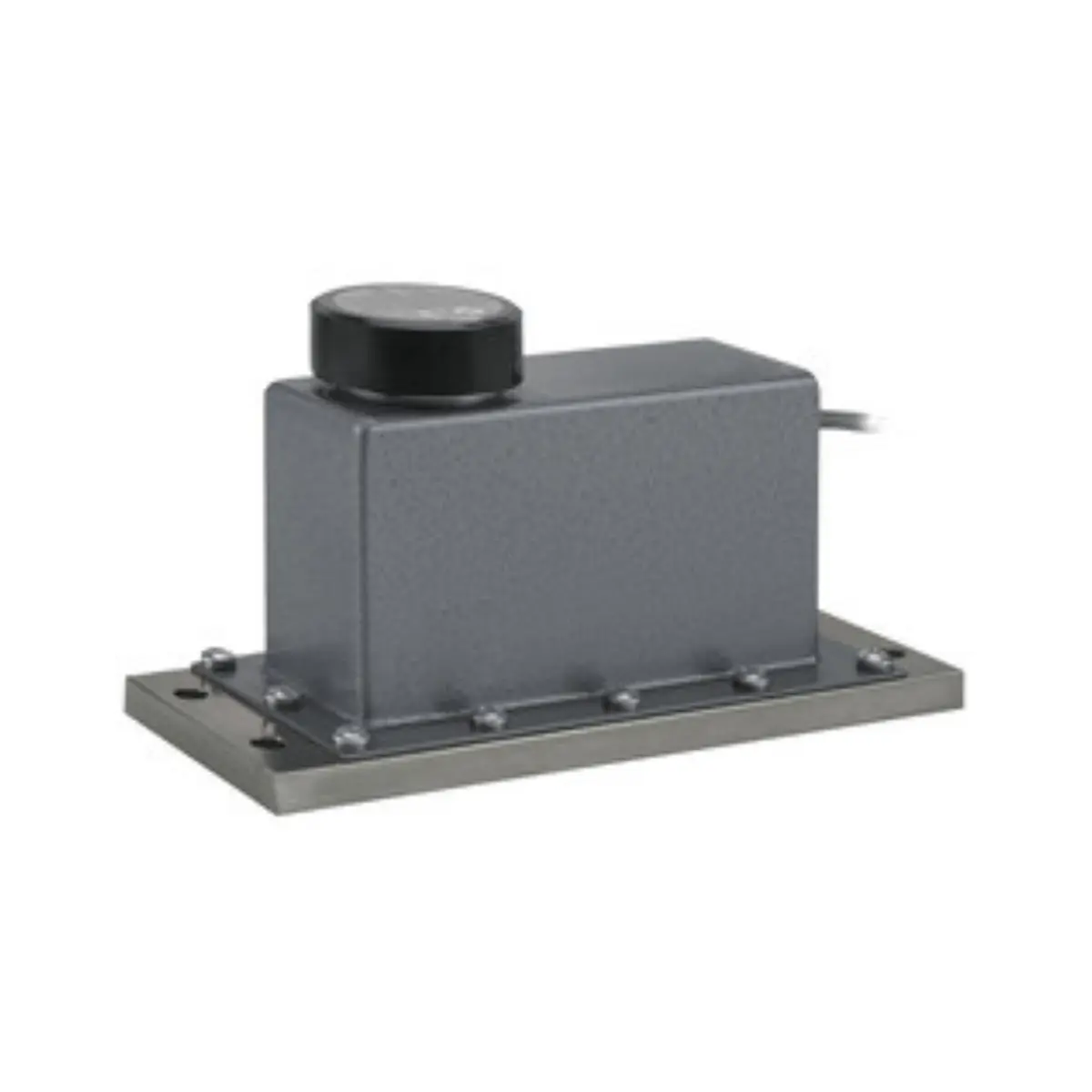

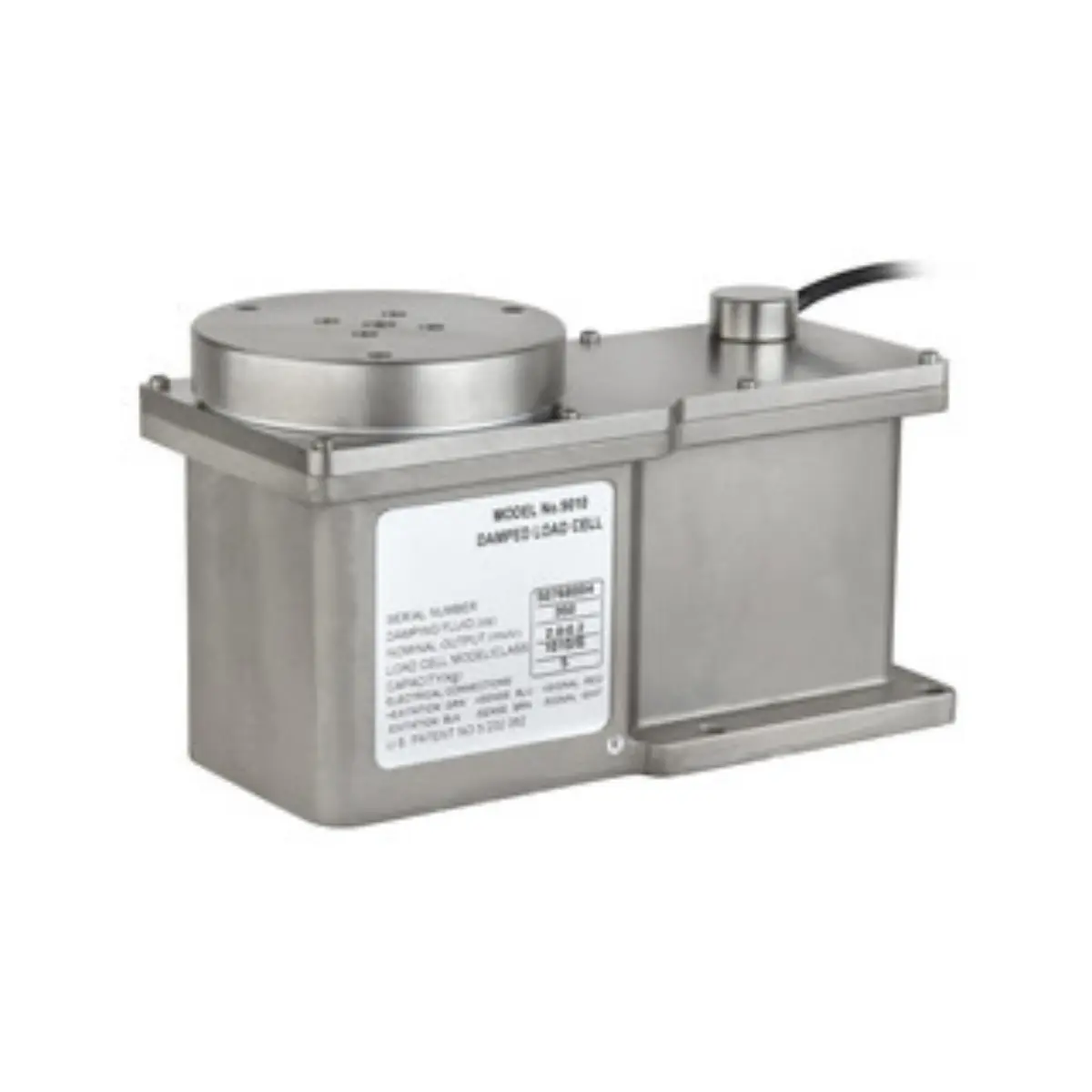

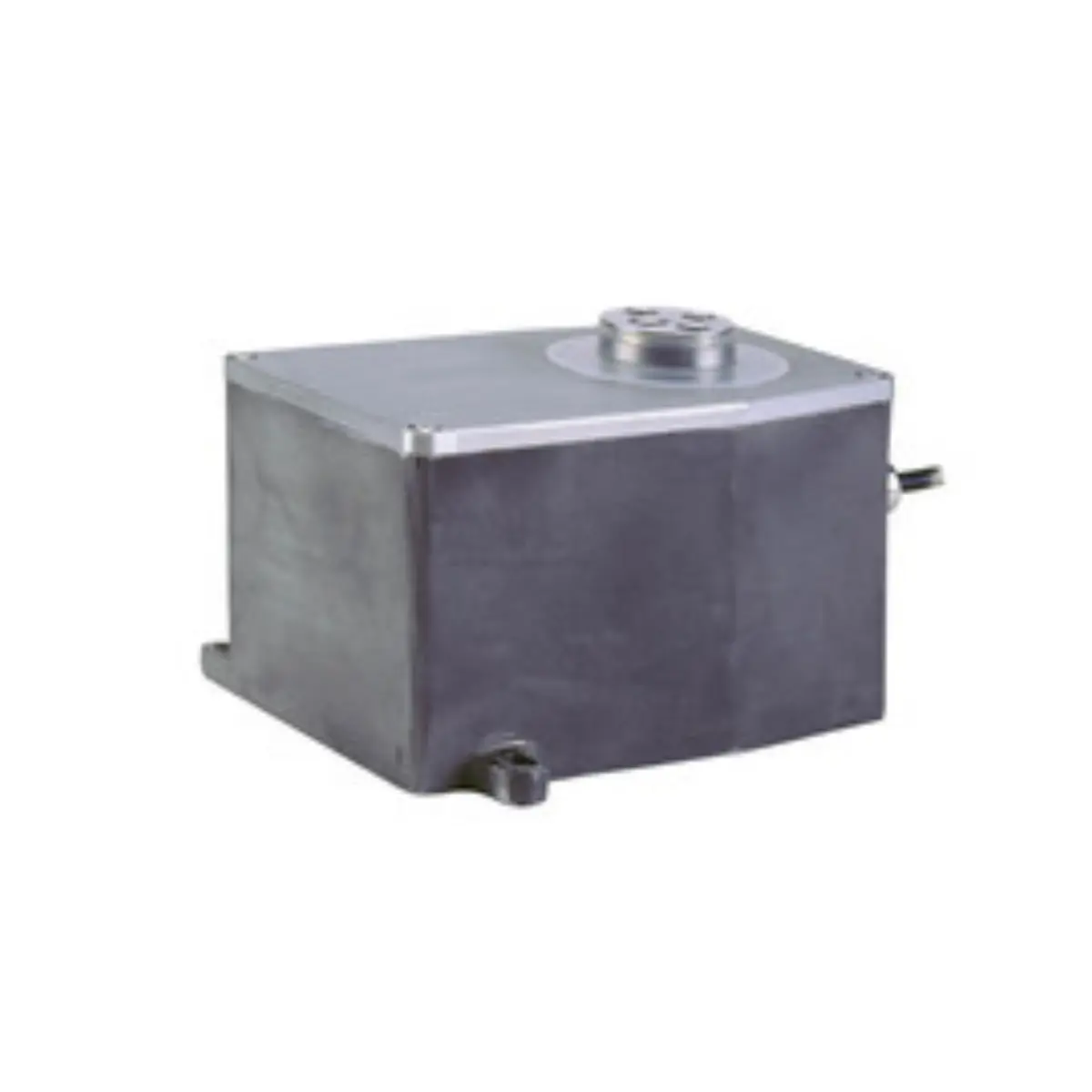

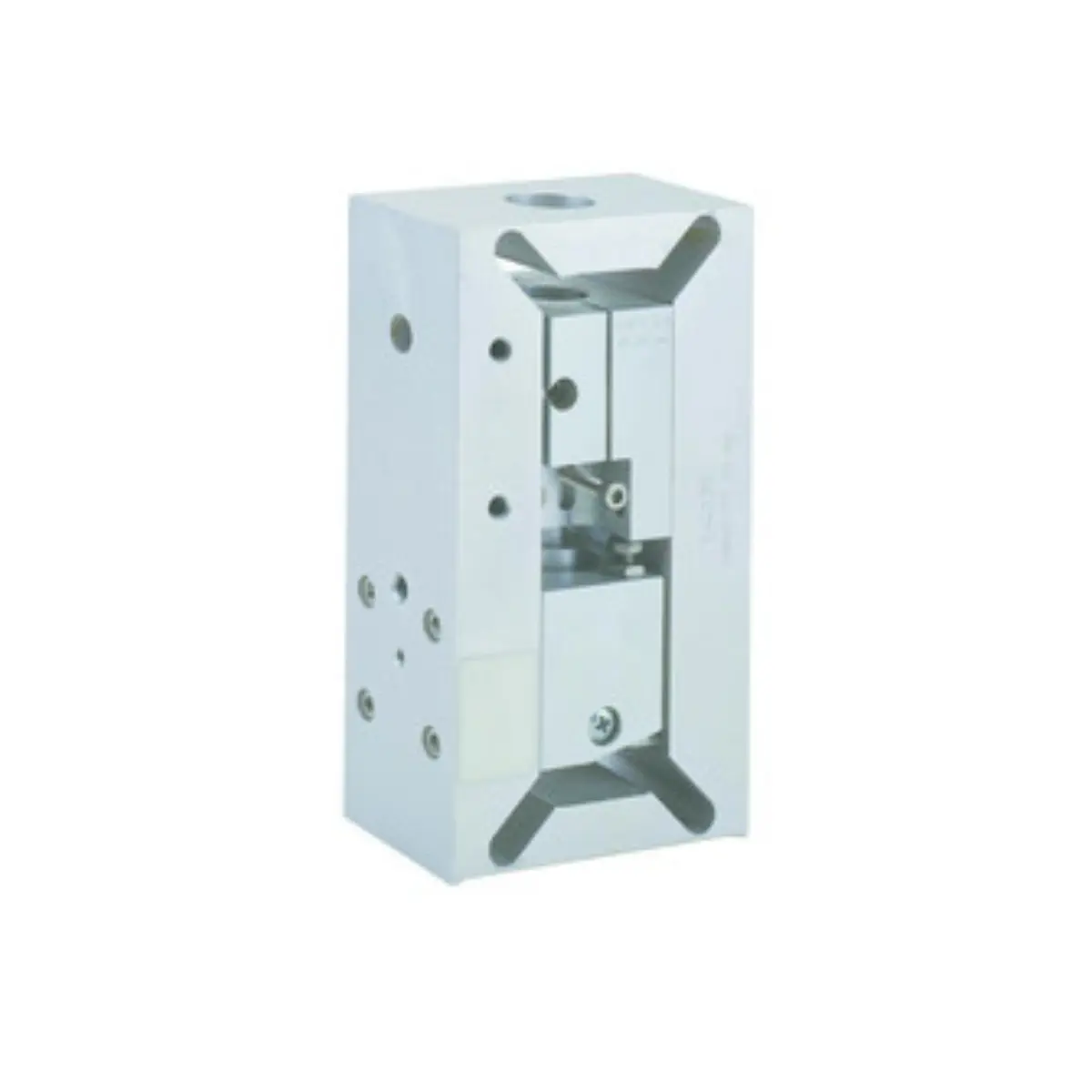

DAMPED LOAD CELLS

As an experienced load cell manufacturer and supplier in UAE, we offer advanced damped load cells designed to minimize vibrations and enhance measurement accuracy. These load cell sensors are engineered to provide stable and precise readings even in dynamic environments, making them ideal for applications requiring high accuracy under fluctuating conditions. Our damped load cells ensure reliable performance by absorbing shocks and reducing the noise that can affect the sensor's output. Trust our expertise as a premier load cell supplier in UAE to deliver high-quality damped load cells that meet your specific industrial requirements.

• Nominal Output: 1.0 to 3.0 +/-0.1mV/V.
• Combined Error: 0.02% FS.
• Non - Repeatability: 0.01%FS.
• Zero Balance: 1.0% FS.
• Insulation Resistance: >= 5,000,000,000 Ohms.
• Excitation Voltage: 10V (DC/AC).
• Permit Voltage: (5 - 15 VDC/AC).
• Technology: Stainless Steel, Aluminium
• Capacity: 5kg – 500kg
• Application: Process weighing etc.

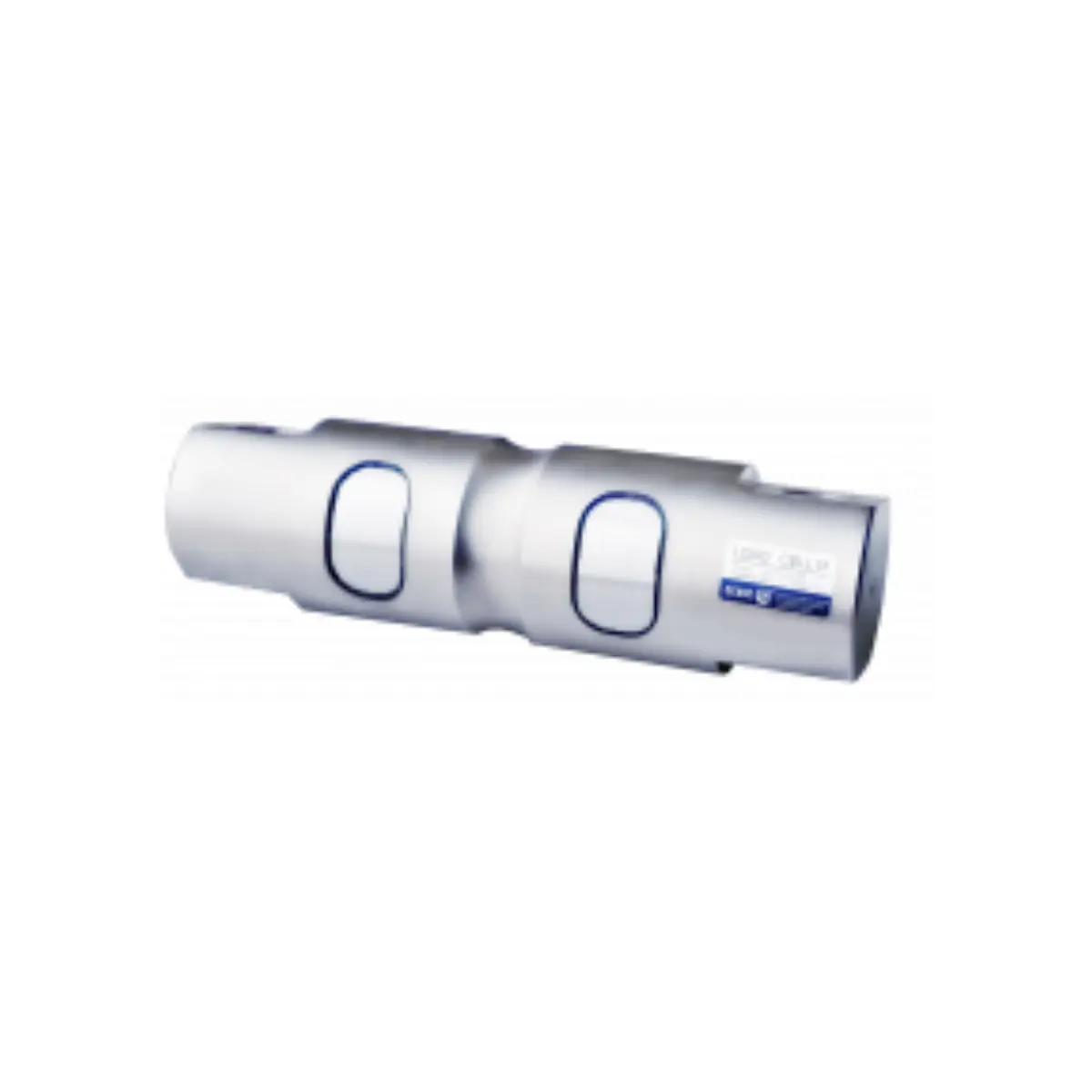

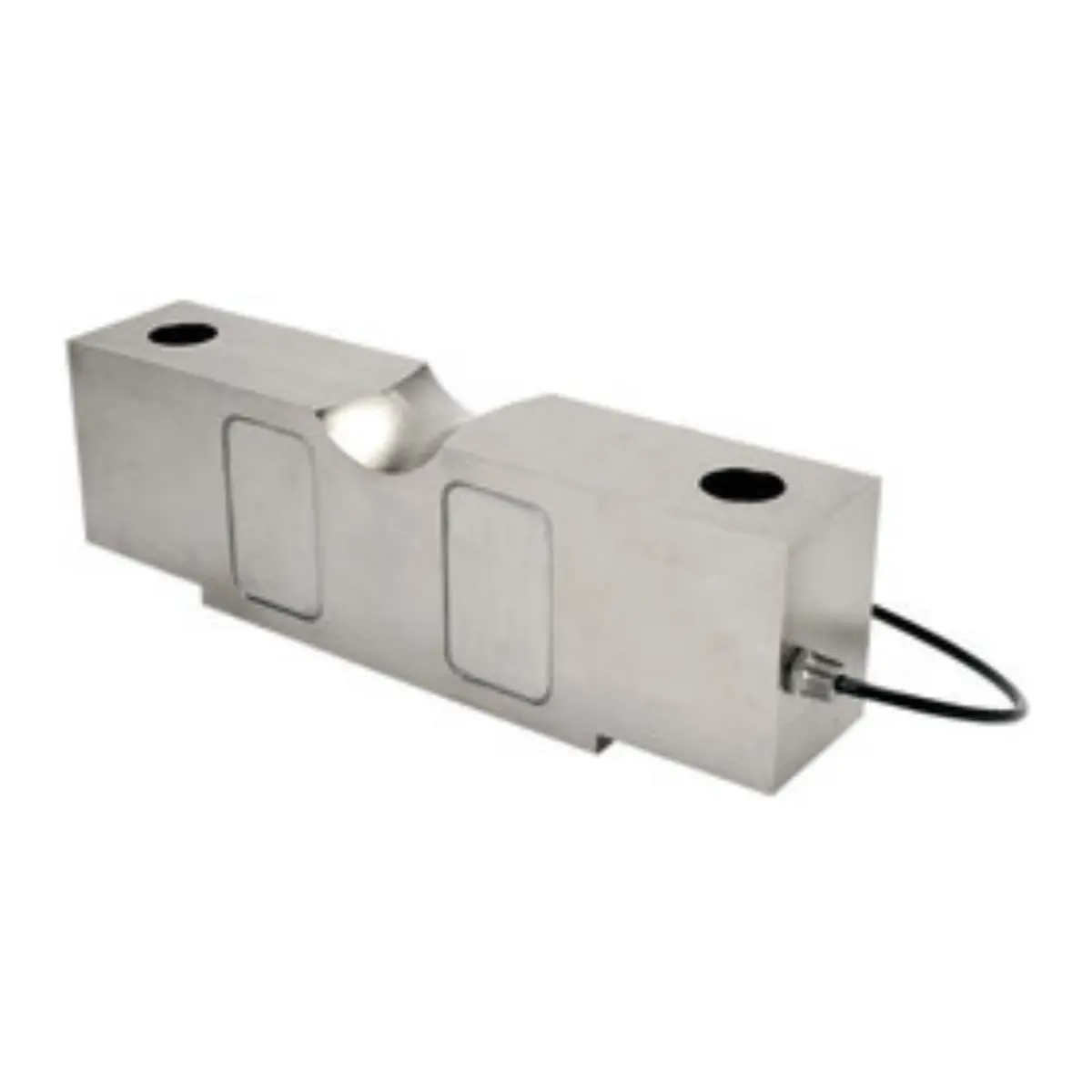

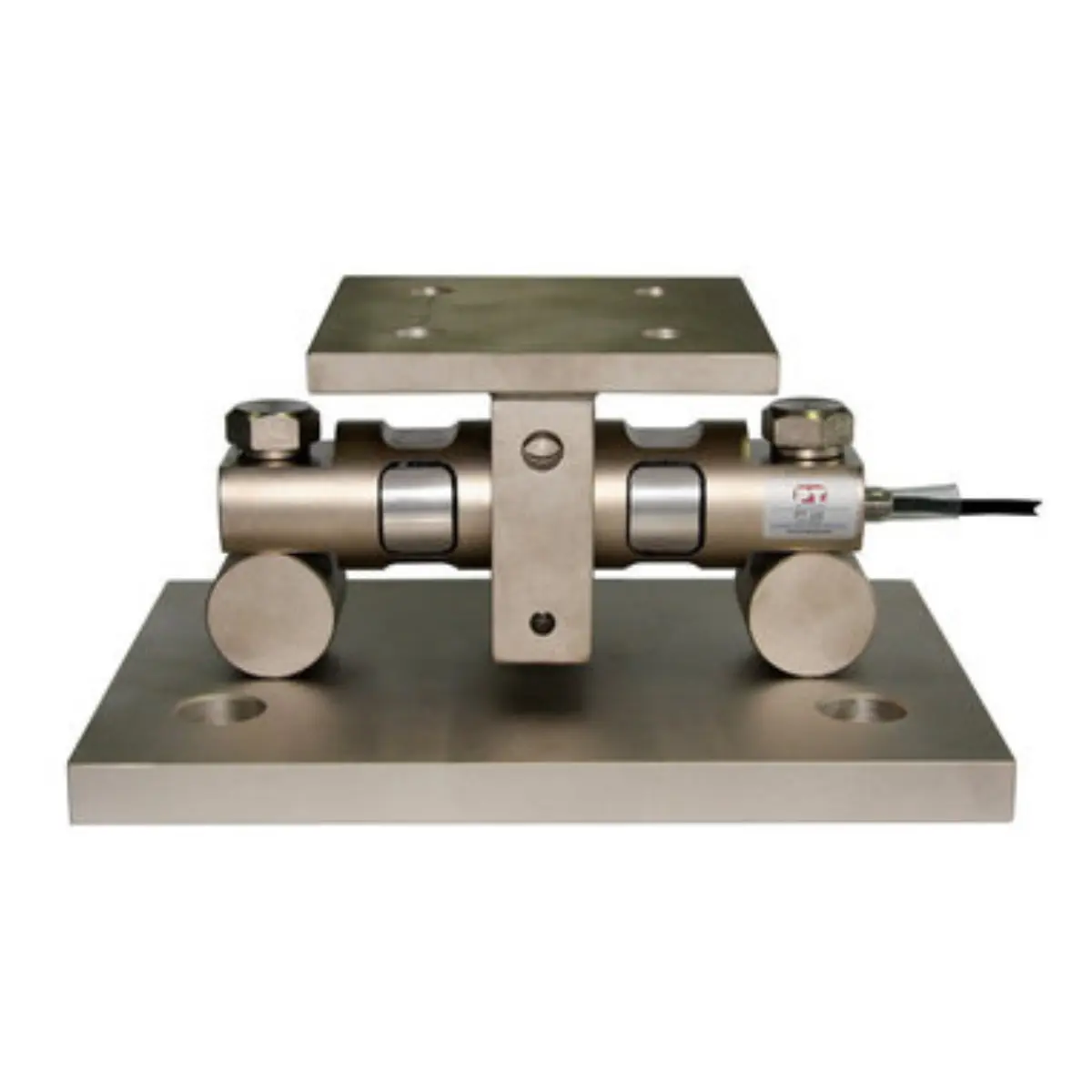

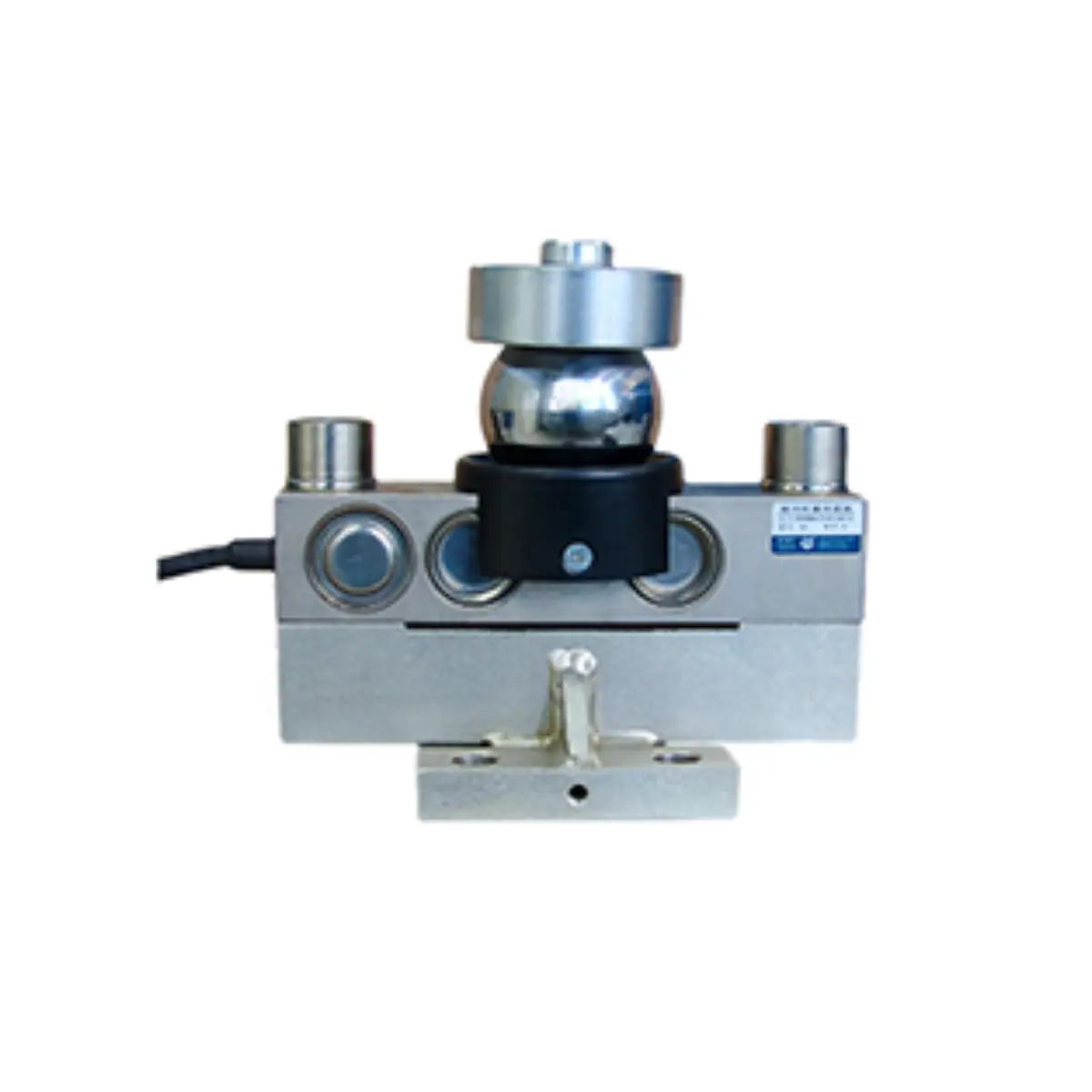

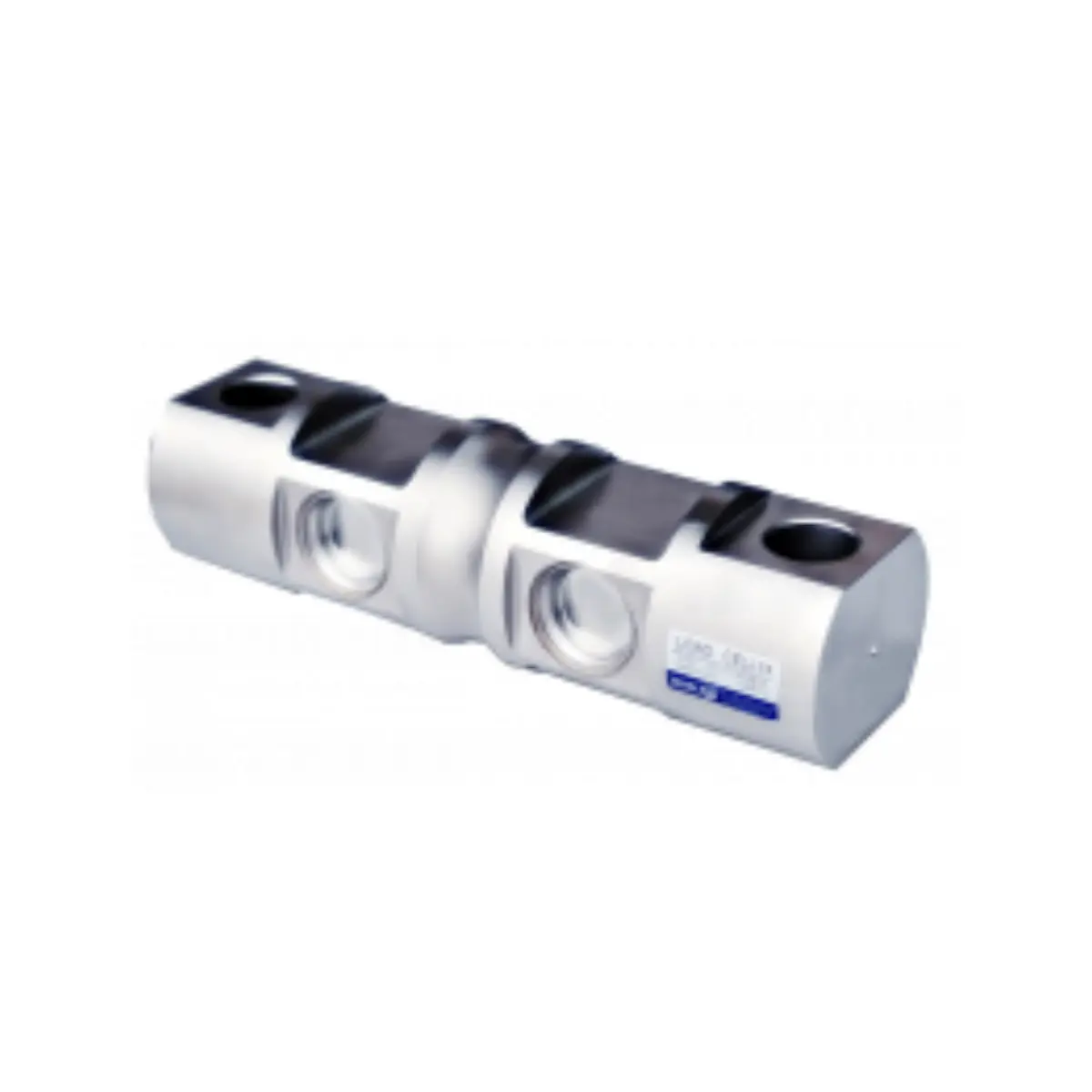

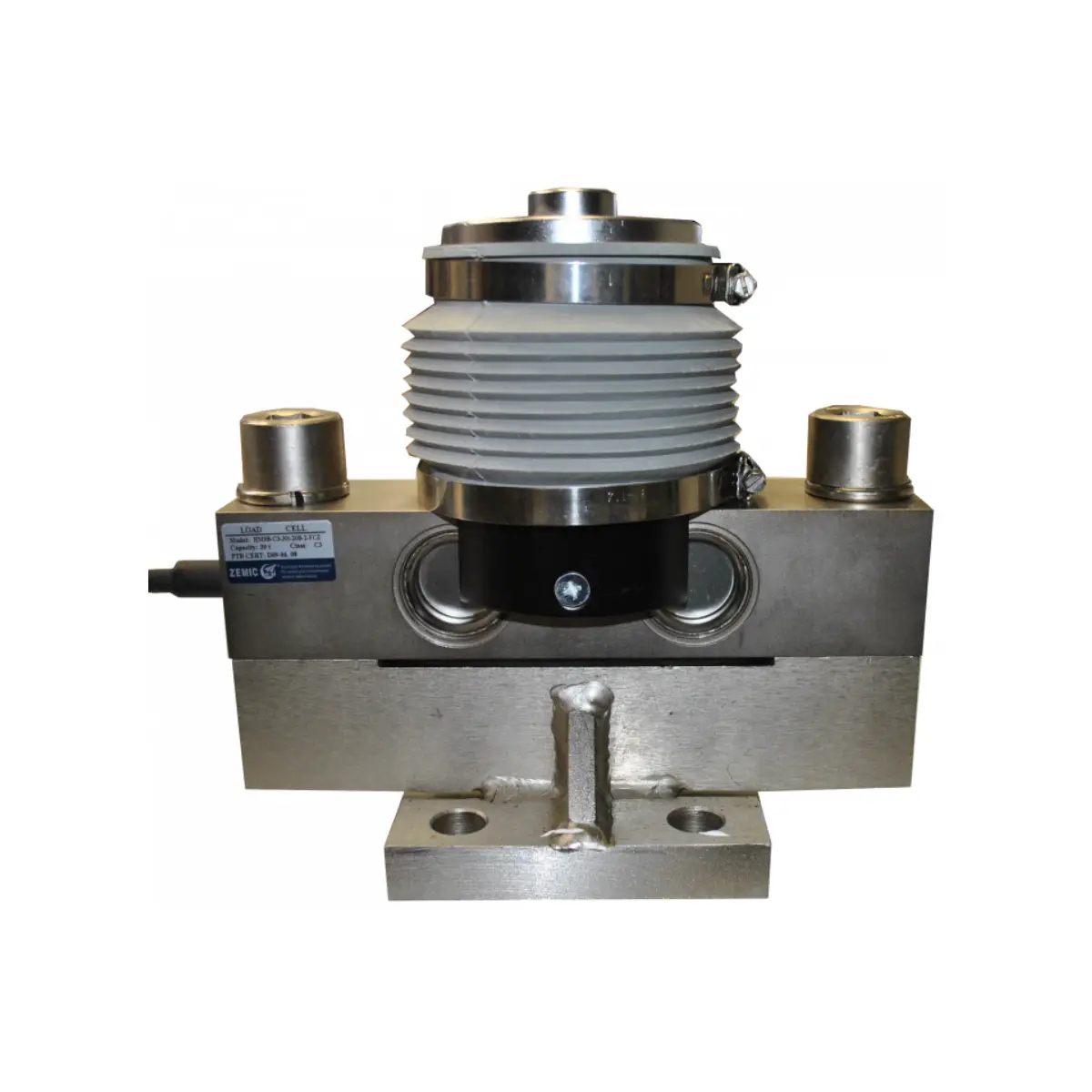

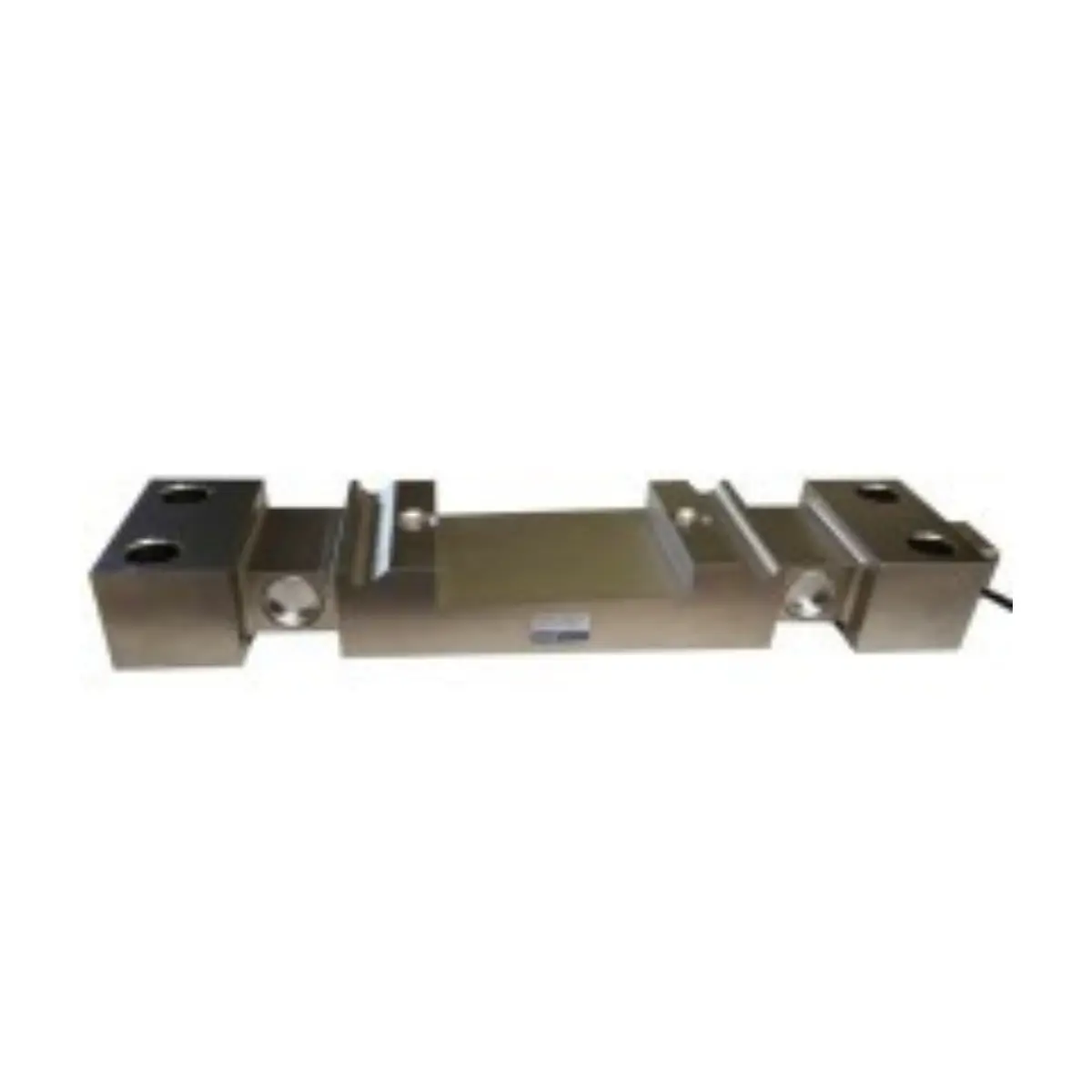

DOUBLE ENDED SHEAR BEAM LOAD CELLS

We offer high-quality double-ended shear beam load cells that are designed for heavy-duty applications. These load cell sensors are known for their exceptional accuracy and durability, making them ideal for industrial weighing systems where reliability is crucial. The double-ended shear beam design ensures minimal deflection and high resistance to side loads, providing precise measurements even under challenging conditions. Whether you need load cells for truck scales, silo weighing, or other large-scale applications, our products deliver consistent performance and longevity. Trust us as your go-to load cell supplier in UAE for robust and efficient weighing solutions.

• Nominal Output: 2.0 to 3.0 +/-0.1mV/V.
• Combined Error : 0.023% FS.
• Non - Repeatability: 0.01%FS.
• Creep (20 min): 0.03% FS.
• Zero Balance: 1.0% of FS.
• Output Temperature Balance: 0.02% FS.
• Zero Output: +_ 0.2mV.
• Input Resistance: 700 +_ 7 Ohms.
• Output Resistance: 700 +_ 7 Ohms.
• Insulation Resistance: >= 5,000,000,000 Ohms.
• Excitation Voltage: 10V (DC/AC).
• Permit Voltage: (5 - 12 VDC/AC).
• Technology: Stainless Steel, Nickel Plated Alloy Steel.
• Capacity: 10T – 50T
• Application: Truck, Track, Platform, Silo, Hopper& Packing Sales, Process weighing Scales etc.

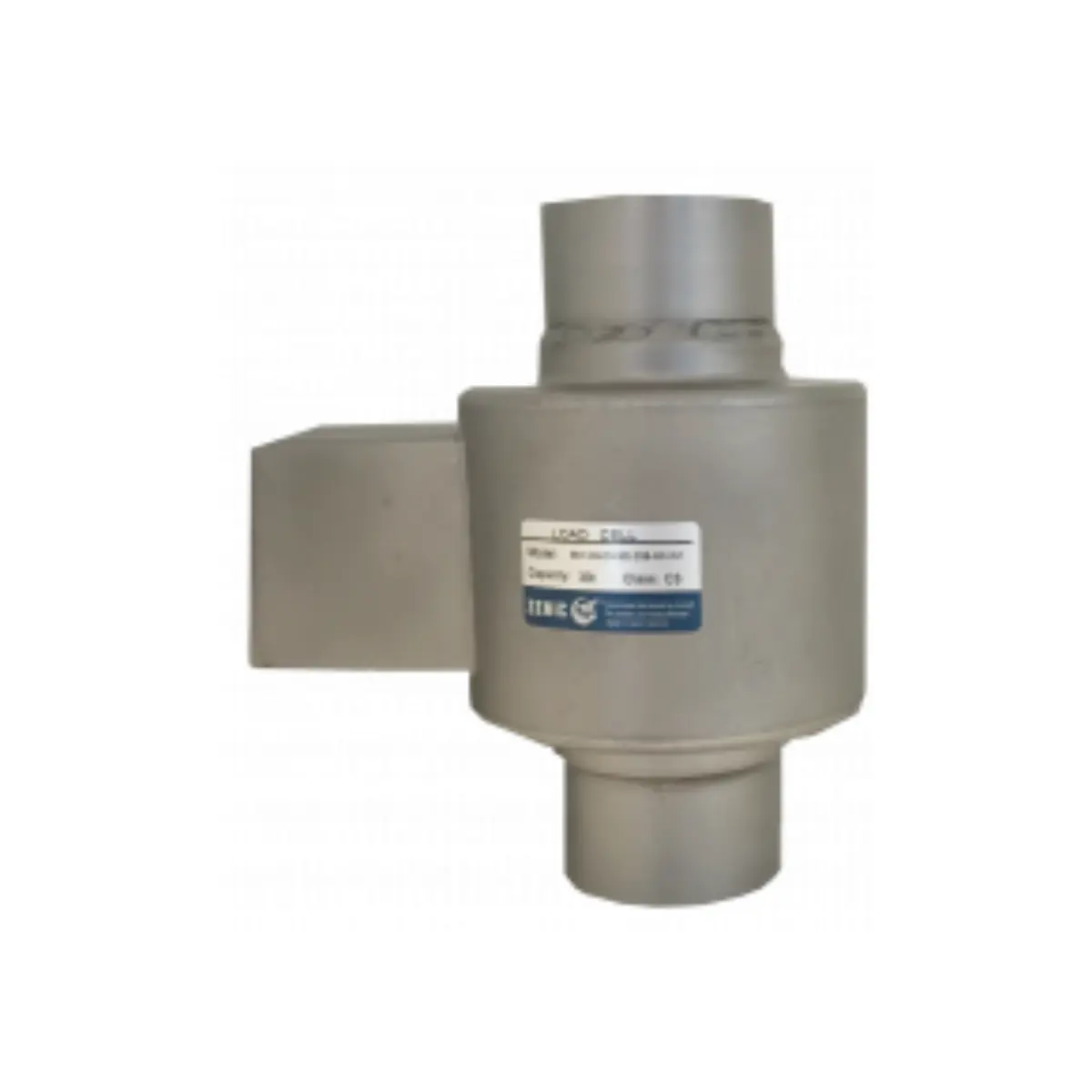

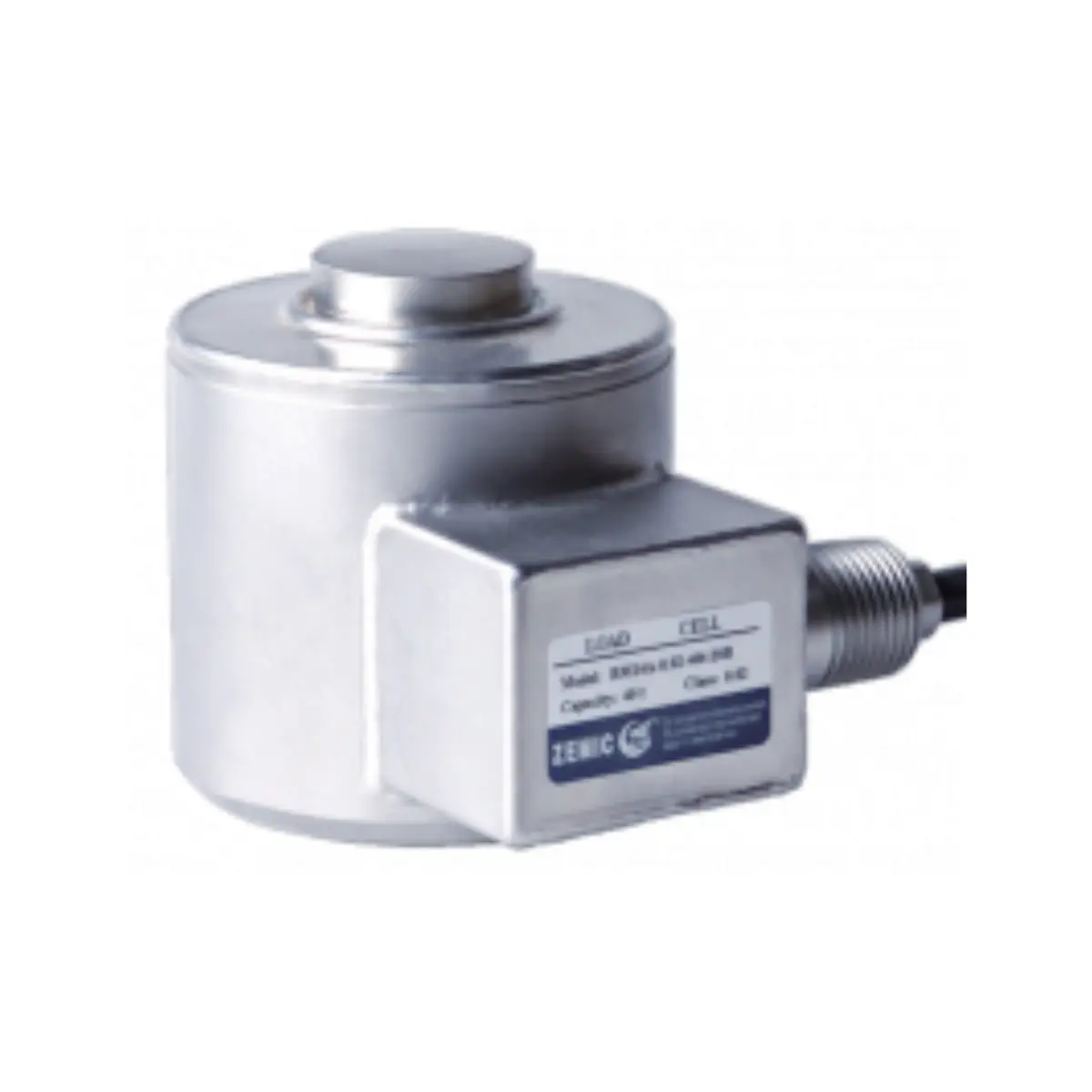

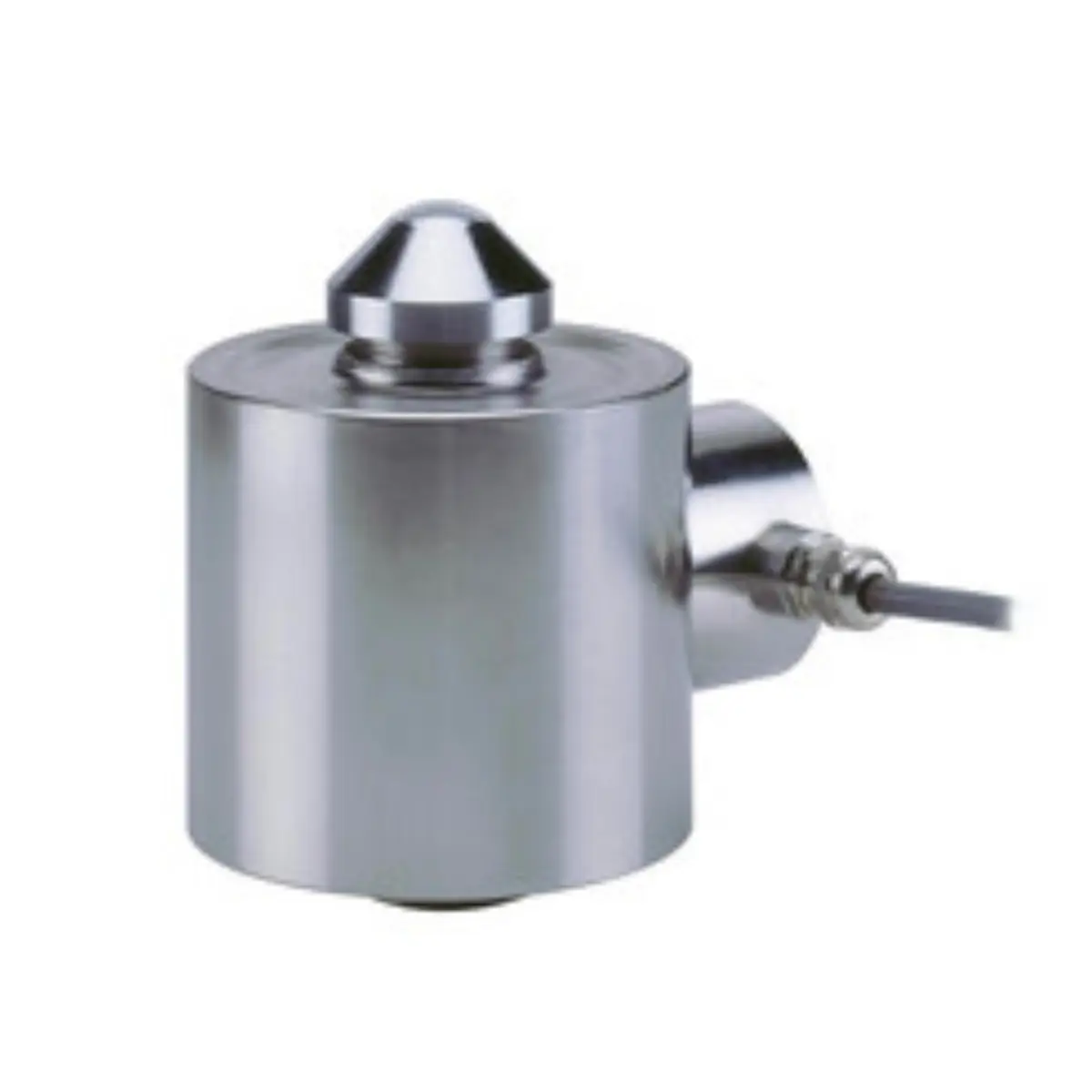

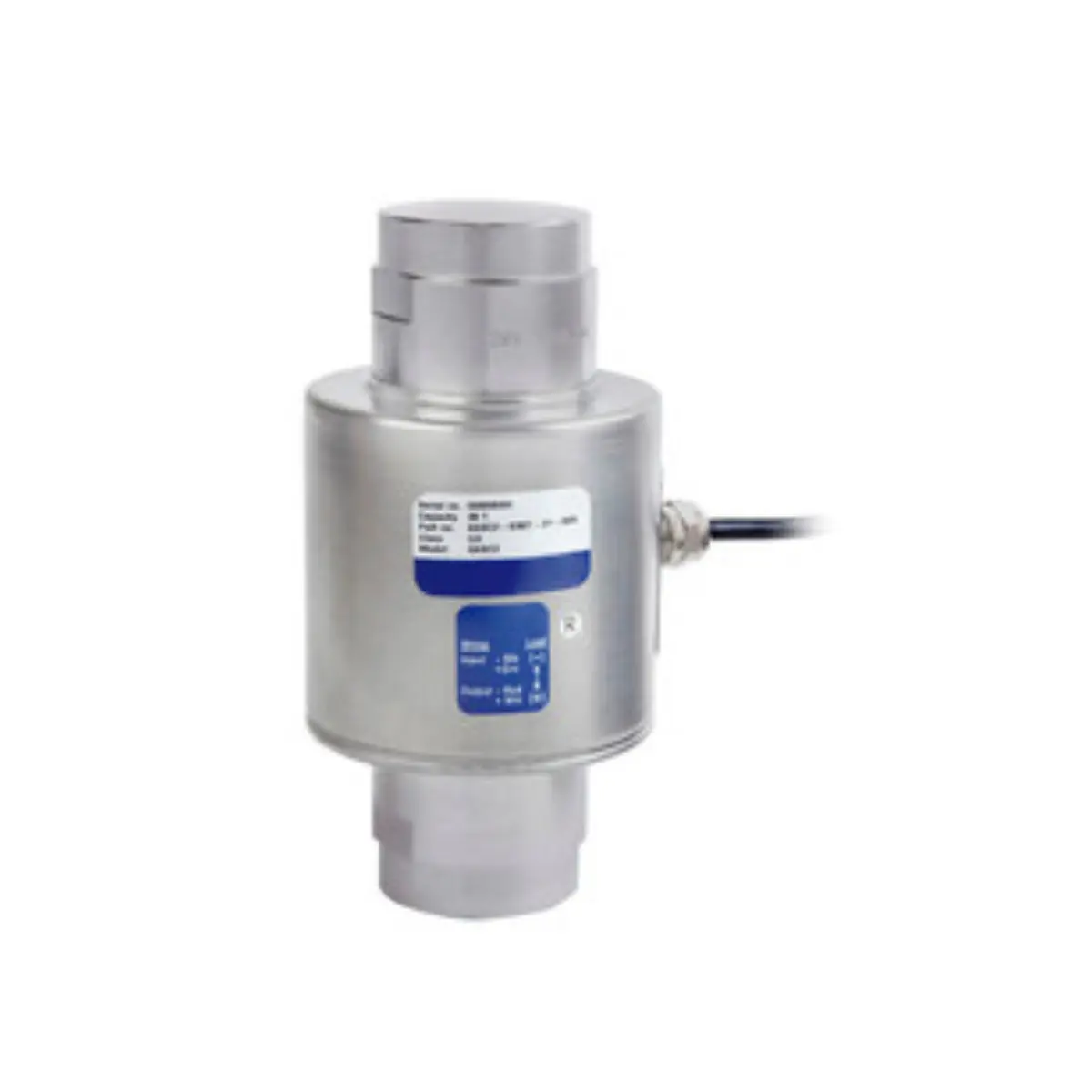

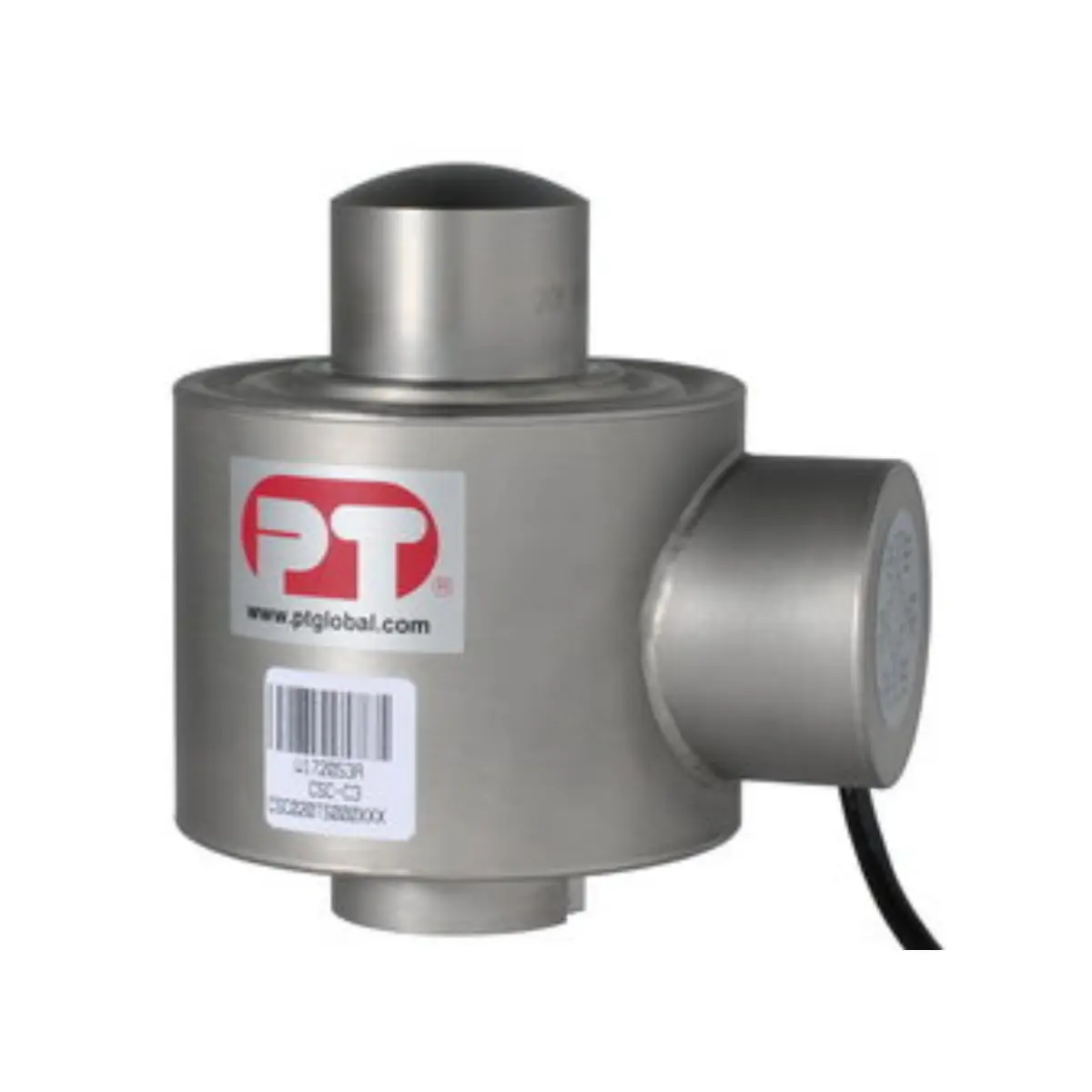

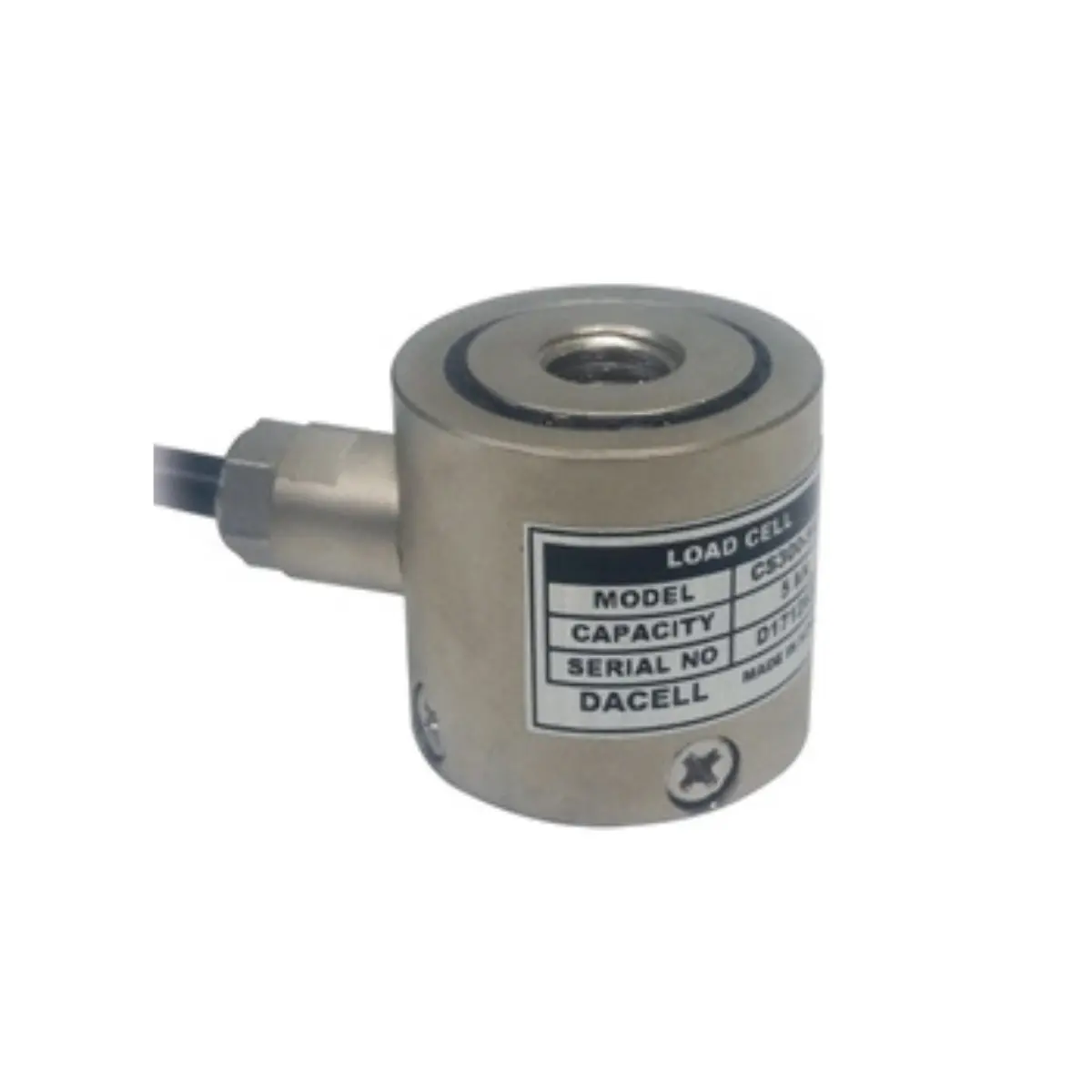

COMPRESSION LOAD CELLS

As a leading load cell manufacturer and supplier in the UAE, we specialize in providing high-quality compression load cells that offer precise and reliable measurements for various industrial applications. Our compression load cells are designed to withstand extreme conditions, ensuring durability and accuracy. These load cell sensors are ideal for heavy-duty weighing tasks, including structural testing, industrial automation, and material testing. With our extensive expertise and commitment to innovation, we deliver load cell solutions that meet the stringent demands of our clients, solidifying our reputation as a trusted load cell supplier in the UAE.

• Nominal Output: 2.0 to 3.0 +/-0.1mV/V.
• Combined Error: 0.023% FS.
• Non - Repeatability: 0.01%FS.
• Creep (20 min): 0.03% FS.
• Zero Balance: 1.0% of FS.
• Output Temperature Balance: 0.02% FS.
• Zero Output: +_ 0.2mV.
• Input Resistance: 450 +_4.5 Ohms.
• Output Resistance: 480 +_ 4.8 Ohms.
• Insulation Resistance: >= 5,000,000,000 Ohms.
• Excitation Voltage: 10V (DC/AC).
• Permit Voltage: (5 - 15 VDC/AC).
• Technology: Stainless Steel, Nickel Plated Alloy Steel.
• Capacity: 10T – 150T
• Application: Truck, Track, Platform, Silo, Hopper Sales, Process weighing Scales etc.

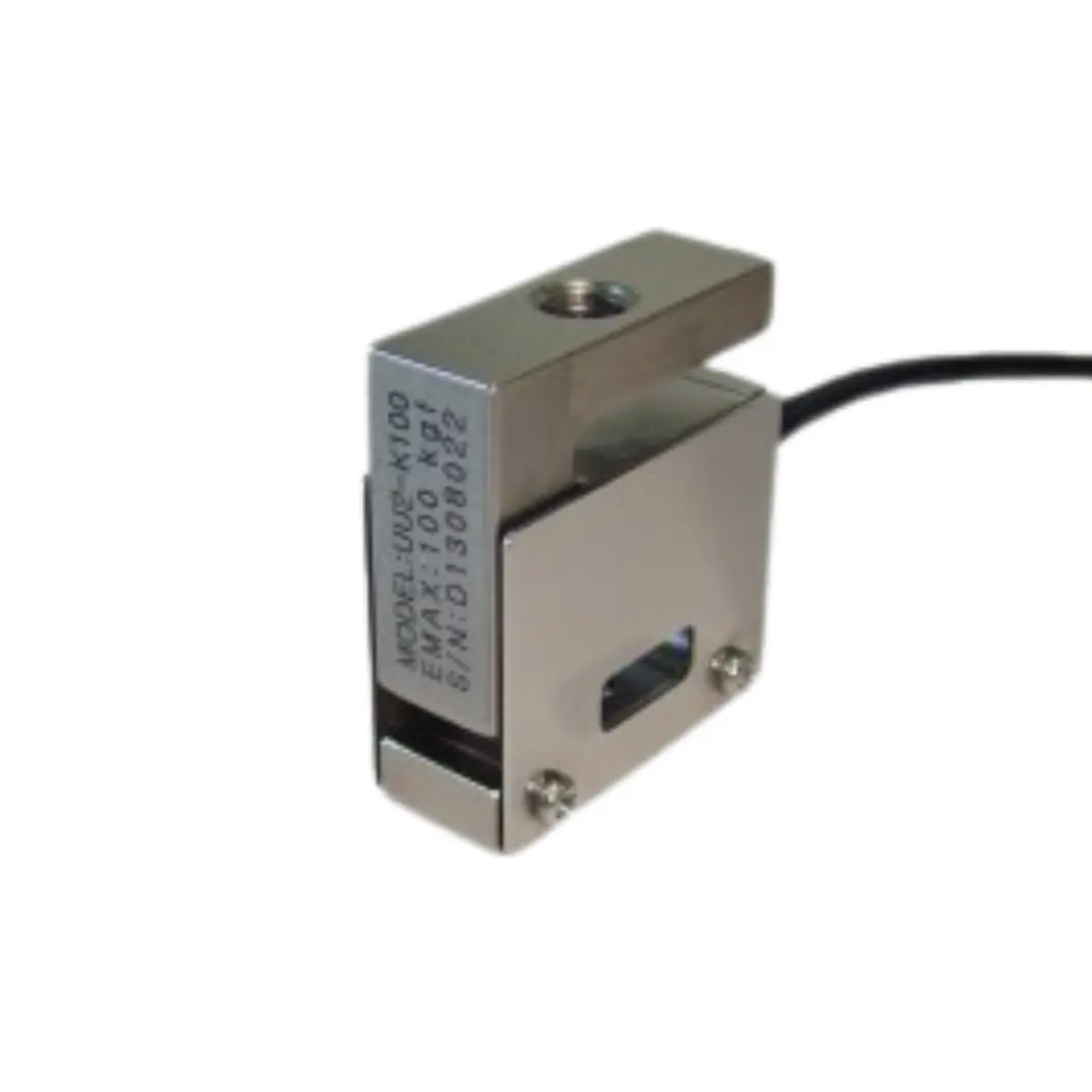

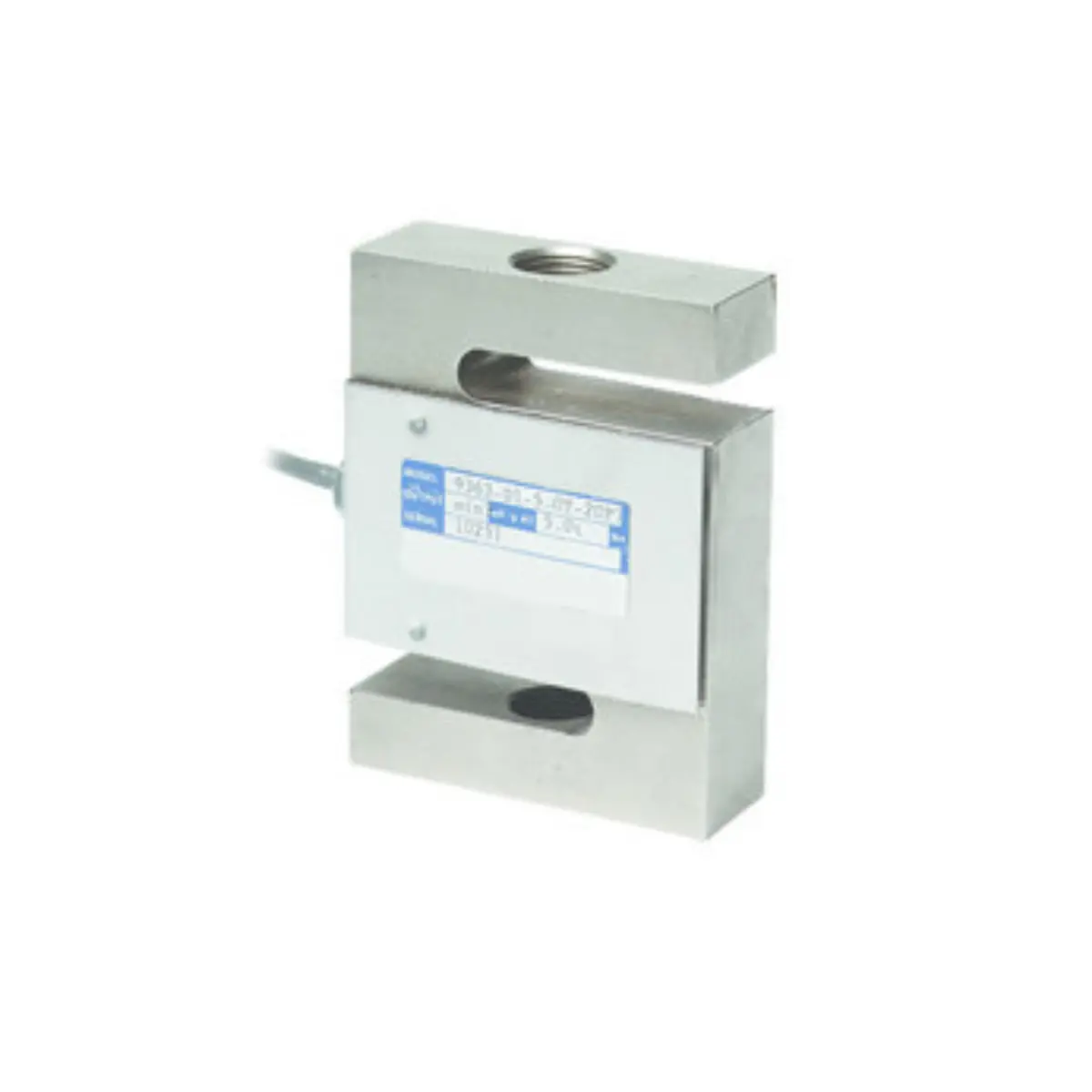

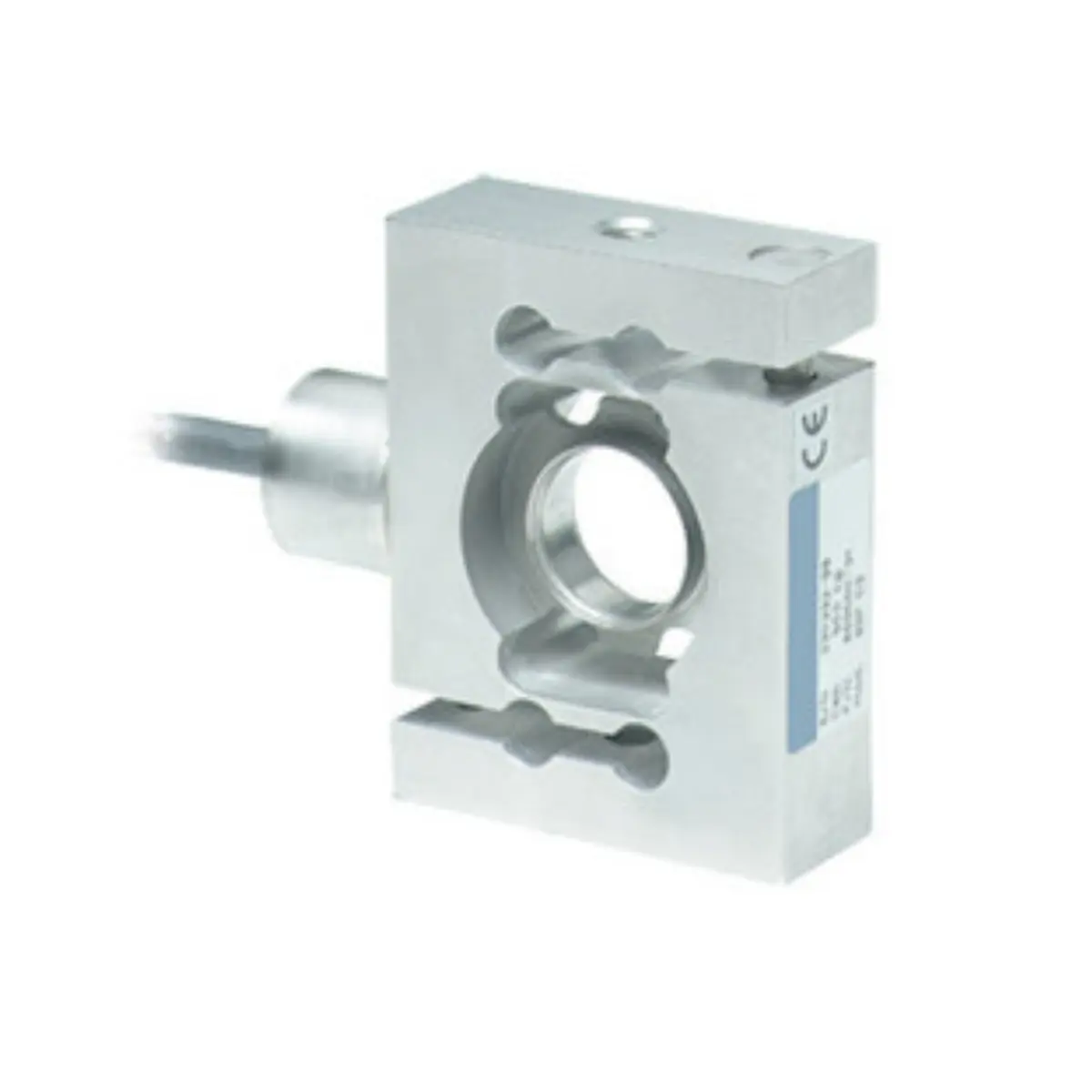

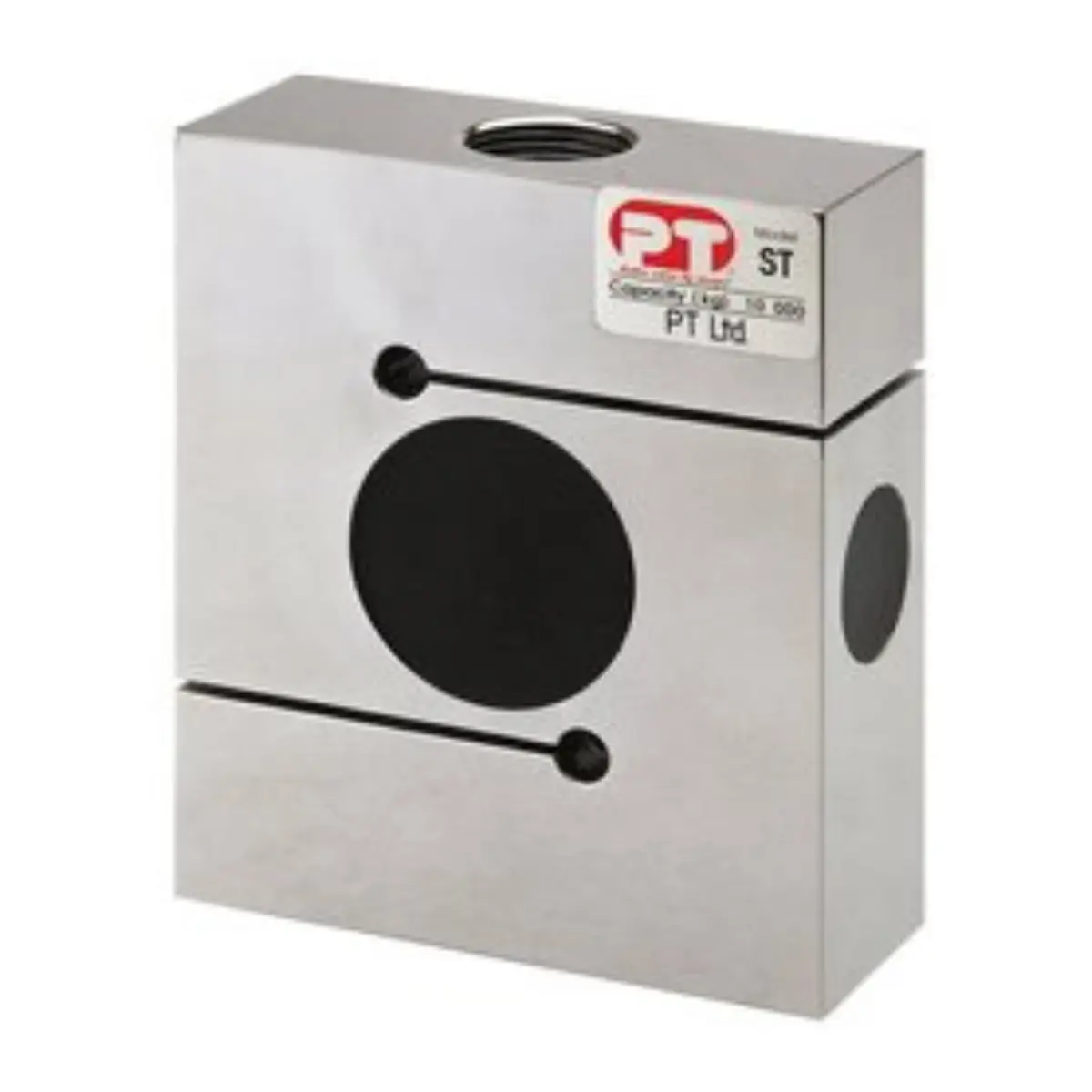

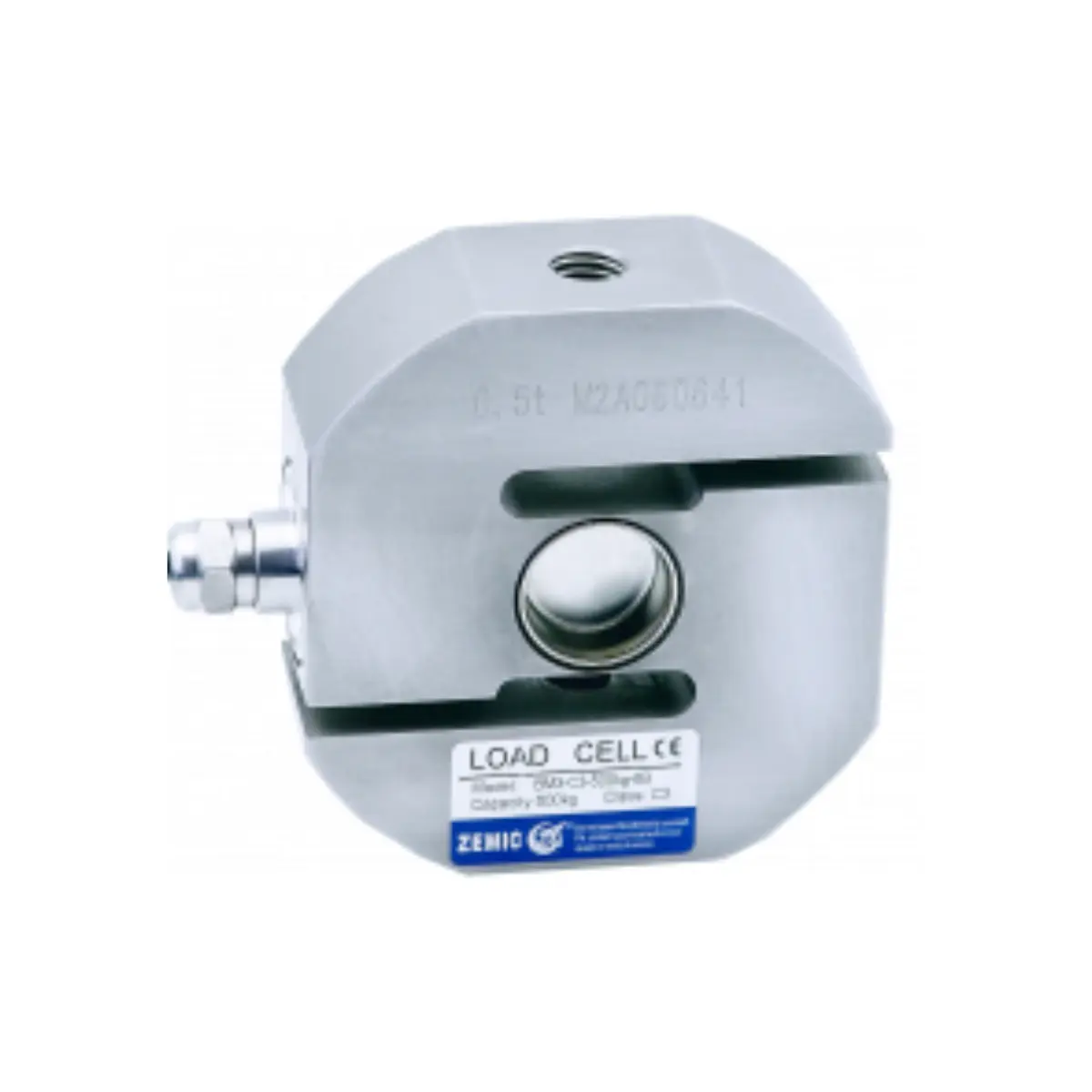

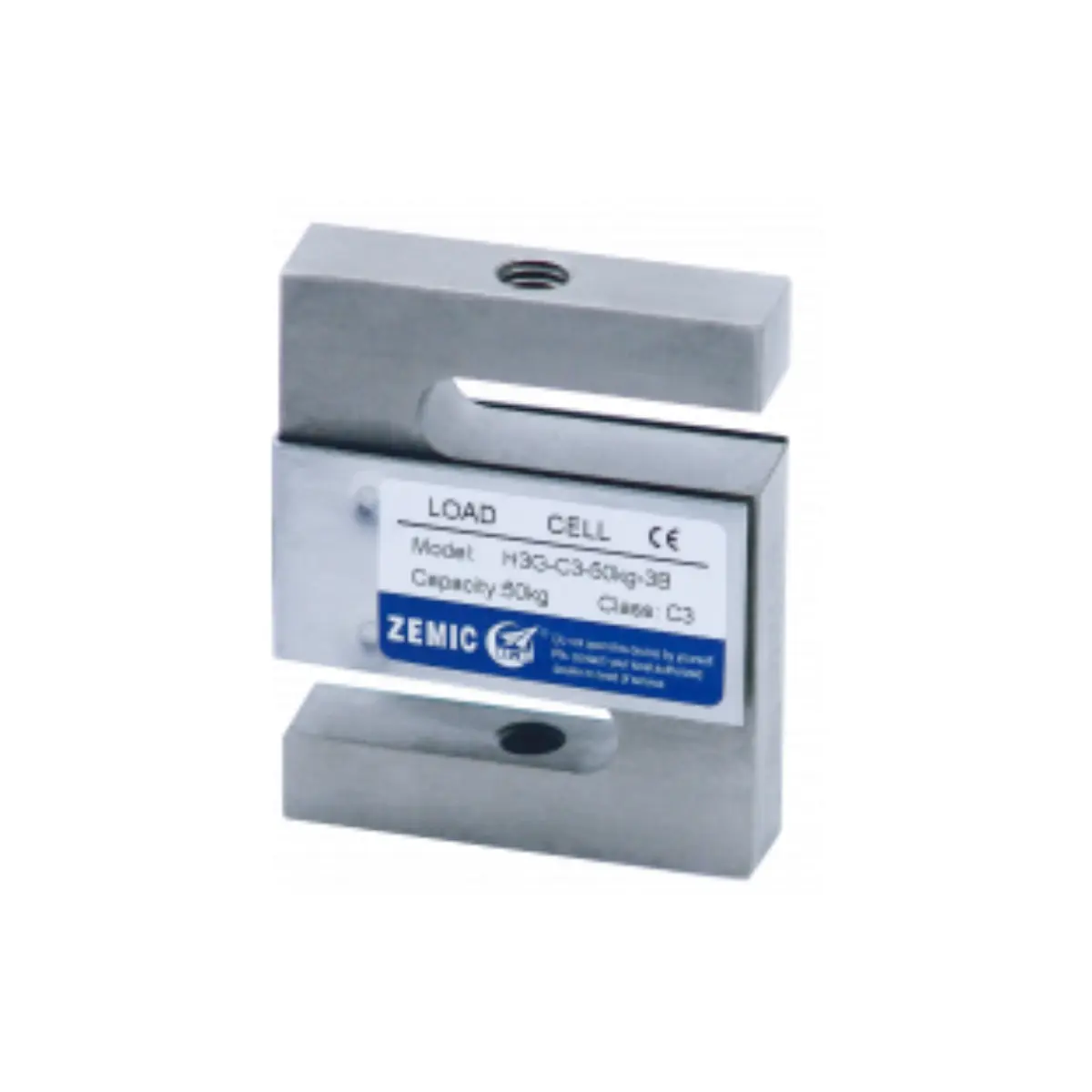

S TYPE LOAD CELLS

As a premier load cell manufacturer and supplier in UAE, we offer high-quality S Type load cells designed to provide accurate and reliable measurements. Our S Type load cells are versatile load cell sensors, ideal for both tension and compression applications, ensuring optimal performance across various industrial processes. Manufactured with precision, these load cells are known for their durability and accuracy, making them a preferred choice for industries requiring dependable weight measurements. Trust us as your go-to load cell supplier in UAE for advanced and efficient weighing solutions.

• Nominal Output: 2.0 to 3.0 +/-0.1mV/V.
• Combined Error : 0.02% FS.
• Non - Repeatability: 0.01%FS.
• Zero Balance: 1.0% FS.
• Input Resistance: 430 +_6.05 Ohms.
• Output Resistance: 350 +_ 3.5 Ohms.
• Insulation Resistance: >= 5,000,000,000 Ohms.
• Excitation Voltage: 10V (DC/AC).
• Permit Voltage: (5 - 15 VDC/AC).
• Technology: Stainless Steel, Aluminium
• Capacity: 25kg – 10,000kg
• Application: Overhead Track scales, Hybrid Scales, Belt Scales, Process weighing etc.

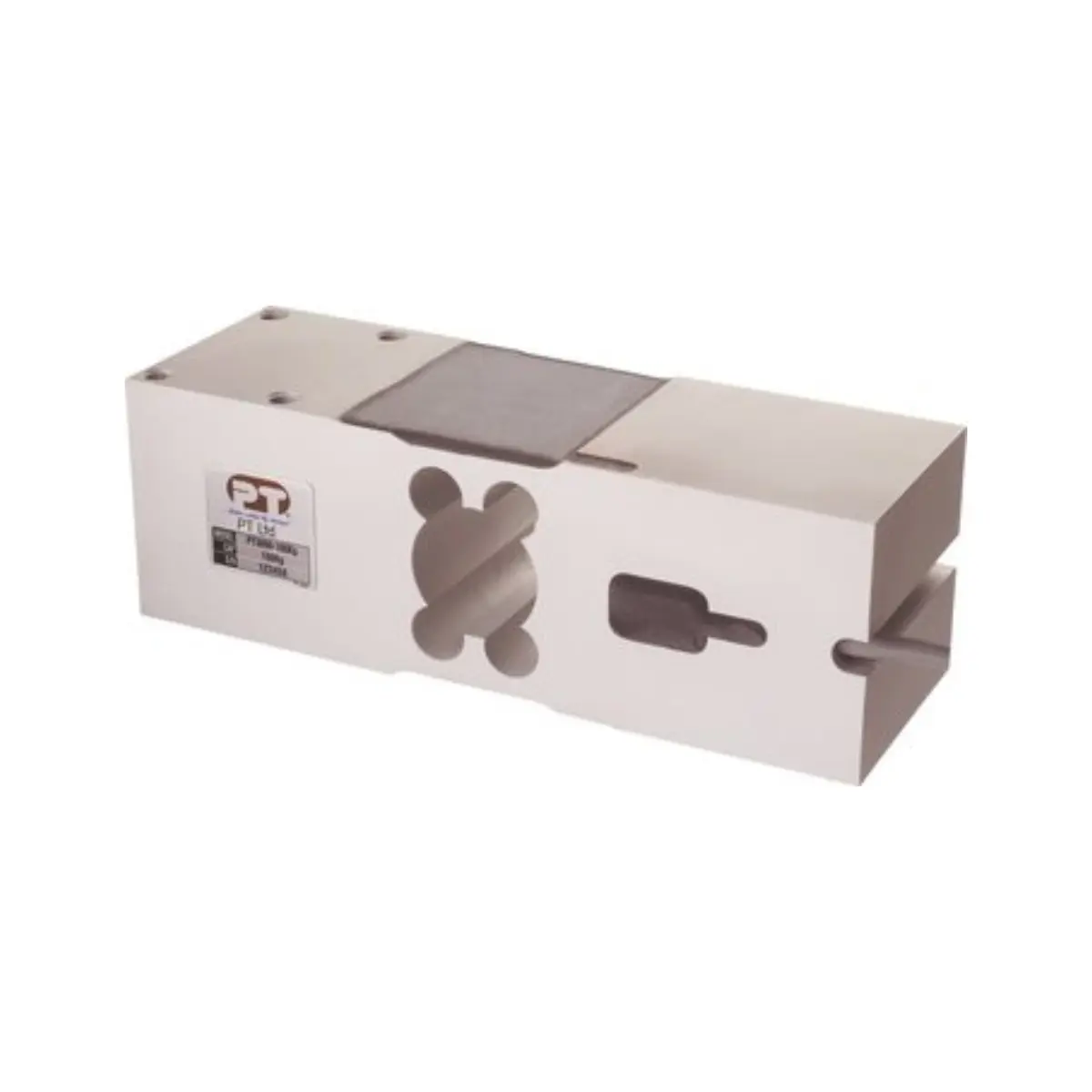

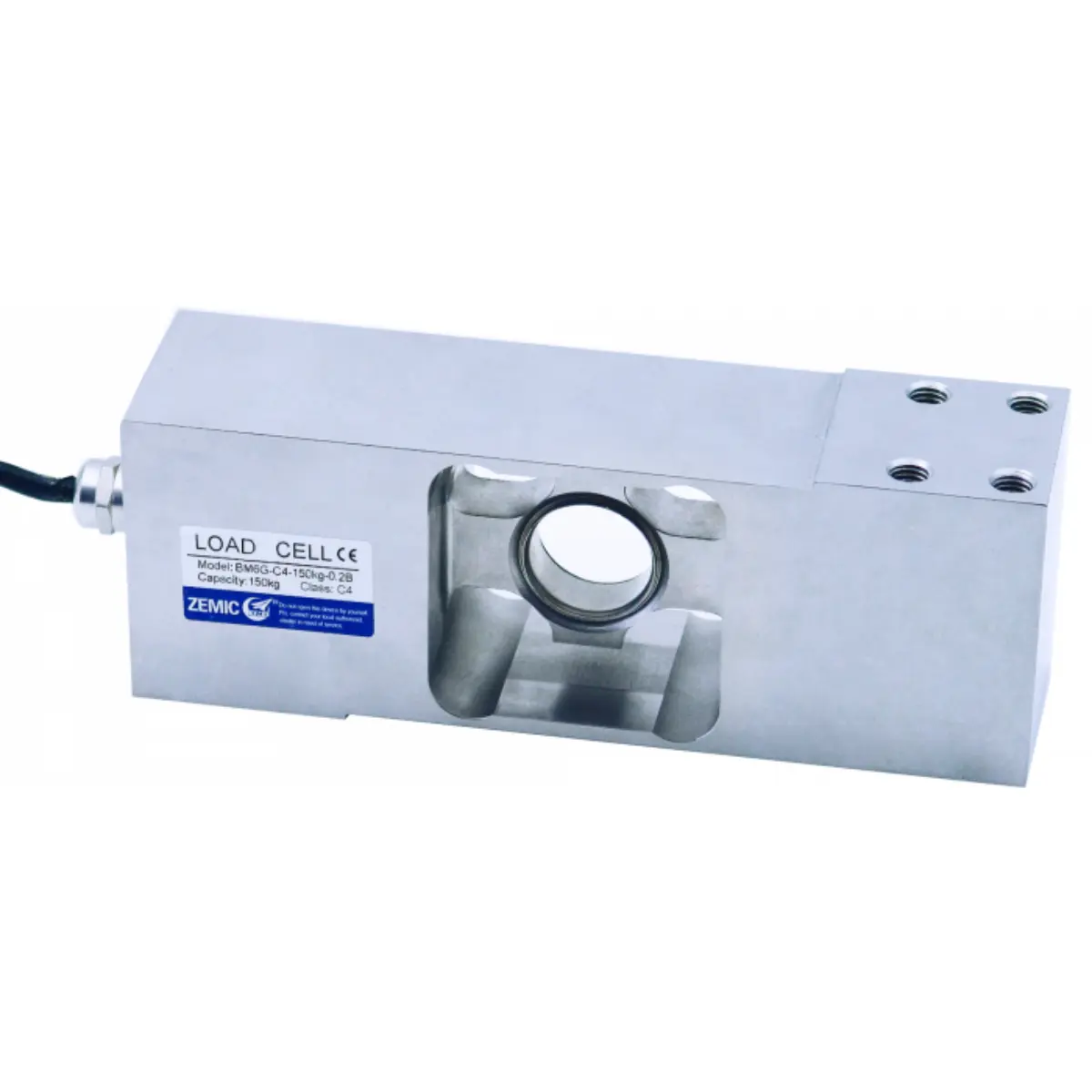

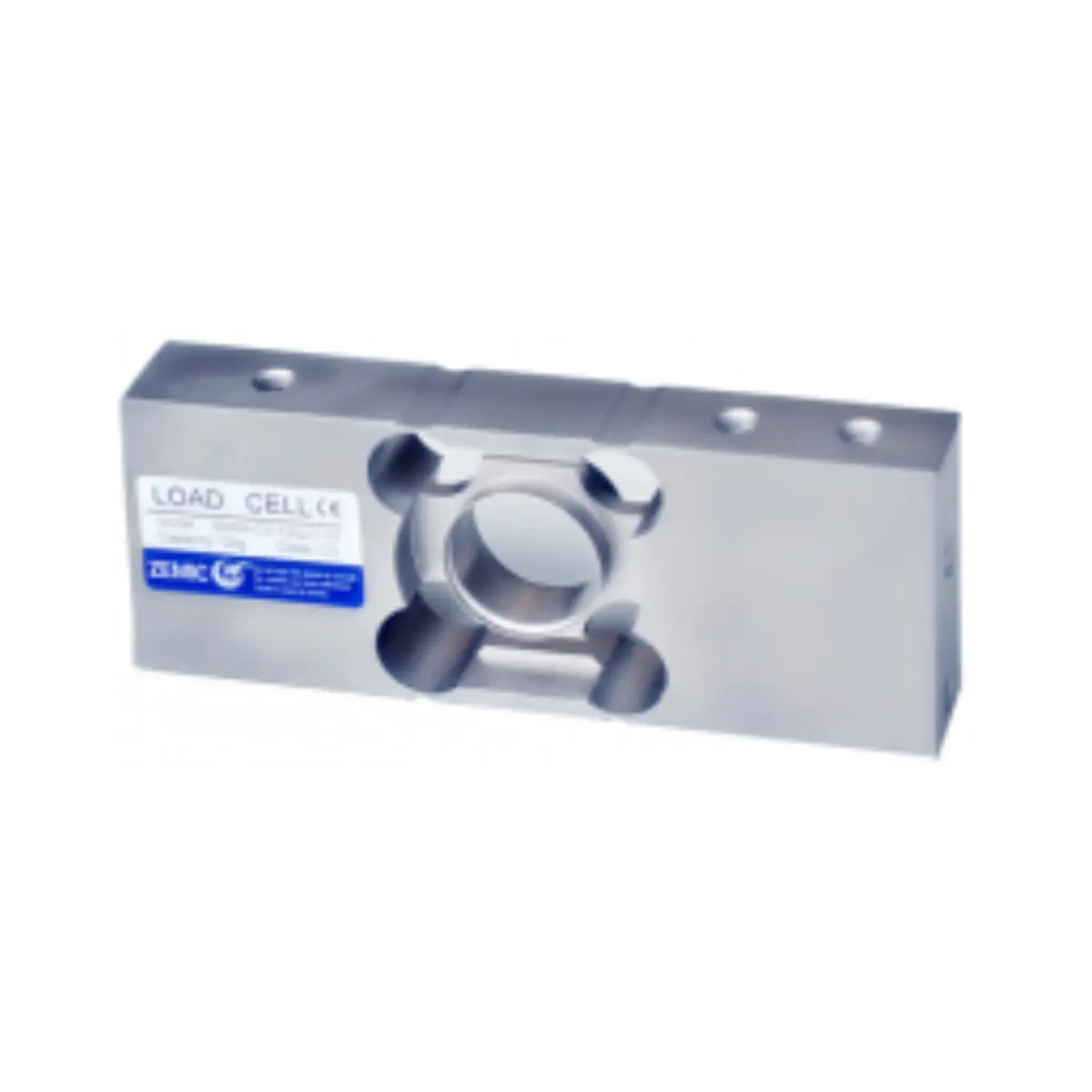

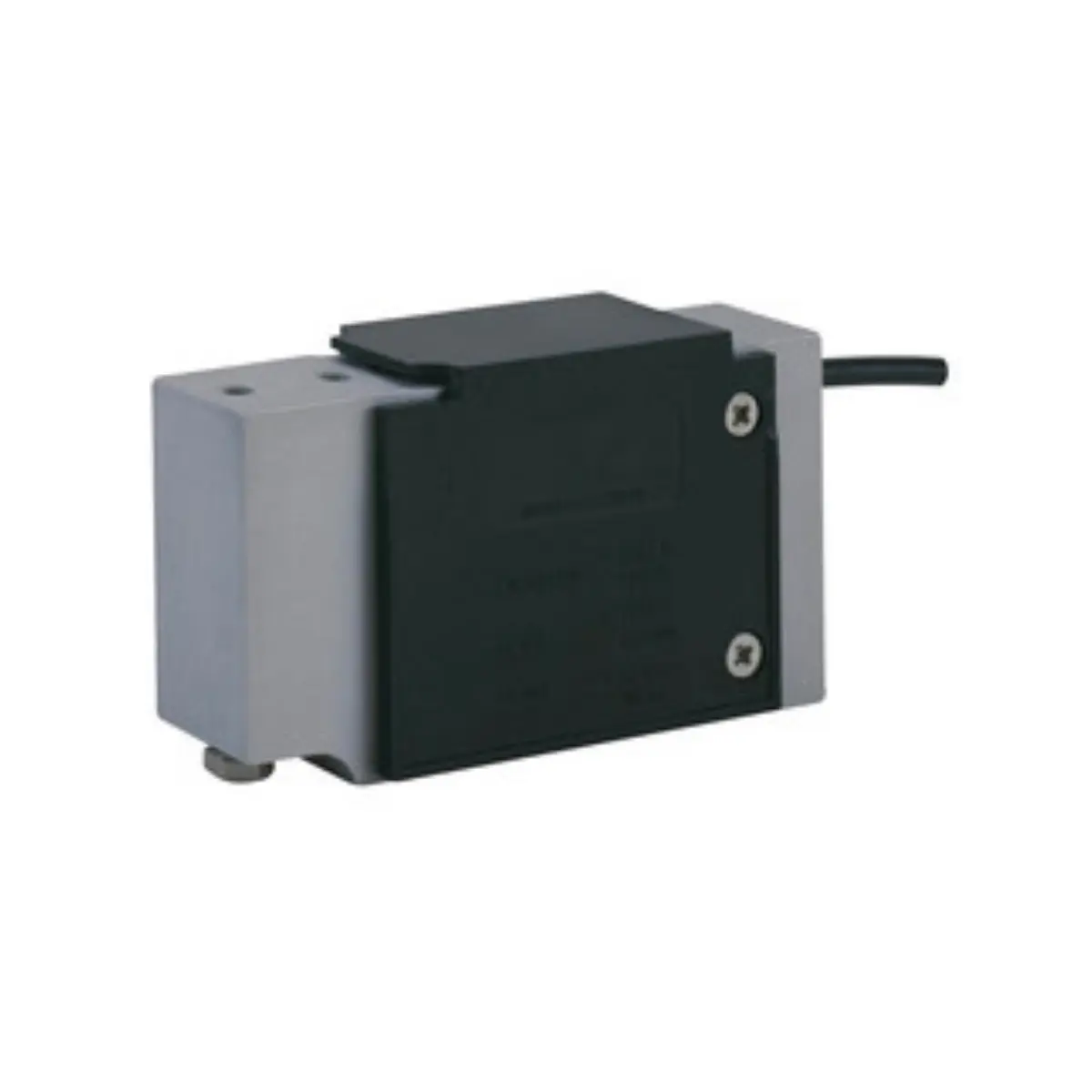

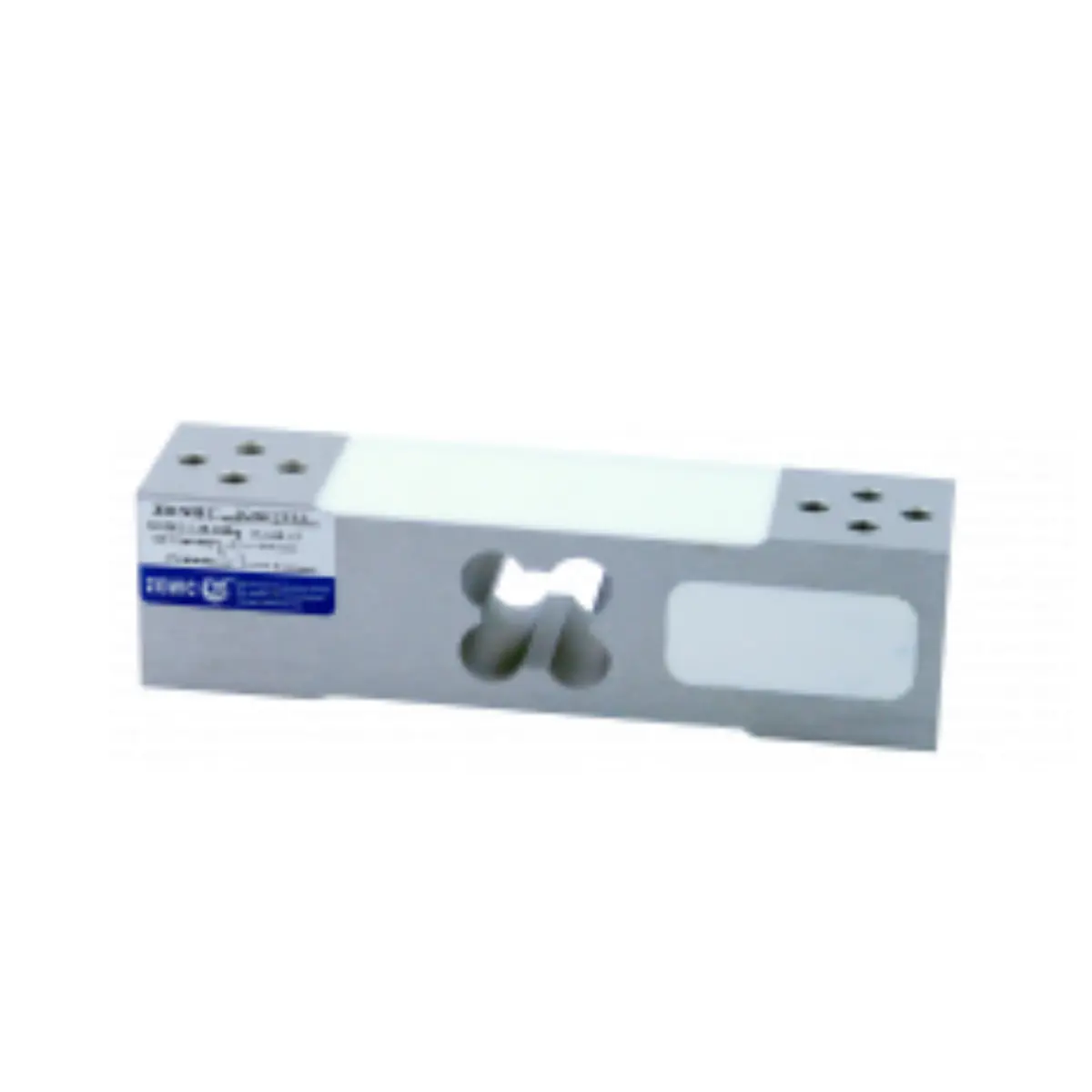

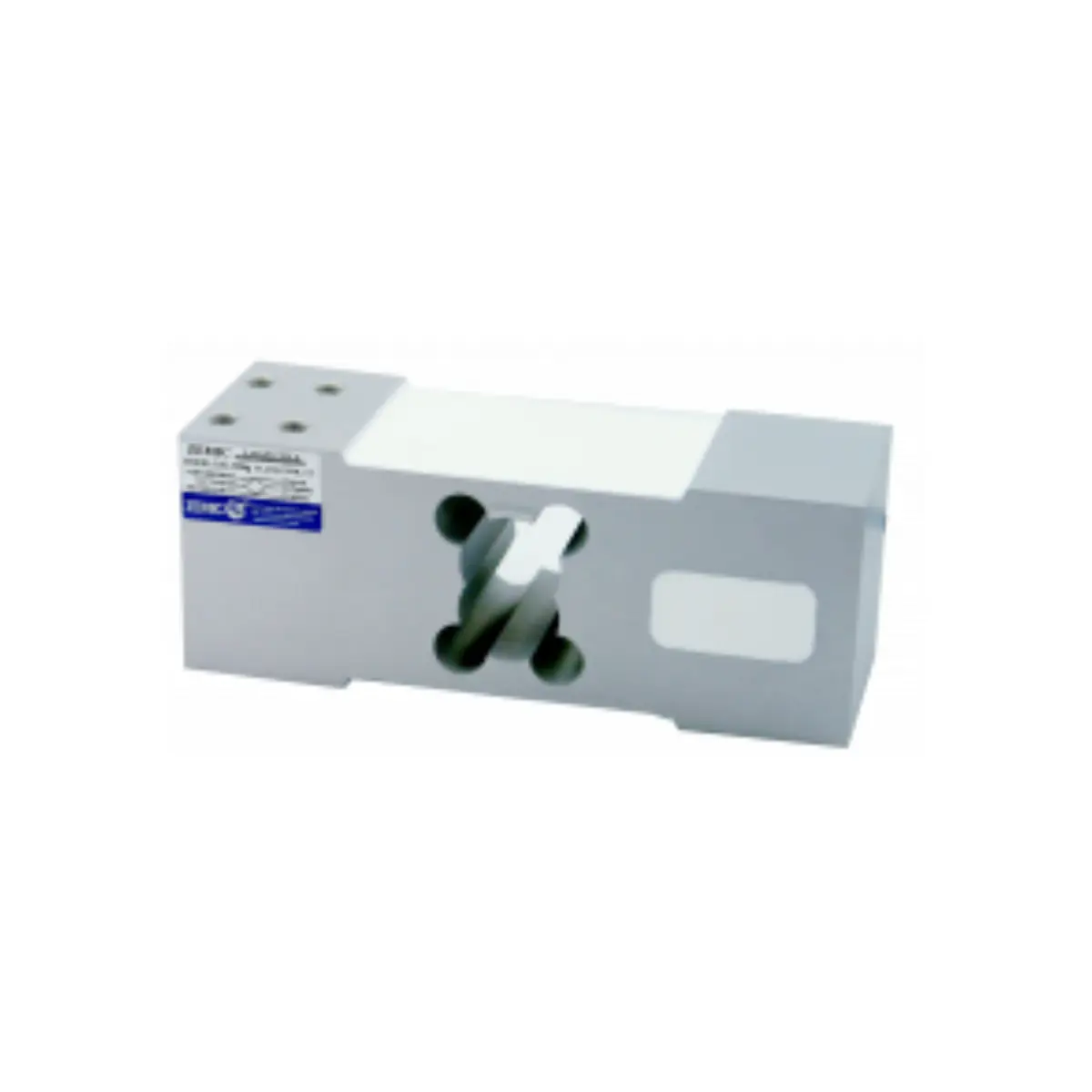

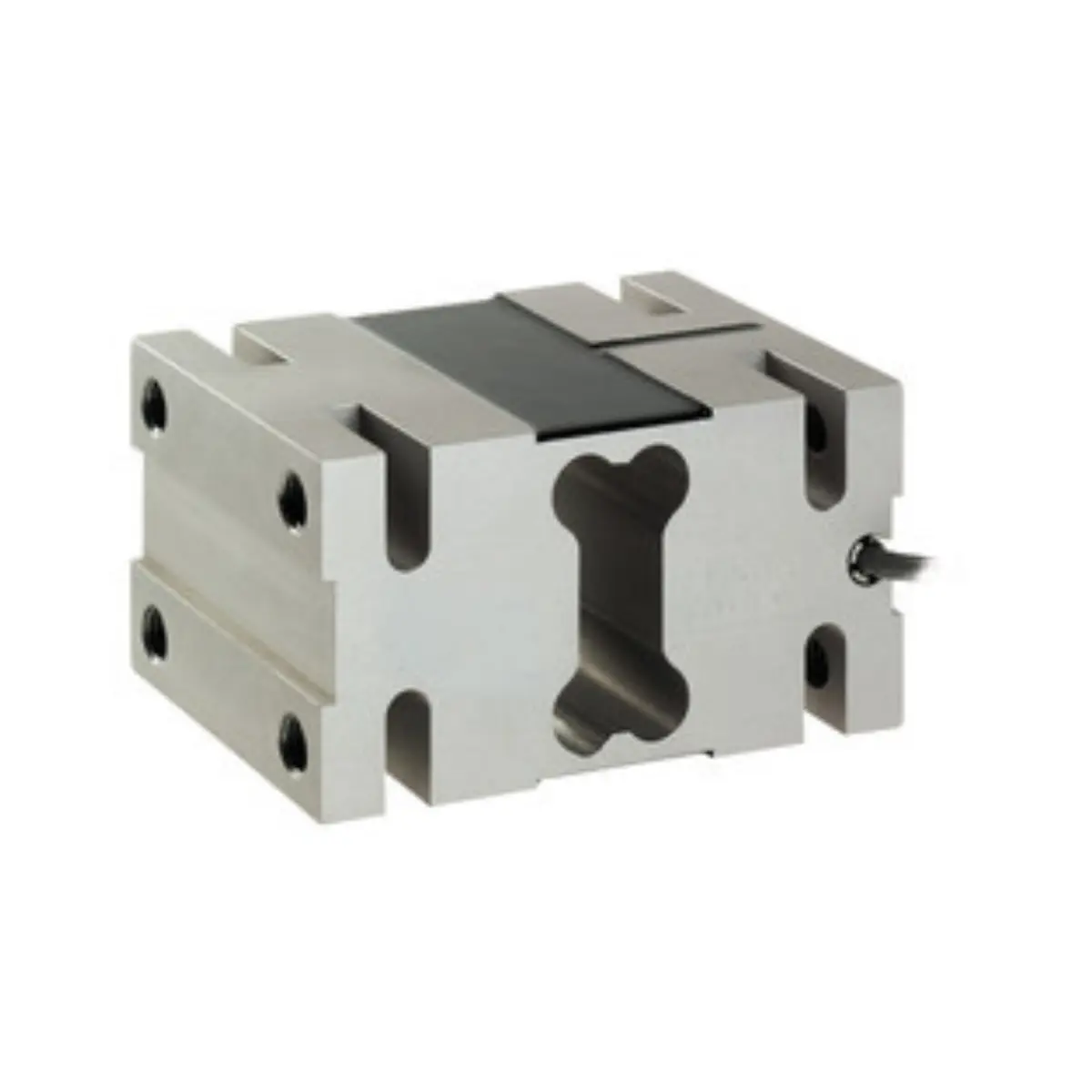

SINGLE POINT LOAD CELLS

Single-point Point Load Cells are vital for precision weighing applications, known for their exceptional accuracy and reliability. As a leading manufacturer, we offer advanced sensors designed to meet the diverse needs of various industries. Our Single Point Load Cells deliver excellent performance, ensuring precise weight measurements even in dynamic environments. These sensors are ideal for platform scales, conveyor scales, and other weighing systems requiring consistent accuracy. As a trusted supplier in the UAE, we are committed to providing top-quality solutions that enhance the efficiency and accuracy of your weighing processes.

• Nominal Output: 2.0 to 3.0 +/-0.1mV/V.
• Combined Error : 0.023% FS.
• Non - Repeatability: 0.02%FS.
• Zero Balance: 2.0% FS.
• Input Resistance: 415 +_15 Ohms.
• Output Resistance: 350 +_ 3 Ohms.
• Insulation Resistance: >= 5,000,000,000 Ohms.
• Excitation Voltage: 10V (DC/AC).
• Permit Voltage: (5 - 15 VDC/AC).
• Technology: Stainless Steel, Aluminium
• Capacity: 3kg – 2000kg
• Application: Weighing Platforms, Belt Scales, Process weighing etc.

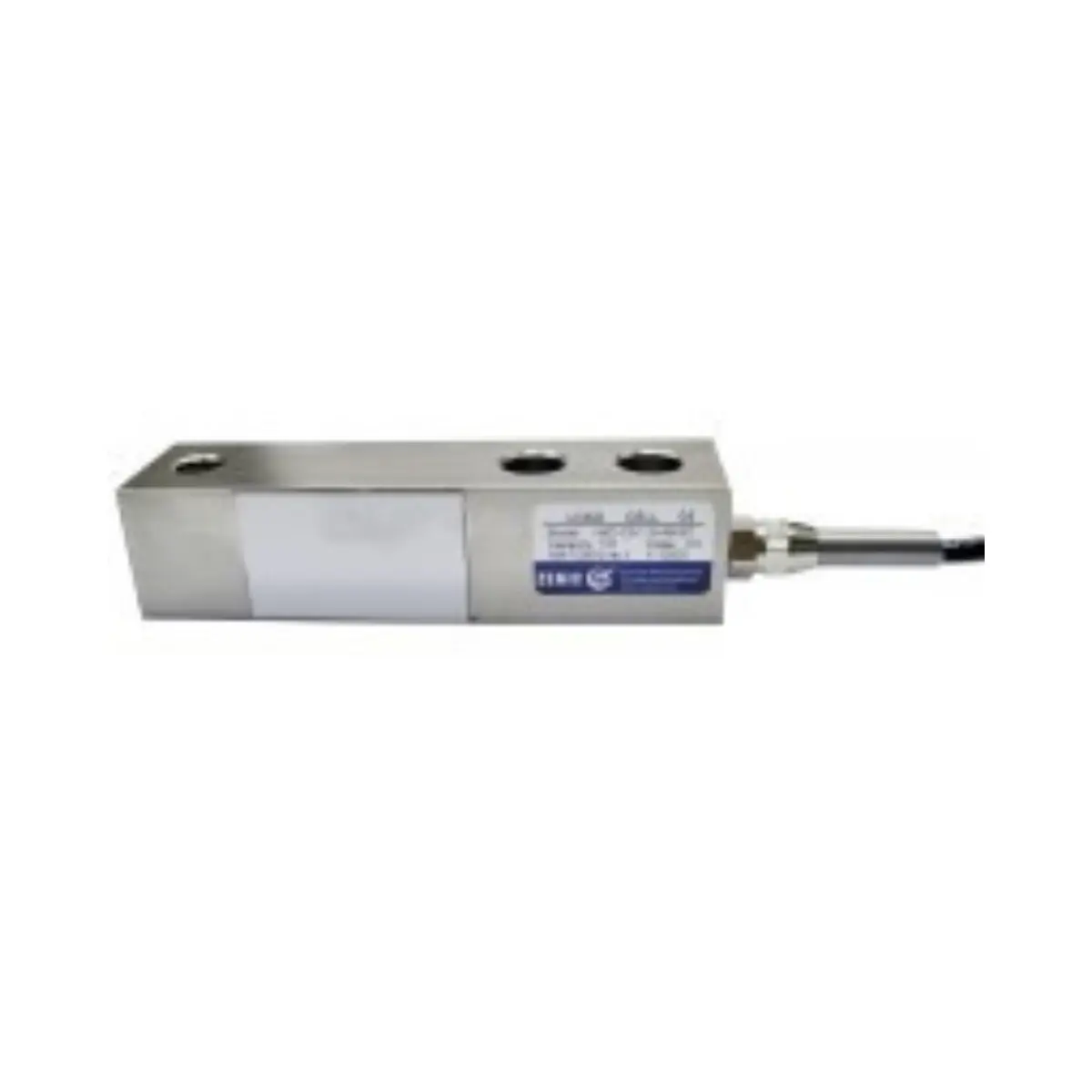

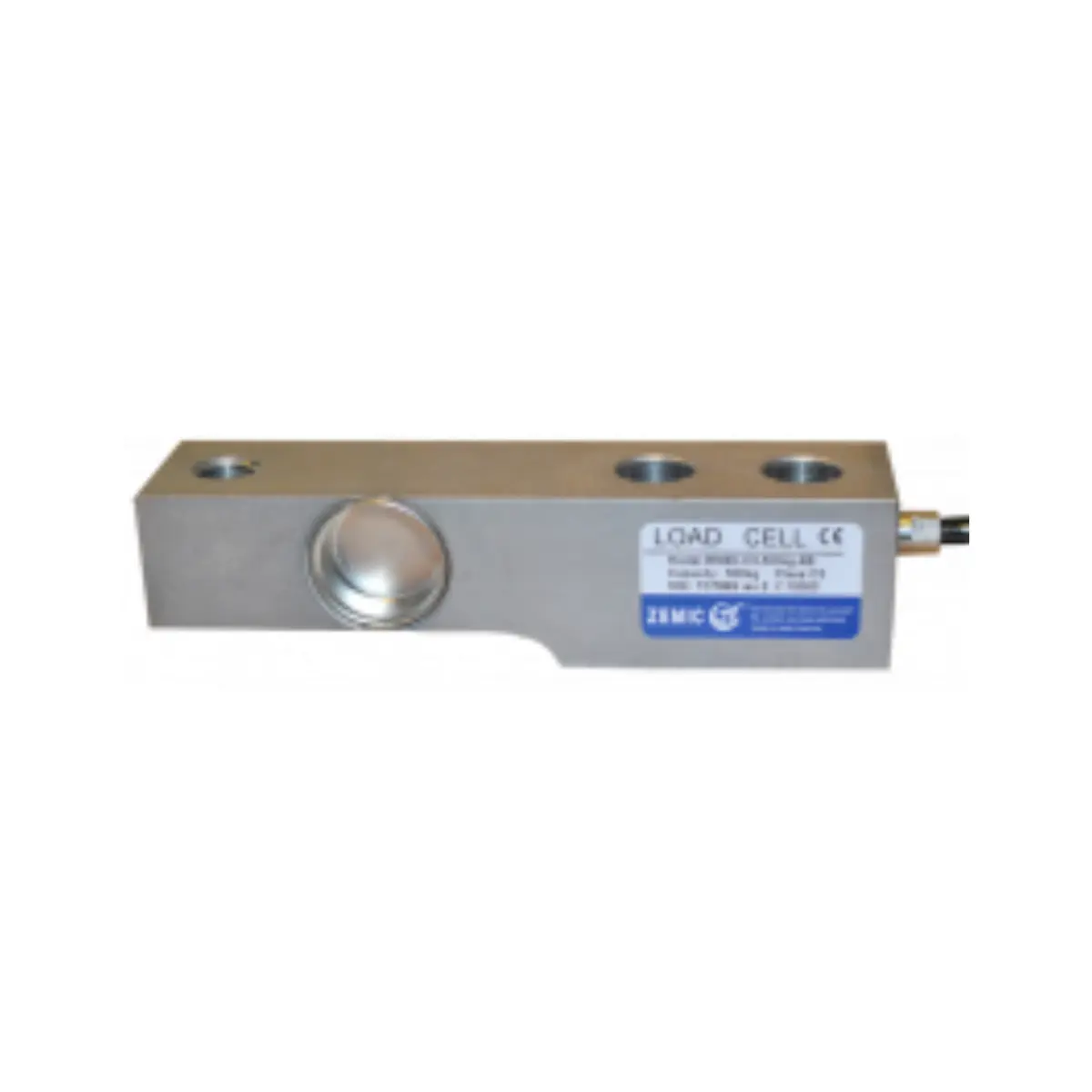

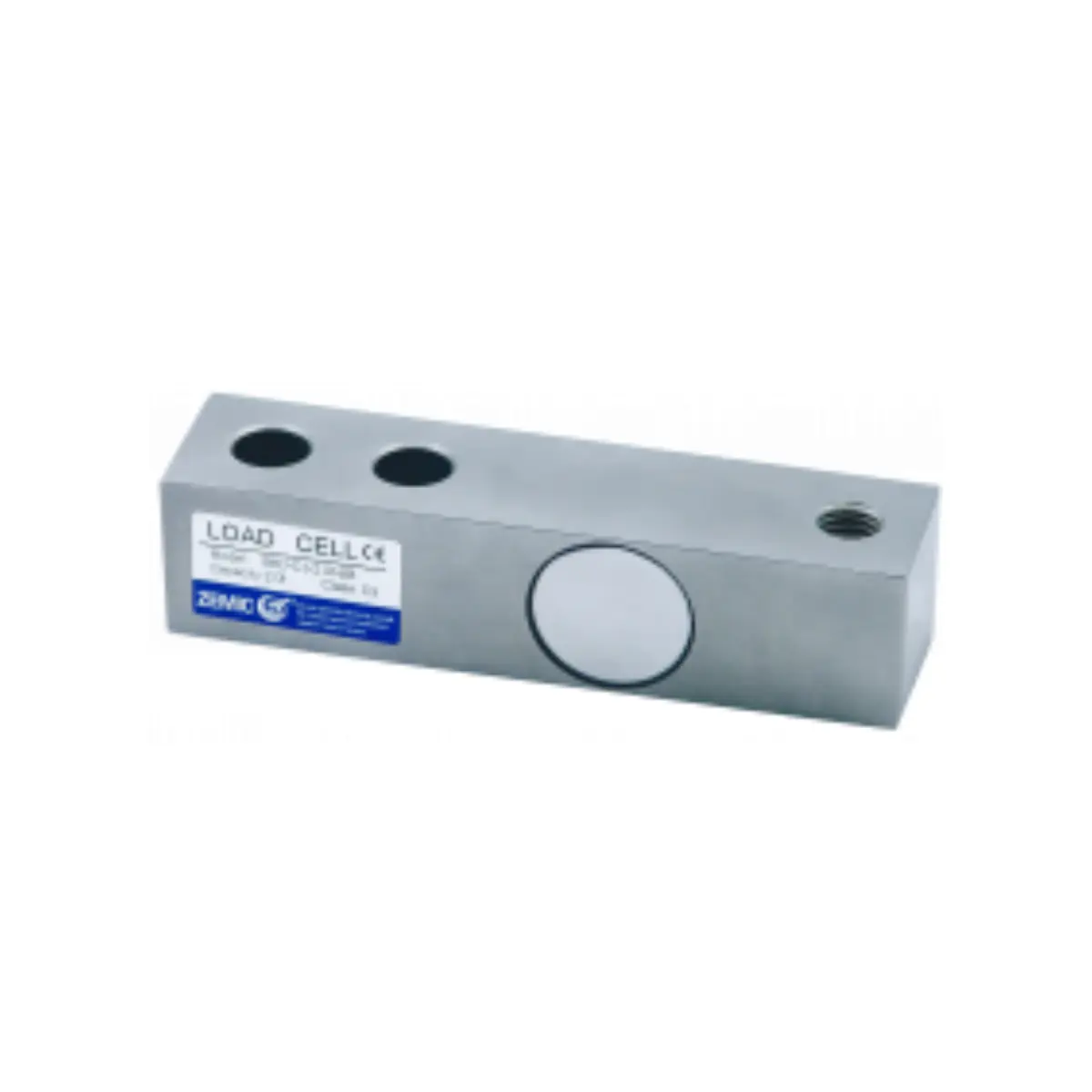

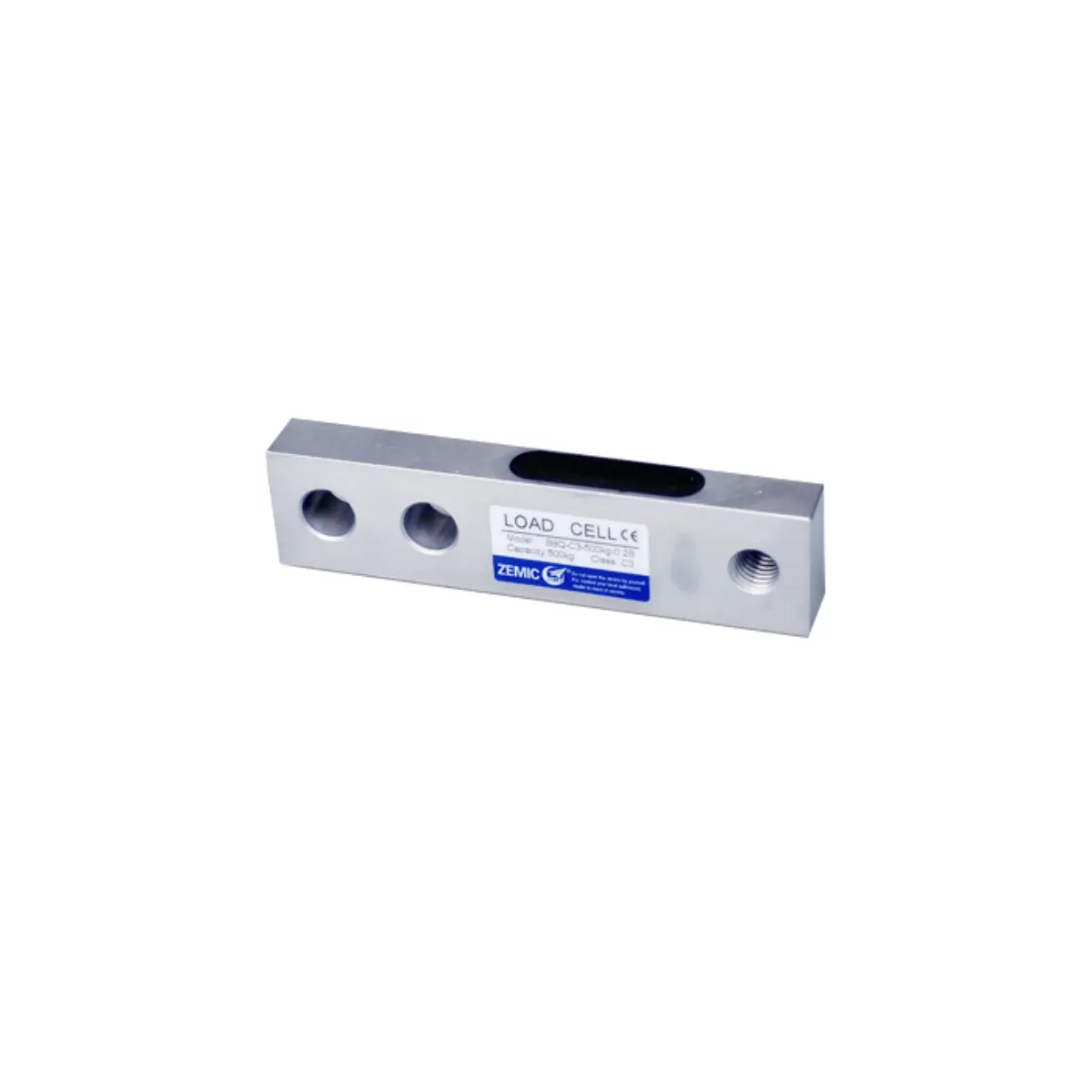

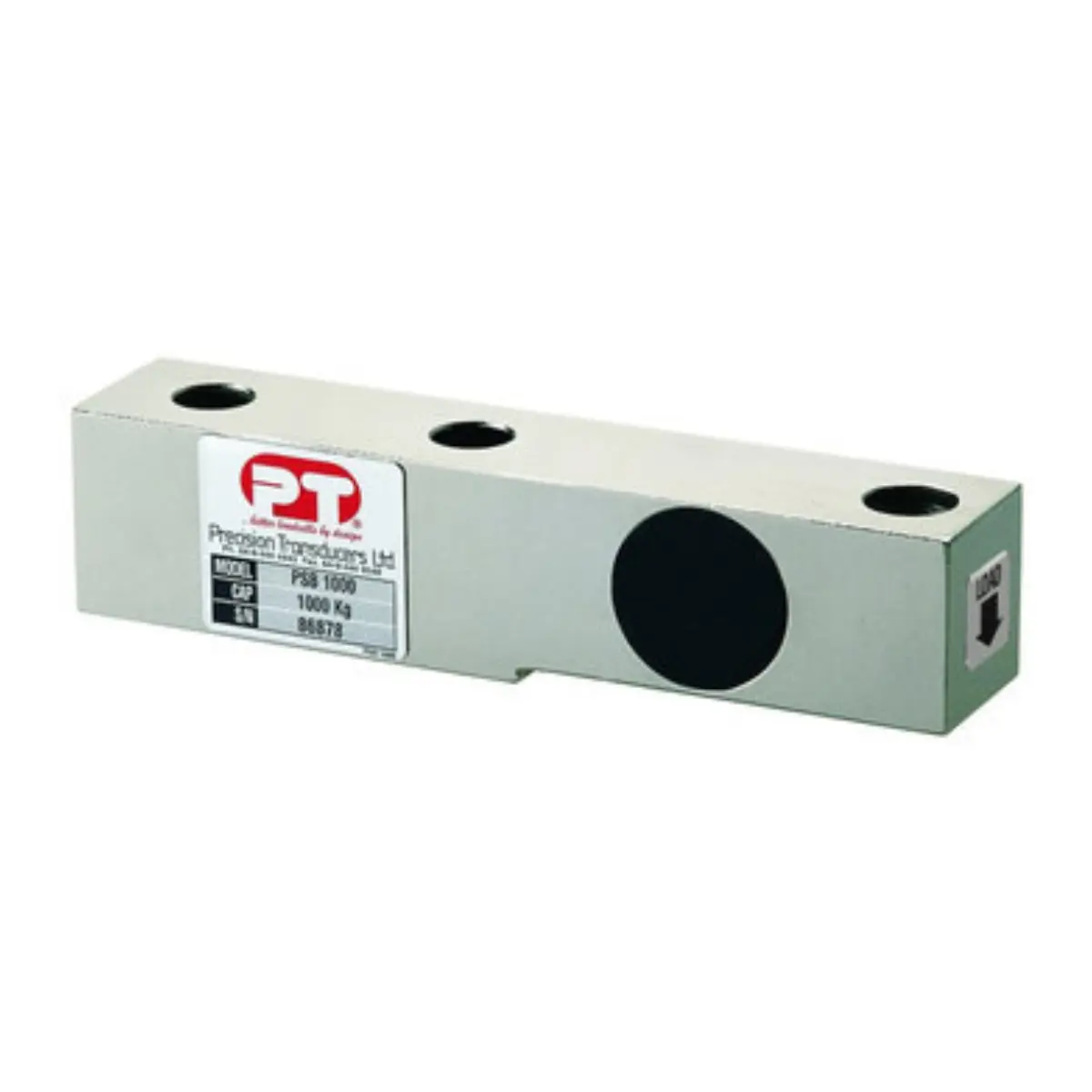

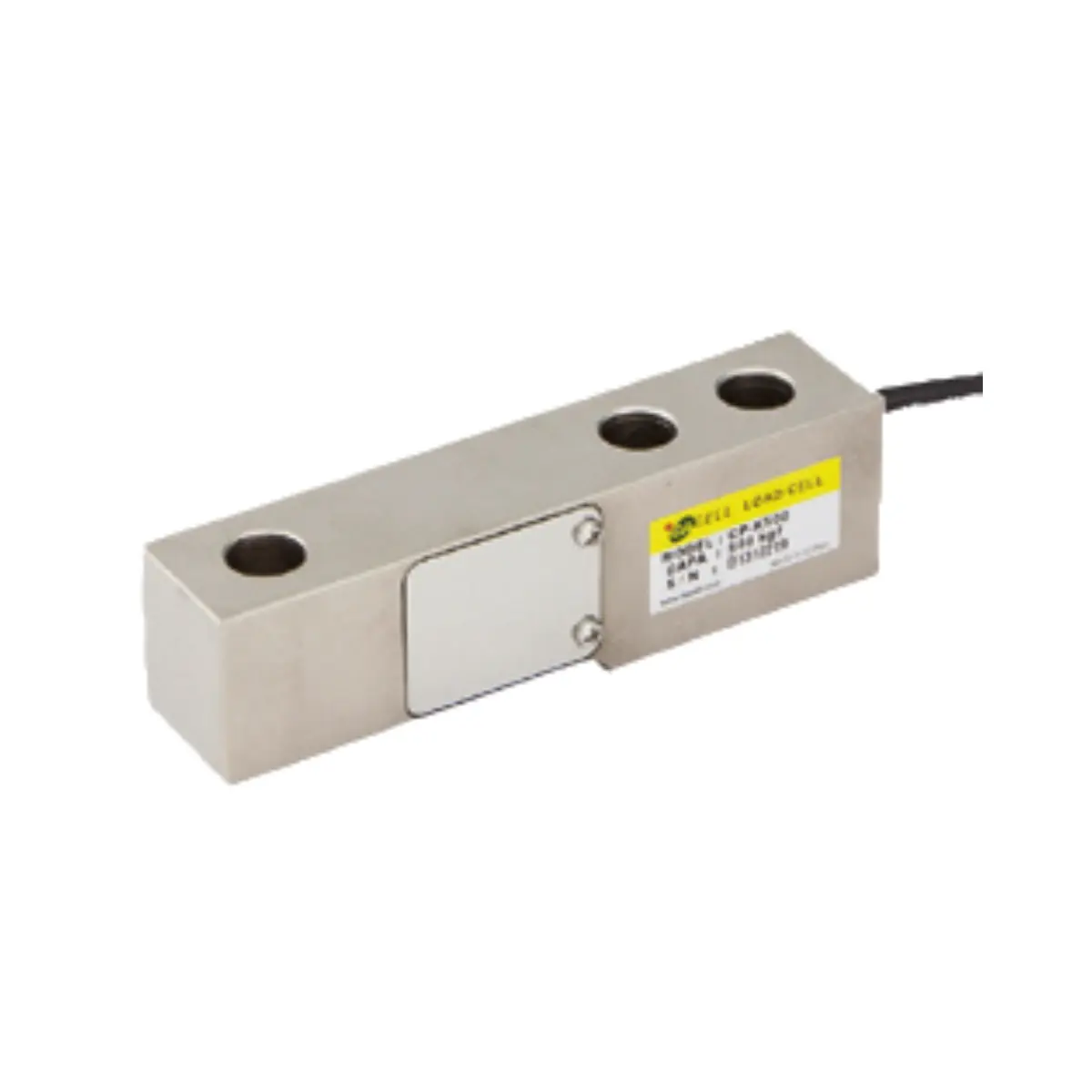

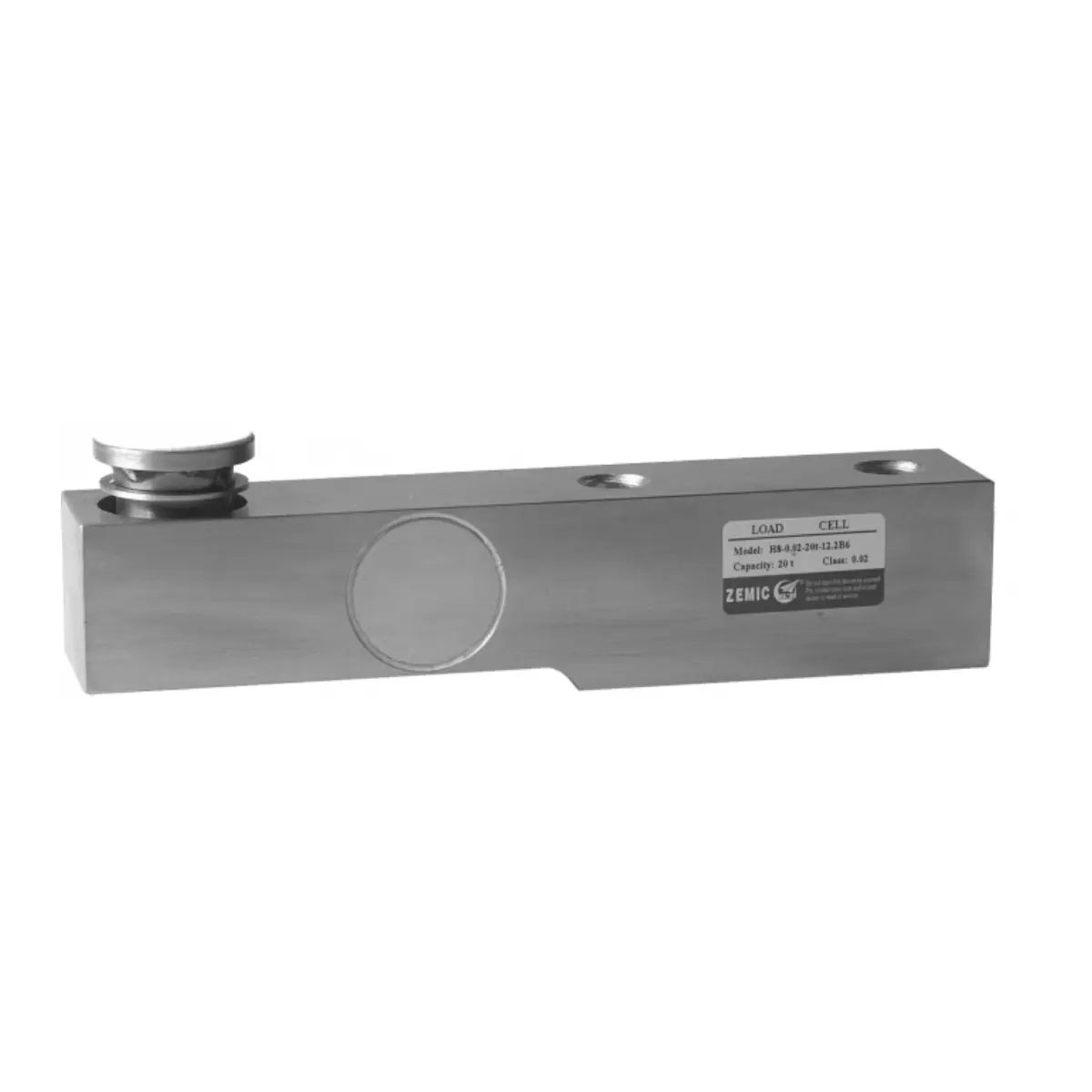

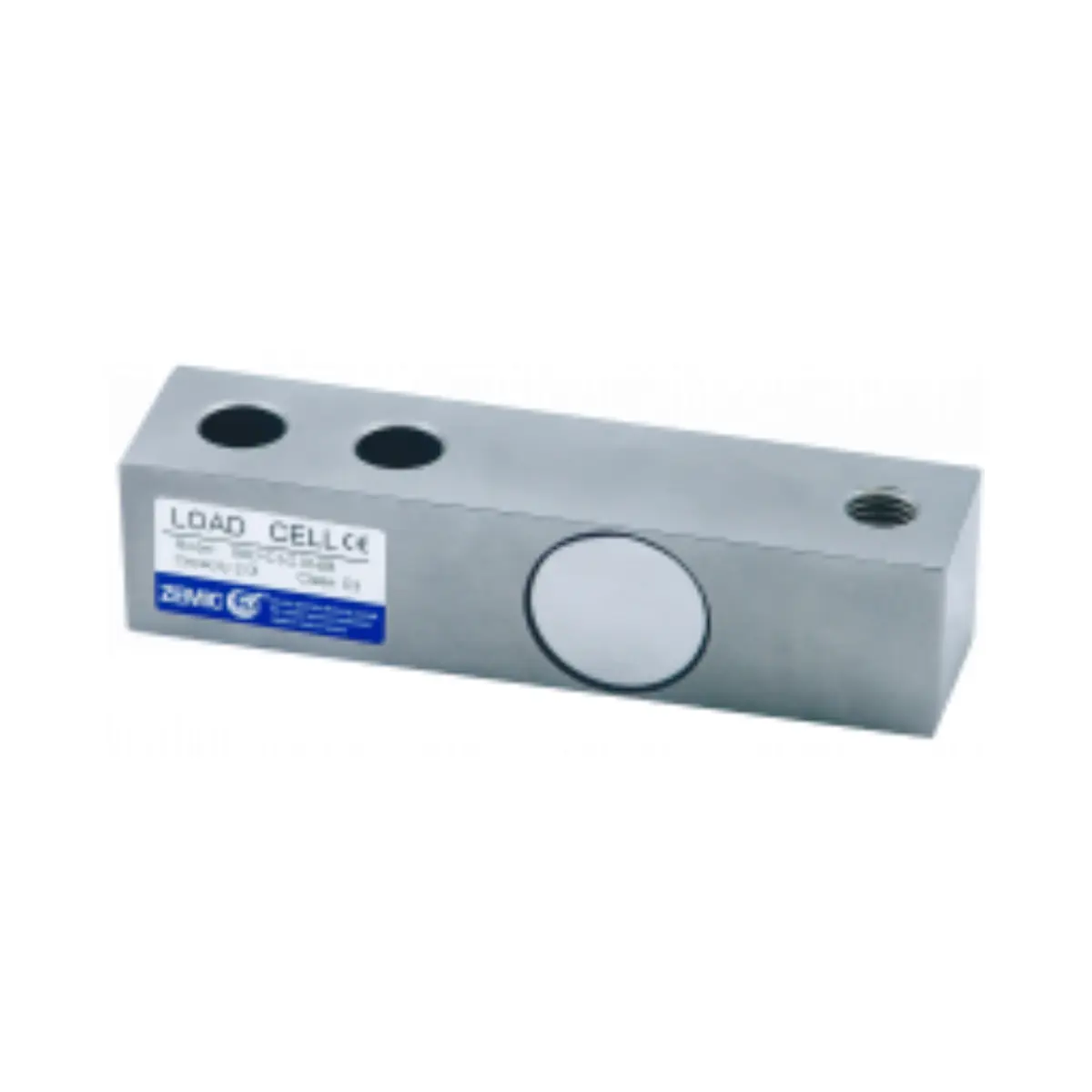

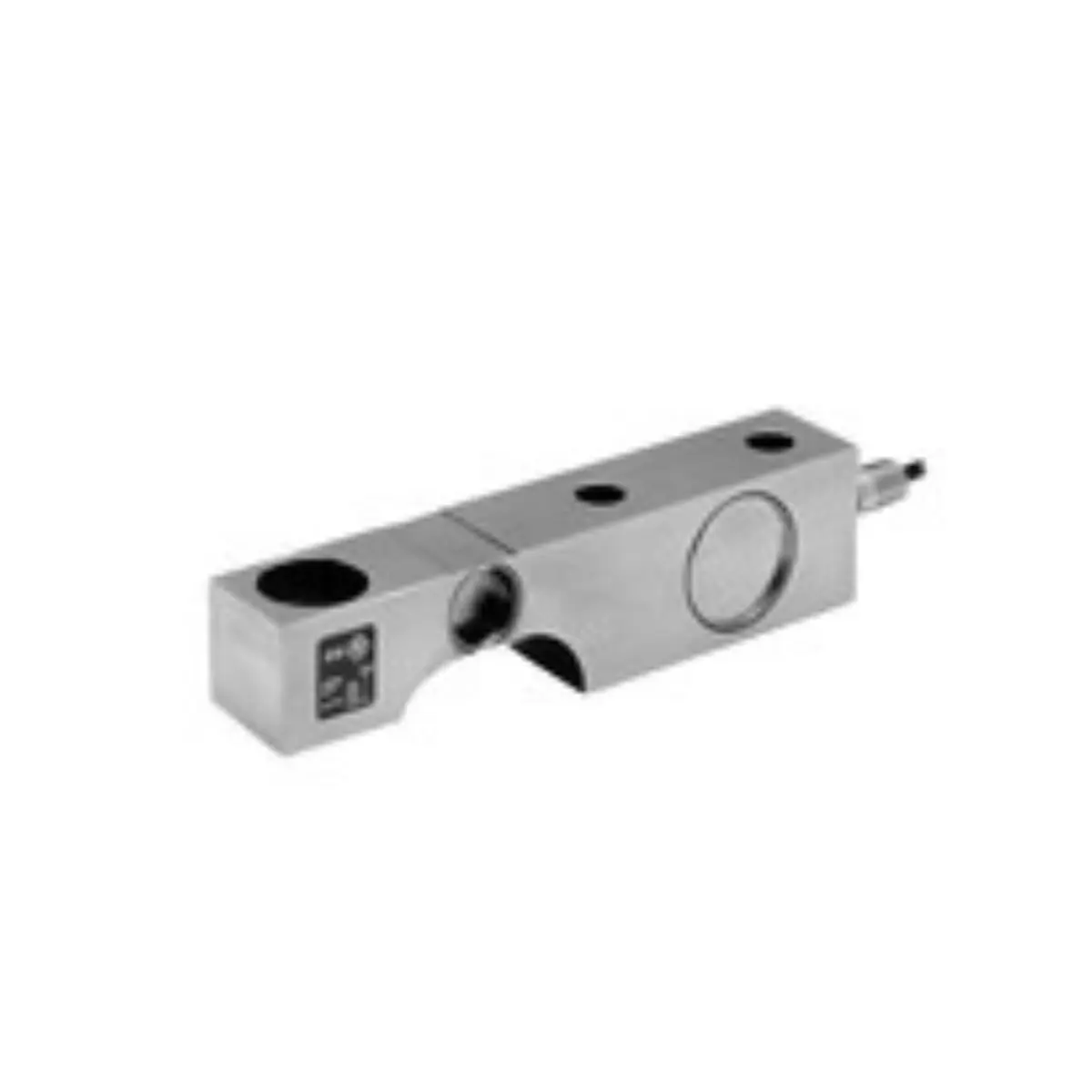

SHEAR BEAM LOAD CELLS

As a best and experienced load cell supplier in UAE, we offer high-precision shear beam load cells designed for optimal performance in industrial applications. These robust load cell sensors are ideal for platform scales, tank and hopper weighing systems, and other heavy-duty weighing tasks. Engineered for durability and accuracy, our shear beam load cells ensure reliable weight measurement, even in challenging environments. Trust our expertise in providing top-quality load cell solutions to enhance your operational efficiency and accuracy.

• Nominal Output: 2.0 to 3.0 +/-0.1mV/V.
• Combined Error : 0.03% FS.
• Non - Repeatability: 0.01%FS.
• Zero Balance: 1.0% FS.
• Input Resistance: 350 +_3.5 Ohms.
• Output Resistance: 350 +_ 3.5 Ohms.
• Insulation Resistance: >= 5,000,000,000 Ohms.
• Excitation Voltage: 10V (DC/AC).
• Permit Voltage: (5 - 15 VDC/AC).
• Technology: Stainless Steel, Aluminium
• Capacity: 3kg – 2000kg
• Application: Weighing Platforms, Belt Scales, Process weighing etc.

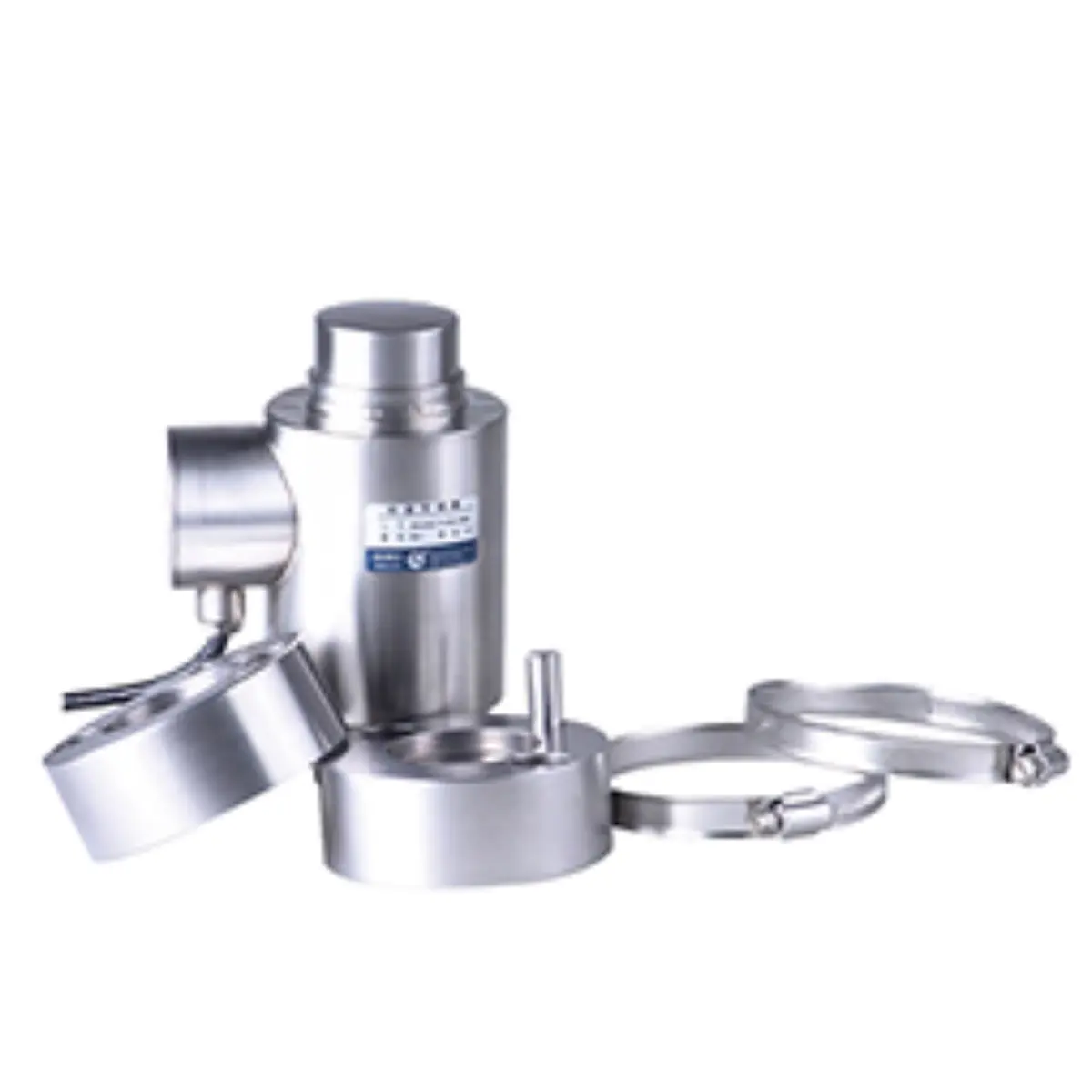

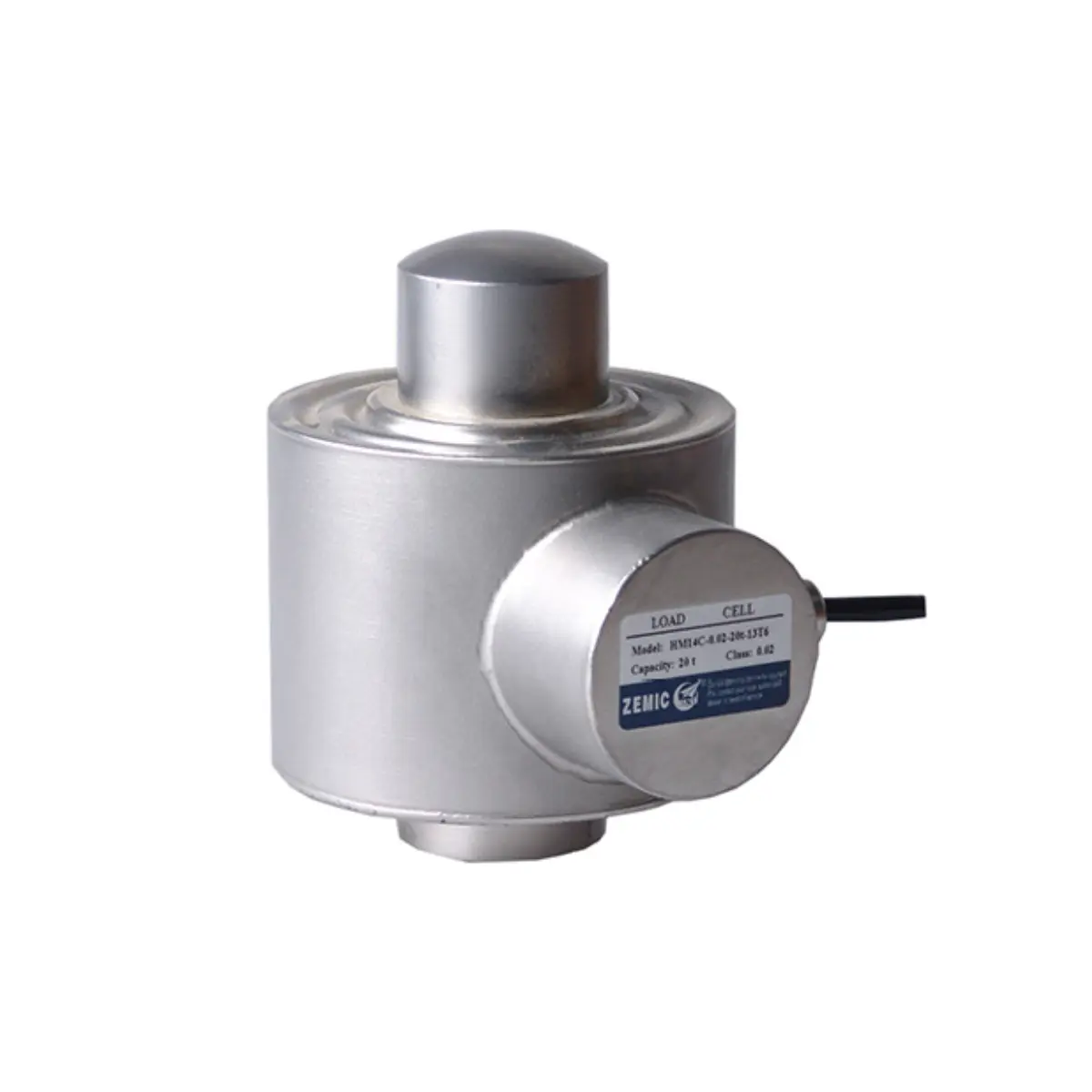

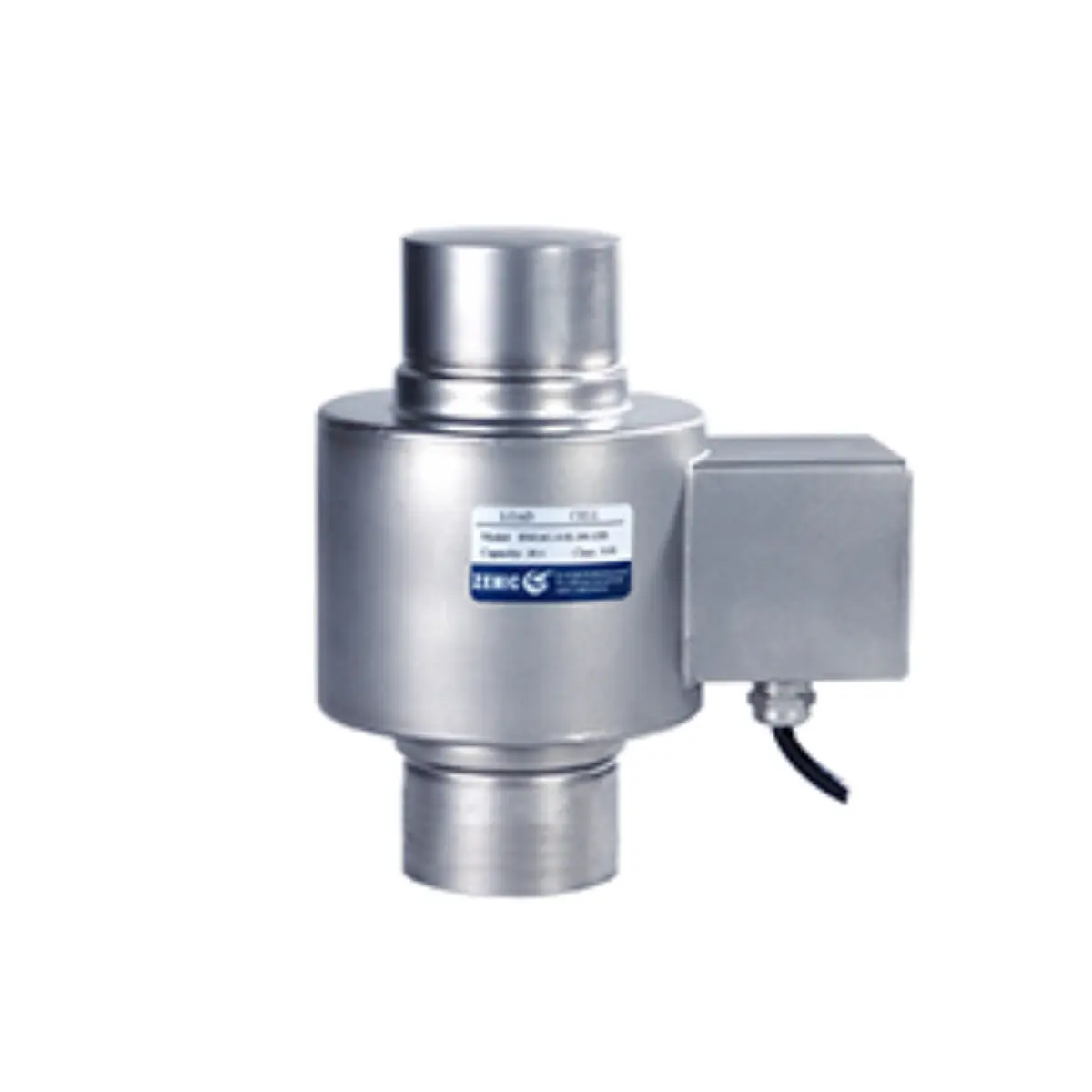

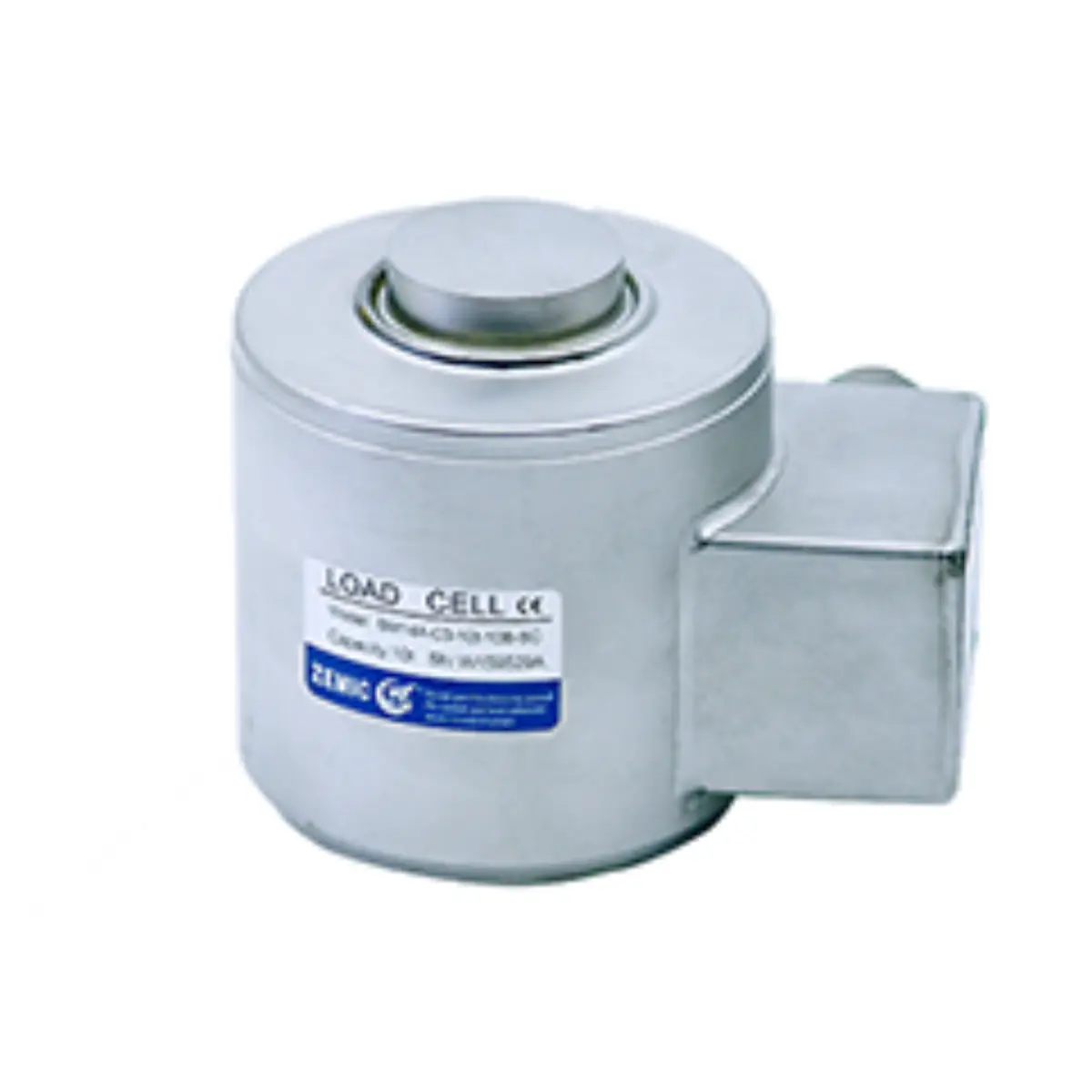

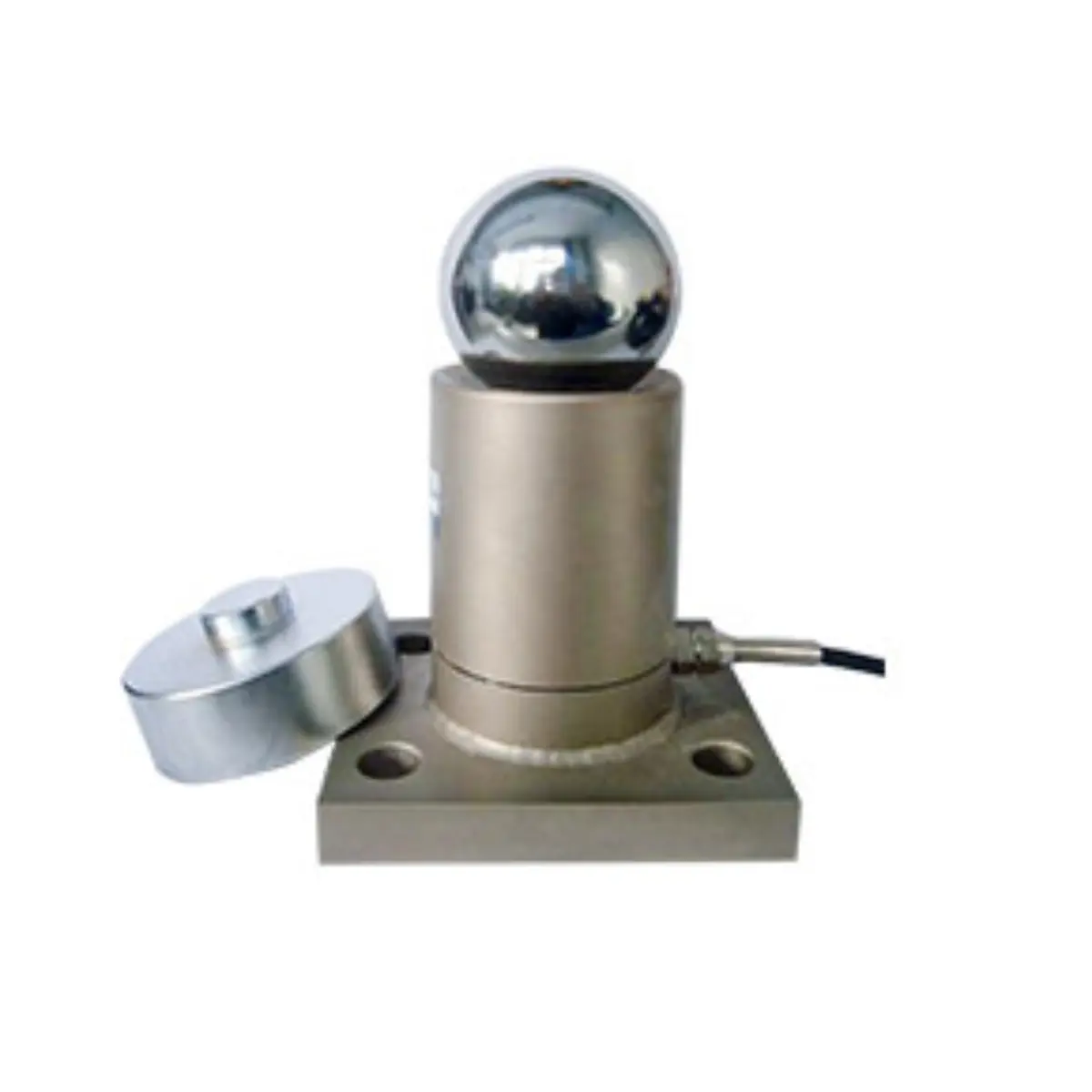

DIGITAL LOAD CELLS

As a leading load cell manufacturer and load cell supplier in UAE, we offer high-precision shear beam load cells designed for optimal performance in industrial applications. These robust load cell sensors are ideal for platform scales, tank and hopper weighing systems, and other heavy-duty weighing tasks. Engineered for durability and accuracy, our shear beam load cells ensure reliable weight measurement, even in challenging environments. Trust our expertise in providing top-quality load cell solutions to enhance your operational efficiency and accuracy.
